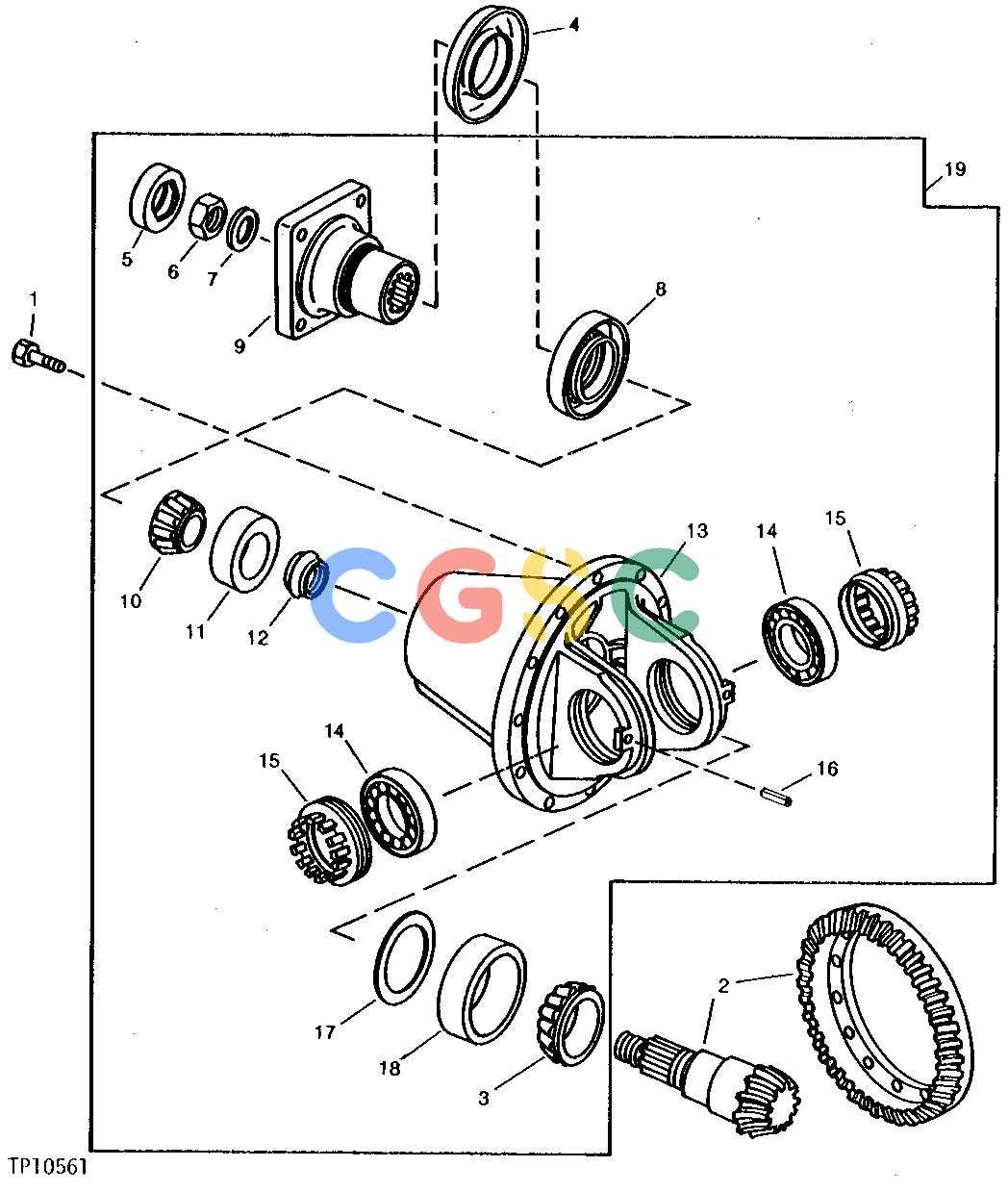

约翰迪尔零件查询410B - BACKHOE, LOADER AXLE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) [01B21]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
132 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7662
|
[12] |
Cap Screw
|
|
| 2. |
AT76046
|
[1] |
Bevel Gear Drive
|
|
| 3. |
JD10094
|
[1] |
Bearing Cone
|
|
| 4. |
L35717
|
[1] |
Dust Shield
|
|
| 5. |
L35715
|
[1] |
Plate
|
|
| 6. |
14M7309
|
[1] |
Nut
|
|
| 7. |
L35714
|
[1] |
Washer
|
|
| 8. |
AL79797
|
[1] |
Seal
|
|
| 9. |
T77450
|
[1] |
Flange
|
|
| 10. |
AR94761
|
[1] |
Bearing Cone
|
|
| 11. |
JD8257
|
[1] |
Bearing Cup
|
|
| 12. |
L35712
|
[1] |
Bushing
|
|
| 13. |
L35711
|
[1] |
Cradle
|
|
| 14. |
JD37087
|
[2] |
Tapered Roller Bearing
|
|
| 15. |
L35713
|
[2] |
Nut
|
|
| 16. |
34M7041
|
[2] |
Spring Pin
|
|
| 17. |
L35707
|
[AR] |
Shim
|
|
| 17. |
L35708
|
[AR] |
Shim
|
|
| 17. |
L35709
|
[AR] |
Shim
|
|
| 17. |
L35710
|
[AR] |
Shim
|
|
| 18. |
JD8240
|
[1] |
Bearing Cup
|
|
| 19. |
........
|
[1] |
Planet Pinion Carrier
|
|
