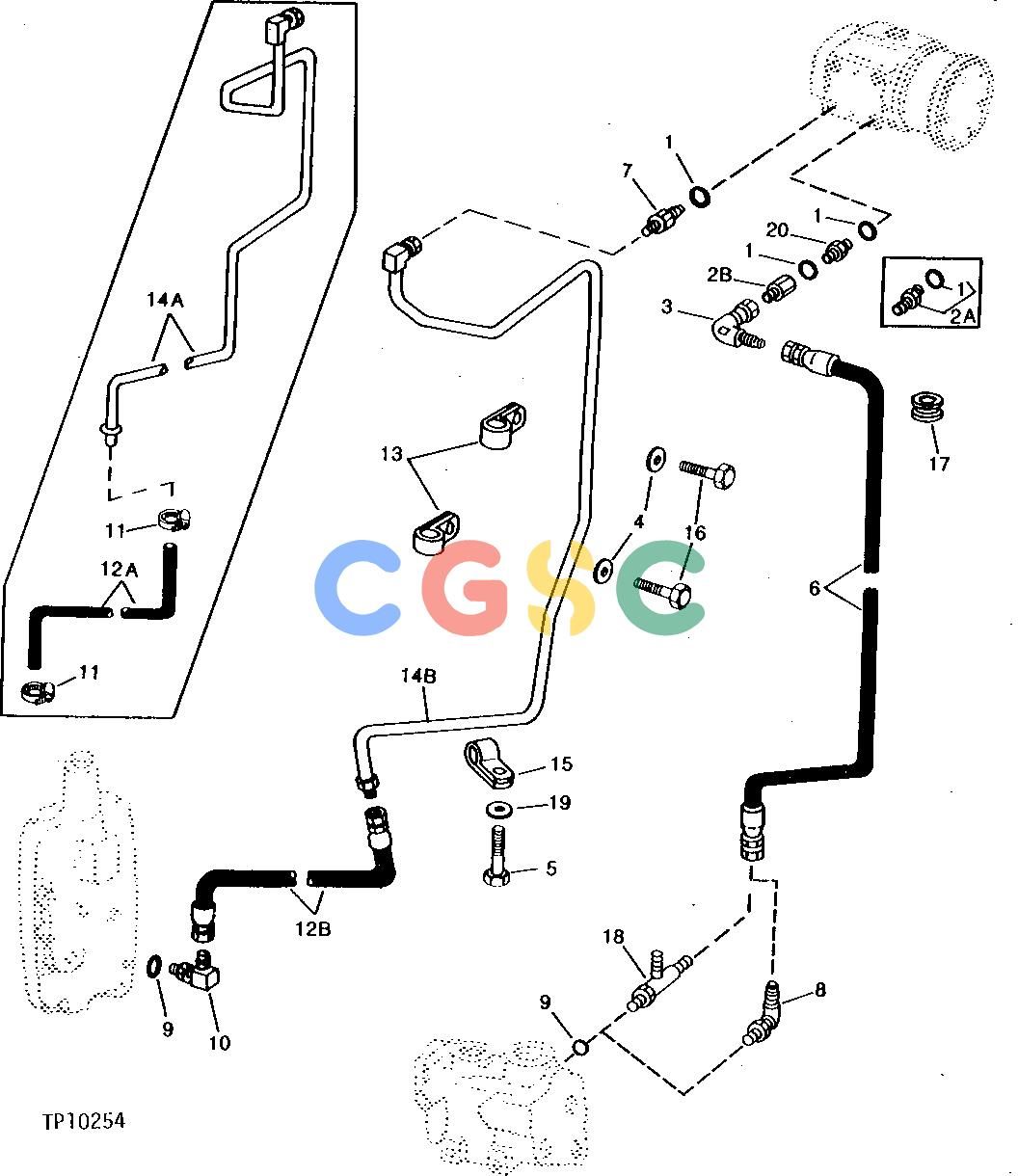

约翰迪尔零件查询410B - BACKHOE, LOADER STEERING VALVE TO PRIORITY VALVE AND TRANSMISSION OIL LINES [01I21]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 994 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[2]	O-Ring
1.	R26375	[3]	O-Ring
2A.	AT79012	[1]	Check Valve	(SUB FOR AT58695)
2B.	AT77488	[1]	Check Valve
3.	AE24616	[1]	Elbow Fitting	(SUB FOR AR67586)
3.	AT38127	[1]	Elbow Fitting
4.	24H1305	[2]	Washer	13/32" X 13/16" X 0.065"
5.	19H2021	[1]	Cap Screw	3/8" X 5/8"
6.	AT62085	[1]	Hydraulic Hose - Fabricate	9/16" X 1 067 MM (42") X 9/16"
7.	R27237	[1]	Fitting
8.	AT35121	[1]	Elbow Fitting	(WITHOUT MFWD)
9.	R26448	[2]	O-Ring
10.	AT68978	[1]	Elbow Fitting	(SUB AT51103, AT75994 AND AT35120)
10.	AT35120	[1]	Elbow Fitting
11.	AR21837	[2]	Clamp
12A.	T67708	[1]	Hydraulic Hose	(SUB AT51103, AT35120 AND AT75994)
12B.	AT51103	[1]	Hydraulic Hose - Fabricate	3/4" X 889 MM (35") X 3/4", (SUB FOR AT66579, THIS APPLICATION)
13.	H75541	[2]	Clamp	(SUB FOR R34557)
14A.	AT69903	[1]	Oil Line	(SUB AT51103, AT35120 AND AT75994)
14B.	AT75994	[1]	Line	(SUB FOR AT75996)
15.	H86139	[1]	Clip
16.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
17.	T28741	[1]	Grommet
18.	AT37518	[1]	Tee Fitting	(WITH MFWD)
19.	24H1304	[1]	Washer	13/32" X 23/32" X 0.120"
20.	R63922	[1]	Fitting
