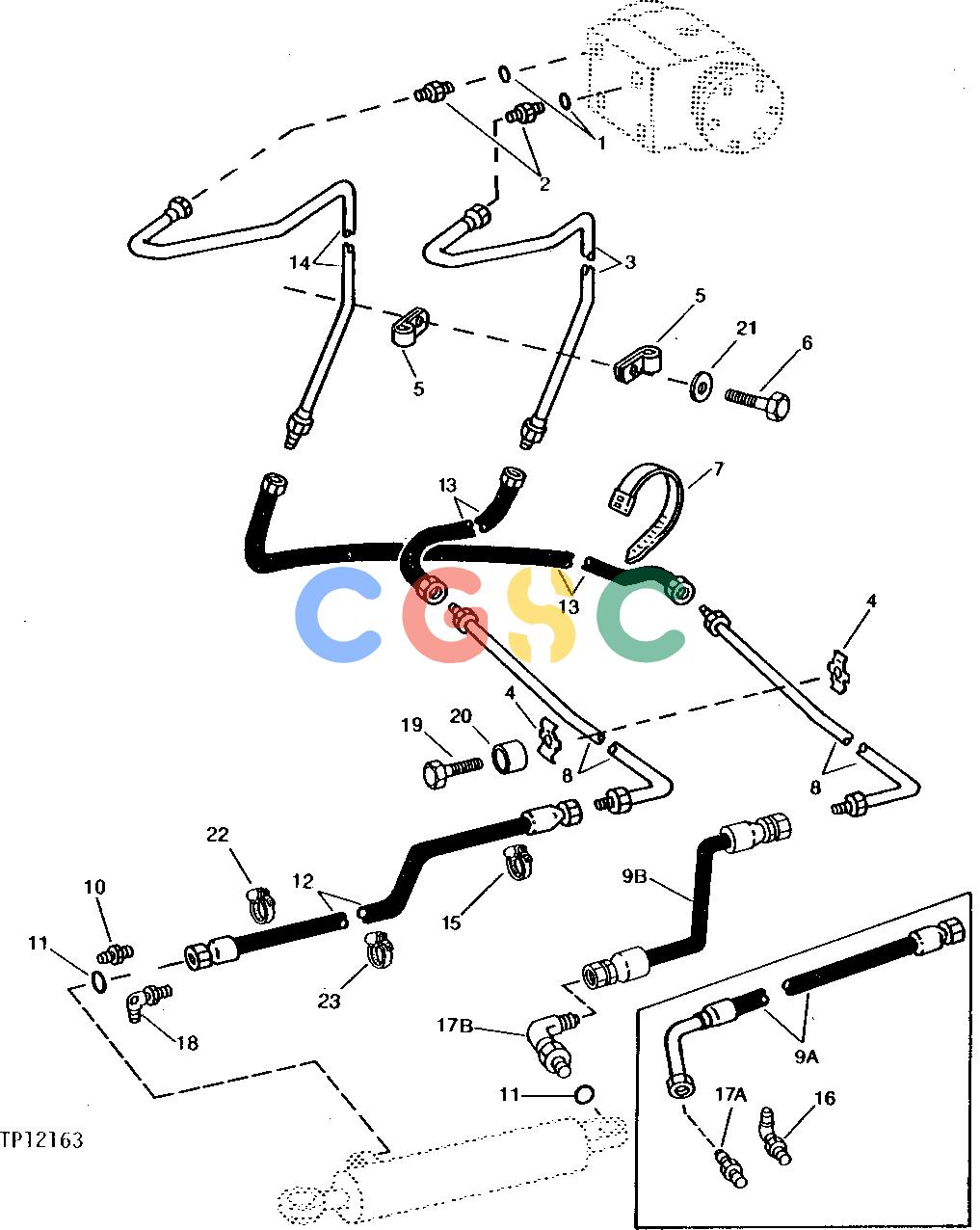

约翰迪尔零件查询410B - BACKHOE, LOADER STEERING VALVE TO CYLINDER OIL LINES [01I23]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 143 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[2]	O-Ring
2.	R36426	[2]	Fitting
3.	AT67069	[1]	Line
4.	R42009	[6]	Clamp
5.	T13814	[4]	Clamp	(SUB FOR T38545, THIS APPLICATION)
6.	19H1648	[2]	Cap Screw	3/8" X 3/4"
7.	R44302	[1]	Tie Band
8.	AT75376	[2]	Oil Line	(SUB FOR AT67066)
9A.	AT67065	[1]	Hydraulic Hose - Fabricate	9/16" X 508 MM (20") X 9/16", (SUB AT80439 AND AT35121)
9B.	AT80439	[1]	Hydraulic Hose - Fabricate	9/16" X 494 MM (19-1/2") X 9/16"
10.	R27212	[1]	Fitting	(USE WITHOUT MFWD)
11.	R26448	[2]	O-Ring
12.	AT67064	[1]	Hydraulic Hose - Fabricate	9/16" X 750 MM (29-1/2") X 9/16", (USE WITHOUT MFWD)
12.	AT48433	[1]	Hydraulic Hose - Fabricate	9/16" X 838 MM (33") X 9/16", (USE WITH MFWD)
13.	AT64907	[2]	Hydraulic Hose - Fabricate	9/16" X 1 016 MM (40") X 9/16"
14.	AT67070	[1]	Line
15.	AR21837	[2]	Clamp
16.	AT38033	[1]	Elbow Fitting	45° (USE WITHOUT MFWD) (SUB R27212, THIS APPLICATION)
17A.	R27212	[1]	Fitting	(USE WITH MFWD)
17B.	AT35121	[2]	Elbow Fitting	(USE WITH AND WITHOUT MFWD)
18.	AT35121	[1]	Elbow Fitting	90° (USE WITH MFWD)
19.	19H2676	[3]	Cap Screw	3/8" X 1"
20.	28H856	[3]	Washer	0.423" X 0.675" X 3/16"
21.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065"
22.	AR21999	[1]	Hose Clamp
23.	AR21839	[1]	Clamp
