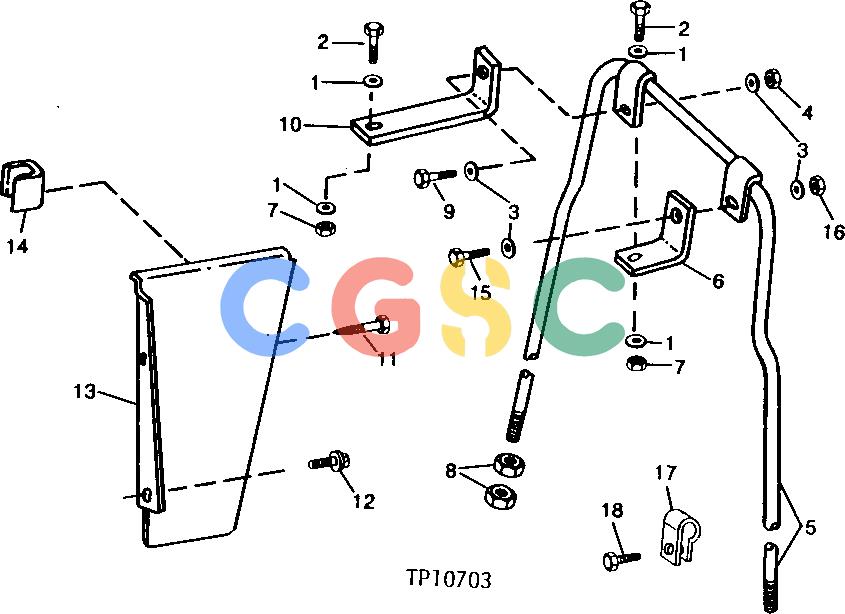

约翰迪尔零件查询410B - BACKHOE, LOADER LEFT-HAND COWL SUPPORT AND COVER [02G21]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
24M7296
|
[4] |
Washer
|
|
| 2. |
19M7402
|
[2] |
Cap Screw
|
|
| 3. |
24M7296
|
[4] |
Washer
|
|
| 4. |
14M7274
|
[1] |
Nut
|
|
| 5. |
AT66621
|
[1] |
Support
|
|
| 6. |
T69616
|
[1] |
Angle
|
|
| 7. |
14M7274
|
[2] |
Nut
|
|
| 8. |
T69620
|
[4] |
Nut
|
|
| 9. |
19M7162
|
[1] |
Cap Screw
|
|
| 10. |
T69615
|
[1] |
Angle
|
|
| 11. |
37H51
|
[2] |
Screw
|
|
| 12. |
19M7865
|
[2] |
Screw
|
|
| 13. |
AT101277
|
[1] |
Cover
|
|
| 14. |
T70573
|
[2] |
Clip
|
|
| 15. |
19M7402
|
[1] |
Cap Screw
|
|
| 16. |
14M7298
|
[1] |
Flange Nut
|
|
| 17. |
AH77714
|
[1] |
Clip
|
|
| 18. |
19M7866
|
[1] |
Screw
|
|
