约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC PUMP - MODEL GB1 50 CM3 (3 IN.3) [02H10]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 660 次

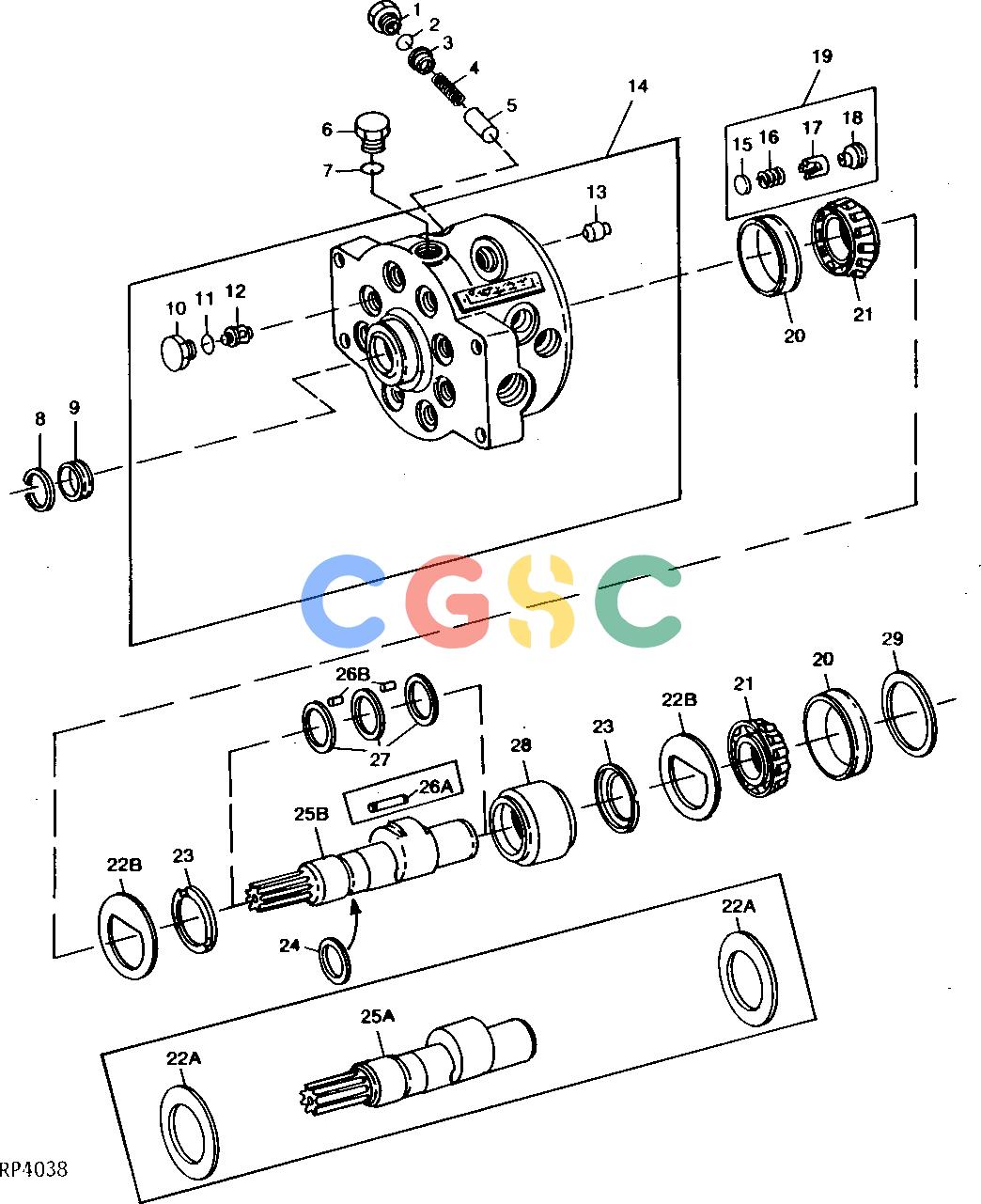

Pos.	Part No	Qty	Parts name	Comments
1.	R45438	[8]	Fitting
2.	R56463	[8]	O-Ring
3.	AR101236	[1]	Shield	(SET OF 8)
4.	AR76762	[1]	Spring	(SET OF 8)
5.	R27150	[8]	Piston
6.	R27474	[1]	Drain Plug
7.	R26906	[1]	O-Ring
8.	R26137	[1]	Snap Ring
9.	RE28790	[1]	Seal	(SUB FOR AR52224)
10.	R81825	[8]	Drain Plug
11.	R27149	[8]	O-Ring
12.	AR53301	[8]	Valve	(INLET)
13.	R105583	[8]	Valve Seat Insert
14.	RE11805	[1]	Housing	(MODEL PH1) (MARKED R71988)
15.	R49297	[8]	Disk
16.	R39228	[8]	Spring
17.	R48738	[8]	Guide
18.	R83508	[8]	Stop	(SUB FOR R72886)
19.	RE23382	[8]	Valve	(OUTLET) (SUB FOR AR96613)
20.	JD8223	[2]	Bearing Cup
21.	JD8192	[2]	Bearing Cone
22A.	R77903	[2]	Washer	(SUB FOR R45425)
22B.	R79151	[2]	Lock Washer	(USE WITH R79153)
23.	R72507	[2]	Thrust Washer
24.	R77611	[1]	Sealing Washer	(SEALING) (SUB FOR R68252 OR RE11777)
25A.	R76725	[1]	Shaft	(SUB R79153) (ALSO ORDER (2) R79151)
25B.	R79153	[1]	Shaft
26A.	R45422	[25]	Needle Roller	(SUB (50) R116713) (ALSO ORDER (3) R85557)
26B.	R116713	[50]	Needle Roller	(SUB FOR R85558)
27.	R85557	[3]	Washer
28.	R80558	[1]	Bearing Race	(SUB FOR R72506)
29.	R27478	[AR]	Shim	0.15MM (.006")
29.	R27479	[AR]	Shim	0.25MM (.010")
...	AR96175	[1]	Hydraulic Pump
