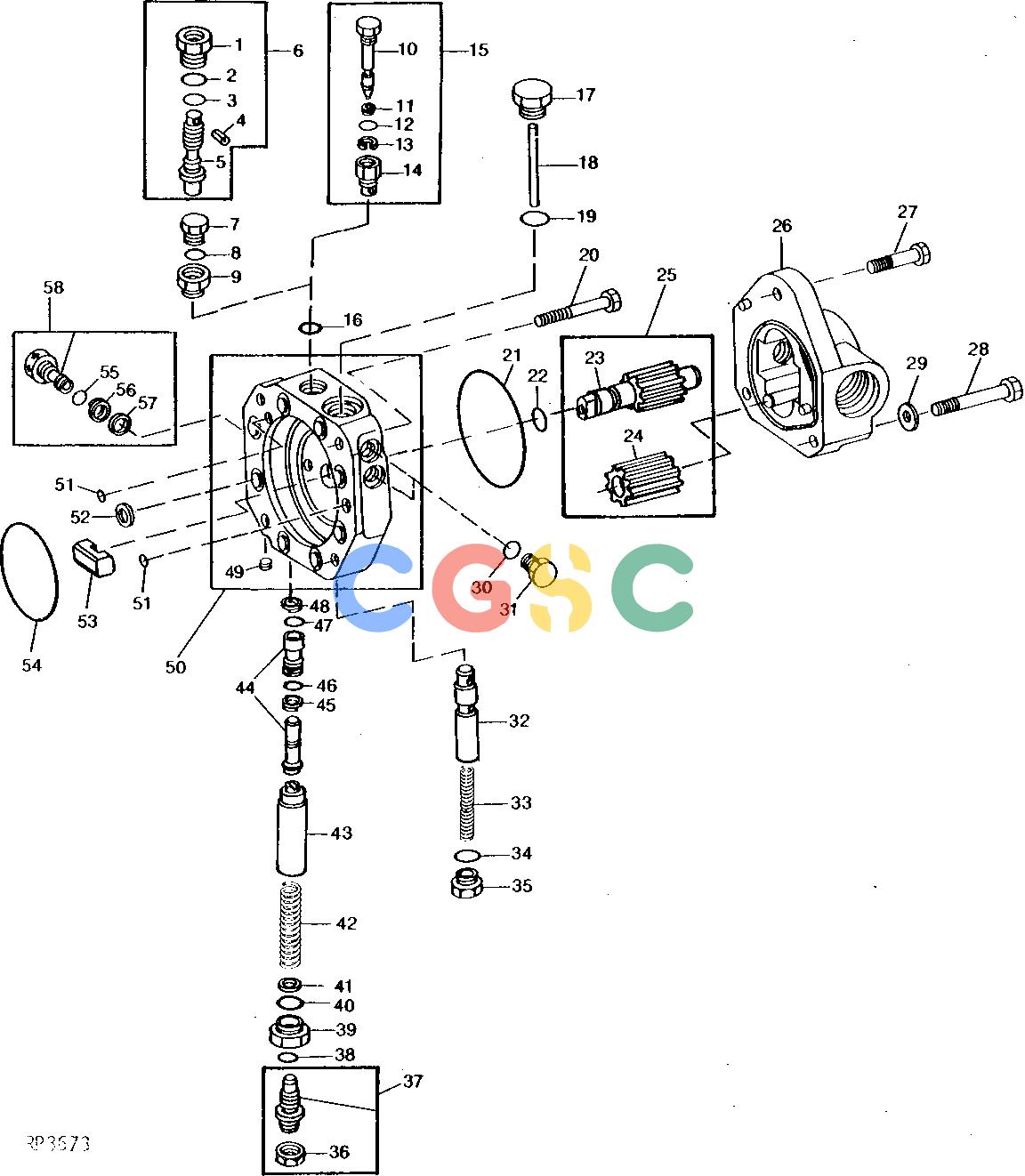

约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC PUMP STROKE CONTROL VALVE AND CHARGE PUMP 50 CM3 (3 IN.3) [02H12]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC PUMP STROKE CONTROL VALVE AND CHARGE PUMP 50 CM3 (3 IN.3) [02H12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 161 次

Pos.	Part No	Qty	Parts name	Comments
1.	R27475	[1]	Fitting
2.	R26448	[1]	O-Ring
3.	A4365R	[1]	O-Ring
4.	34H254	[1]	Spring Pin	1/8" X 1-1/2"
5.	R75879	[1]	Screw
6.	AR96625	[1]	Field Installation Kit	(A) (MANUAL DESTROKE)
7.	R27218	[1]	Fitting Plug	(LESS MANUAL DESTROKE)
8.	R26448	[1]	O-Ring	(LESS MANUAL DESTROKE)
9.	R70617	[1]	Pipe Plug
10.	R79266	[1]	Screw
11.	R36358	[1]	Back-Up Ring
12.	R34802	[1]	O-Ring
13.	R79268	[1]	Snap Ring
14.	R79267	[1]	Plug
15.	RE13271	[1]	Screw	(A) (MANUAL DESTROKE)
16.	R26906	[1]	O-Ring
17.	R75642	[1]	Plug
18.	R75564	[1]	Pin
19.	R56751	[1]	O-Ring
20.	19H1868	[2]	Cap Screw	1/2" X 3-3/4"
21.	P46129	[1]	O-Ring	(USE WITH R71889)
21.	U10746	[1]	O-Ring	(USE WITH R81313)
22.	R76721	[1]	Washer
23.	AR104658	[1]	Shaft	(SUB RE13964)
23.	RE13964	[1]	Shaft
24.	AR94629	[1]	Gear	(SUB RE13965)
24.	RE13965	[1]	Gear
25.	RE17533	[1]	Kit	(NLA)
26.	AR102679	[1]	Housing	(MARKED R71889) (SUB RE19455)
26.	RE19455	[1]	Housing	(MARKED R81313)
27.	19H3579	[1]	Cap Screw	1/2" X 1-3/8"
28.	19H3136	[2]	Cap Screw	1/2" X 5-3/4"
29.	T20168	[2]	Washer
30.	R26448	[2]	O-Ring
31.	R75376	[2]	Plug
32.	R70867	[1]	Valve
33.	R70868	[1]	Spring
34.	R26375	[1]	O-Ring
35.	R73736	[1]	Fitting Plug
36.	14H1021	[1]	Nut	7/16"
37.	AR51929	[1]	Screw
38.	R28782	[1]	O-Ring
39.	R28781	[1]	Fitting
40.	U12547	[1]	O-Ring	(SUB FOR F3171R)
41.	R42260	[1]	Washer
42.	R31781	[1]	Spring
43.	R71321	[1]	Guide
44.	RE10712	[1]	Control Valve
45.	R41057	[1]	Back-Up Ring
46.	R27166	[1]	O-Ring
47.	R27564	[1]	O-Ring
48.	R75938	[1]	Thrust Washer
49.	15H560	[1]	Pipe Plug	1/16"
50.	AR102181	[1]	Housing	(MARKED R76726) (SUB FOR RE13613)
51.	R56755	[2]	Washer
52.	R107239	[8]	Packing	(SUB FOR (8) R69279)
53.	R76723	[1]	Key
54.	R56757	[1]	O-Ring
55.	R26375	[1]	O-Ring
56.	T40308	[1]	O-Ring
57.	T57374	[1]	Back-Up Ring
58.	AR90378	[1]	Plug	(LESS ELECTRIC DESTROKE SOLENOID)
