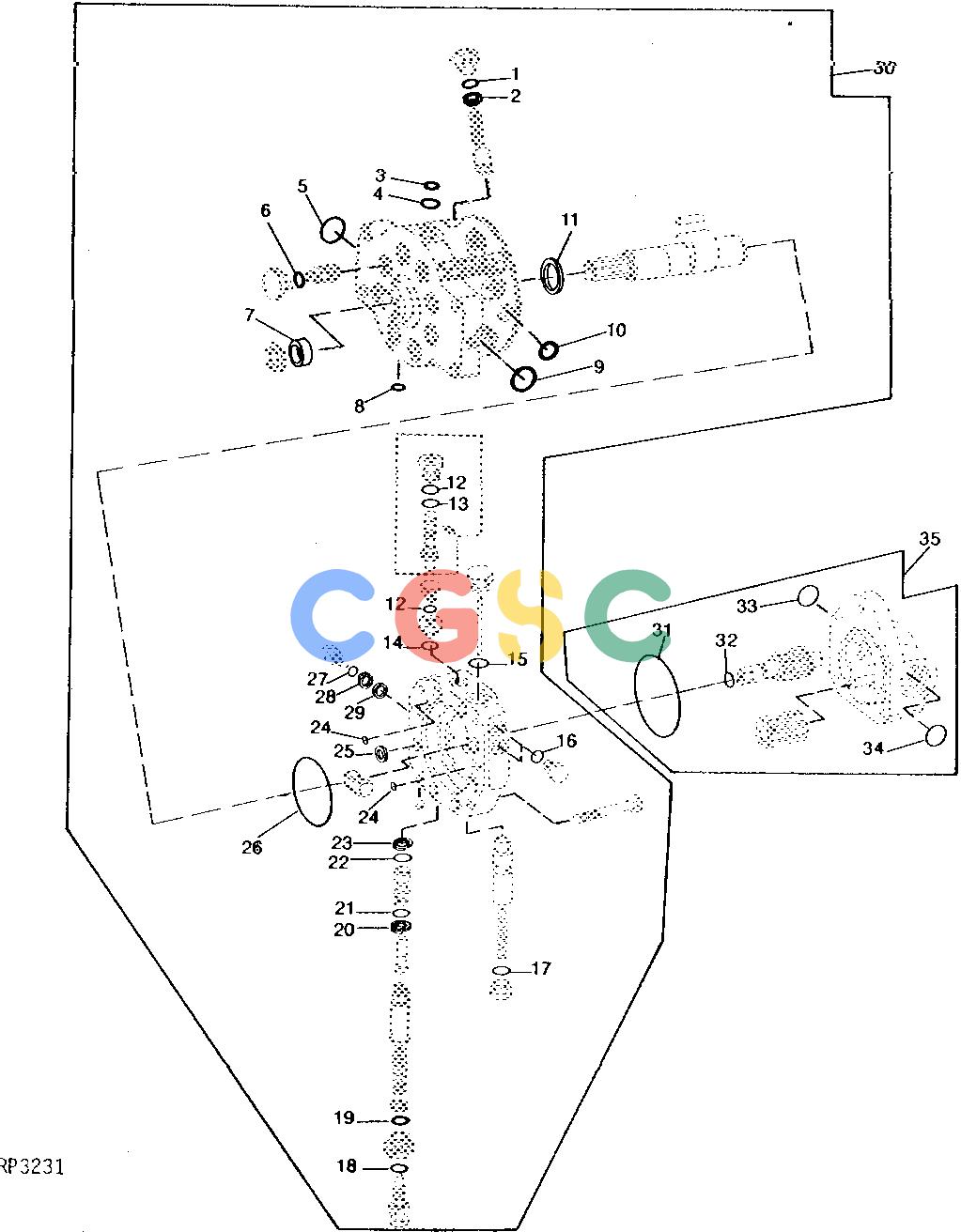

约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC PUMP AND CHARGE PUMP OVERHAUL KIT 50 CM3 (3 IN.3) [02H14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 912 次

Pos.	Part No	Qty	Parts name	Comments
1.	R56463	[8]	O-Ring
2.	AR101236	[1]	Shield	(SET OF 8)
3.	R27928	[1]	O-Ring	(A) (TOP)
4.	P47908	[1]	O-Ring	(A) (BOTTOM)
5.	R29936	[1]	O-Ring	(A)
5.	R56751	[1]	O-Ring	(A)
6.	R27149	[8]	O-Ring
7.	RE28790	[1]	Seal
8.	R26287	[1]	O-Ring
9.	U13639	[1]	O-Ring	(A)
9.	R56751	[1]	O-Ring	(A)
9.	R29936	[1]	O-Ring	(A)
10.	R56751	[1]	O-Ring	(A)
10.	R26906	[1]	O-Ring	(A)
11.	R77611	[1]	Sealing Washer	(SEALING)
12.	R26448	[1]	O-Ring
13.	A4365R	[1]	O-Ring
14.	R26906	[1]	O-Ring
15.	R56751	[1]	O-Ring
16.	R26448	[2]	O-Ring	(A)
16.	R26287	[2]	O-Ring	(A)
17.	R26375	[1]	O-Ring
18.	R28782	[1]	O-Ring
19.	R56751	[1]	O-Ring
20.	R41057	[1]	Back-Up Ring
21.	R27166	[1]	O-Ring
22.	R27564	[1]	O-Ring
23.	R75938	[1]	Thrust Washer
24.	R56755	[2]	Washer
25.	R107239	[8]	Packing	(SUB FOR (8) R69279)
26.	R56757	[1]	O-Ring
27.	R26375	[1]	O-Ring	(A)
28.	T40308	[1]	O-Ring	(A)
29.	T57374	[1]	Back-Up Ring	(A)
30.	RE29107	[1]	Kit	(SUB FOR AR96321)
31.	P46129	[1]	O-Ring	(A)
31.	U10746	[1]	O-Ring	(A)
32.	R76721	[1]	Washer
33.	R29936	[1]	O-Ring
34.	U13639	[1]	O-Ring
35.	AR98645	[1]	Kit	(NLA)(ORDER UNIT PARTS)
