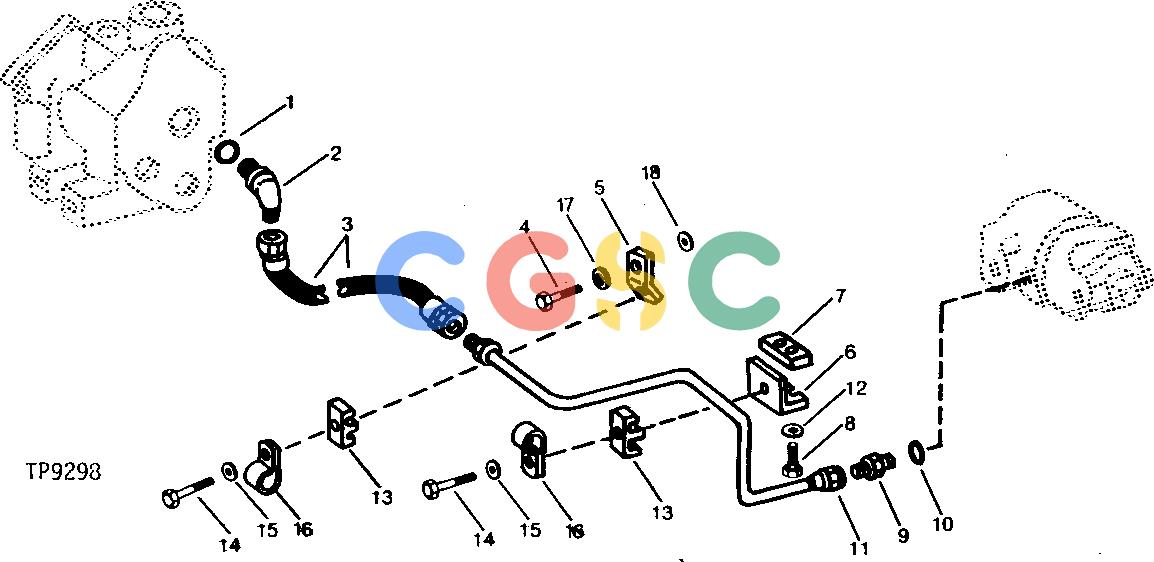

约翰迪尔零件查询410B - BACKHOE, LOADER HYDRAULIC PUMP TO PRIORITY VALVE OIL LINE (SERIAL NO. -718115) [02H20]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R29936
|
[1] |
O-Ring
|
|
| 2. |
AU43288
|
[1] |
Elbow Fitting
|
|
| 3. |
AT65501
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 4. |
19H2994
|
[1] |
Cap Screw
|
|
| 5. |
AT75557
|
[1] |
Bracket
|
|
| 6. |
AT75558
|
[1] |
Bracket
|
|
| 7. |
T68526
|
[1] |
Bar
|
|
| 8. |
19H2633
|
[2] |
Cap Screw
|
|
| 9. |
T71027
|
[1] |
Adapter Fitting
|
|
| 10. |
U12547
|
[1] |
O-Ring
|
|
| 11. |
AT75555
|
[1] |
Oil Line
|
|
| 12. |
24M7233
|
[2] |
Washer
|
|
| 13. |
T77025
|
[2] |
Clamp
|
|
| 14. |
19M7753
|
[4] |
Cap Screw
|
|
| 15. |
T21242
|
[2] |
Washer
|
|
| 16. |
T28949
|
[2] |
Clamp
|
|
| 17. |
U41353
|
[1] |
Washer
|
|
| 18. |
24H1367
|
[1] |
Washer
|
|
