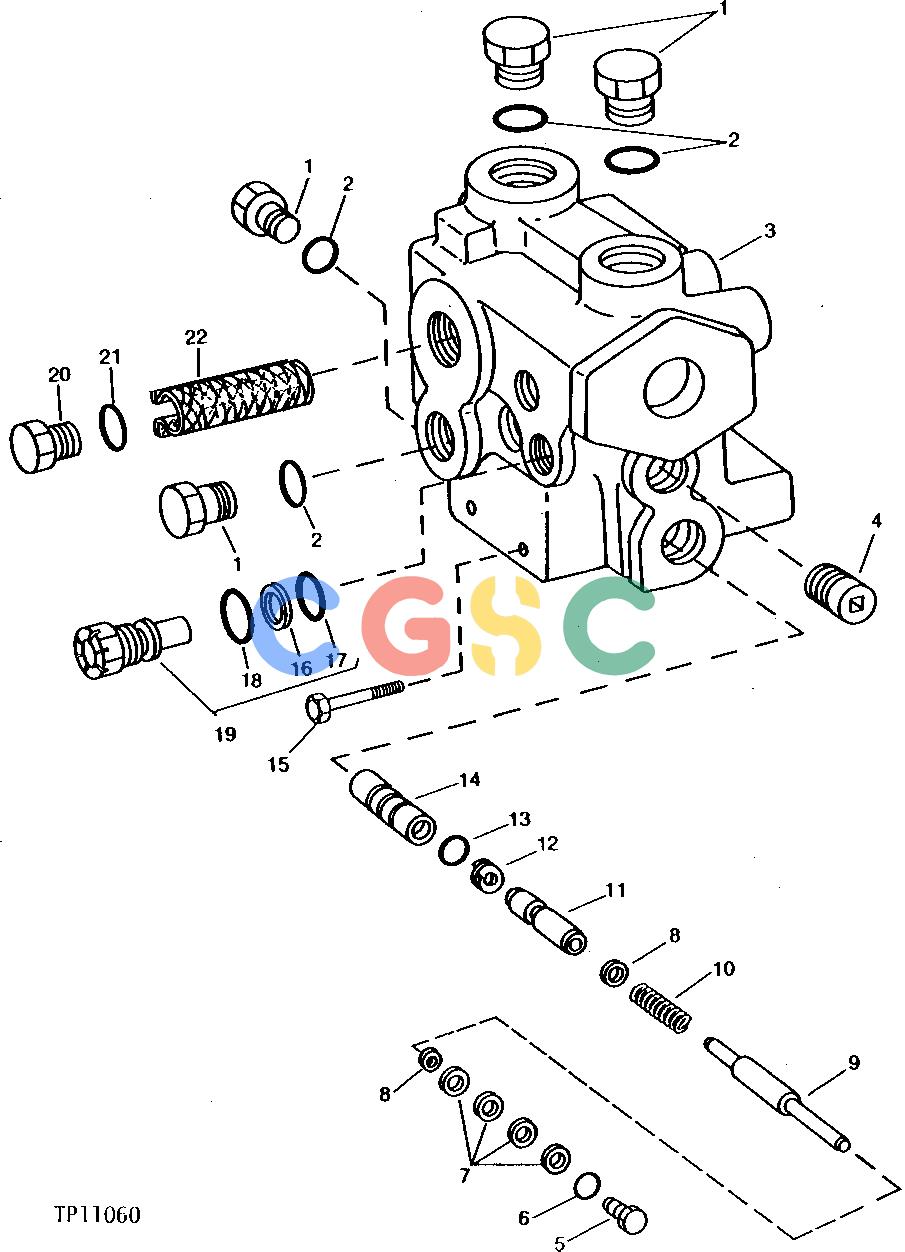

约翰迪尔零件查询410B - BACKHOE, LOADER PRIORITY VALVE [02H22]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R53066
|
[4] |
Fitting Plug
|
|
| 2. |
U17409
|
[4] |
O-Ring
|
|
| 3. |
T68948
|
[1] |
Housing
|
|
| 4. |
15H690
|
[1] |
Pipe Plug
|
|
| 5. |
T77073
|
[1] |
Fitting Plug
|
|
| 6. |
U12547
|
[1] |
O-Ring
|
|
| 7. |
R45189
|
[AR] |
Shim
|
|
| 8. |
R56397
|
[2] |
Washer
|
|
| 9. |
T77071
|
[1] |
Pin
|
|
| 10. |
T75431
|
[1] |
Compression Spring
|
|
| 11. |
T75161
|
[1] |
Valve Spool
|
|
| 12. |
T27963
|
[1] |
Back-Up Ring
|
|
| 13. |
T42789
|
[1] |
O-Ring
|
|
| 14. |
T75694
|
[1] |
Valve Spool
|
|
| 15. |
19M7728
|
[2] |
Cap Screw
|
|
| 16. |
T75972
|
[1] |
Back-Up Ring
|
|
| 17. |
T77072
|
[1] |
O-Ring
|
|
| 18. |
U15242
|
[1] |
O-Ring
|
|
| 19. |
AT43791
|
[1] |
Pressure Relief Valve
|
|
| 20. |
R39741
|
[1] |
Drain Plug
|
|
| 21. |
U13639
|
[1] |
O-Ring
|
|
| 22. |
AT66050
|
[1] |
Screen
|
|
