约翰迪尔零件查询410B - BACKHOE, LOADER OIL COOLER TO REVERSER HOUSING OIL LINES [02I02]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 821 次

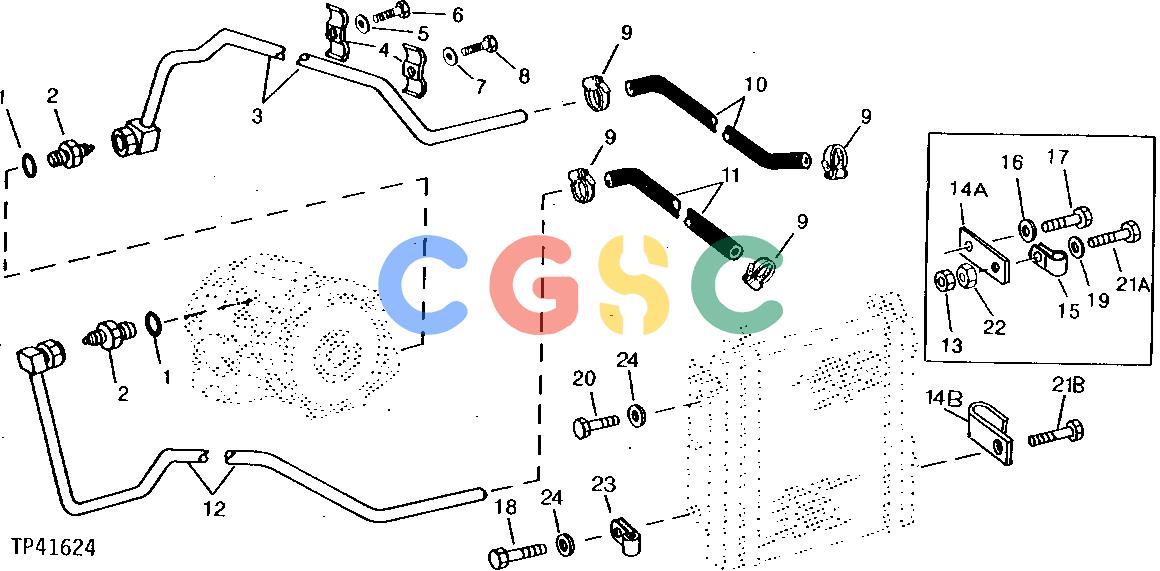

Pos.	Part No	Qty	Parts name	Comments
1.	U12547	[2]	O-Ring	(SUB FOR U12547, THIS APPLICATION)
2.	T75307	[2]	Adapter Fitting
3.	AT65658	[1]	Oil Line
4.	T68589	[2]	Clamp
5.	U41353	[1]	Washer
6.	19H1833	[1]	Cap Screw	5/8" X 1-1/4"
7.	24M7047	[1]	Washer	13 X 24 X 2.500 MM
8.	19M7753	[1]	Cap Screw	M12 X 70
9.	TY22464	[4]	Clamp	(SUB FOR AR21836)
10.	........	[1]	Hydraulic Hose	(SUB FOR T70900) (MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH)
11.	........	[1]	Hydraulic Hose	(SUB FOR T70901) (MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH)
11.	H77698	[AR]	Tie Band	(SUB FOR T44946)
12.	AT65657	[1]	Oil Line
13.	14M7274	[1]	Nut	M10, (USE WITH T46842)
14A.	........	[1]	Strap	(SUB FOR T35607) (SUB R73292) ( T46842 NO LONGER AVAILABLE)
14B.	R73292	[1]	Clamp	(SUB FOR T46842)
15.	T28949	[1]	Clamp	(USE WITH T46842)
16.	24M7028	[1]	Washer	10.500 X 20 X 2 MM, (USE WITH T46842)
17.	19M7550	[1]	Cap Screw	M10 X 35, (USE WITH T46842)
18.	19M7166	[1]	Cap Screw	M10 X 20
19.	24M7028	[1]	Washer	10.500 X 20 X 2 MM, (USE WITH T46842)
20.	19M7557	[4]	Cap Screw	M10 X 16
21A.	19M7662	[1]	Cap Screw	M10 X 30, (USE WITH T46842)
21B.	19M7166	[1]	Cap Screw	M10 X 20, (USE WITH R73292)
22.	28H1884	[1]	Spacer	(USE WITH T46842)
23.	T28949	[1]	Clamp
24.	24M7028	[5]	Washer	10.500 X 20 X 2 MM
