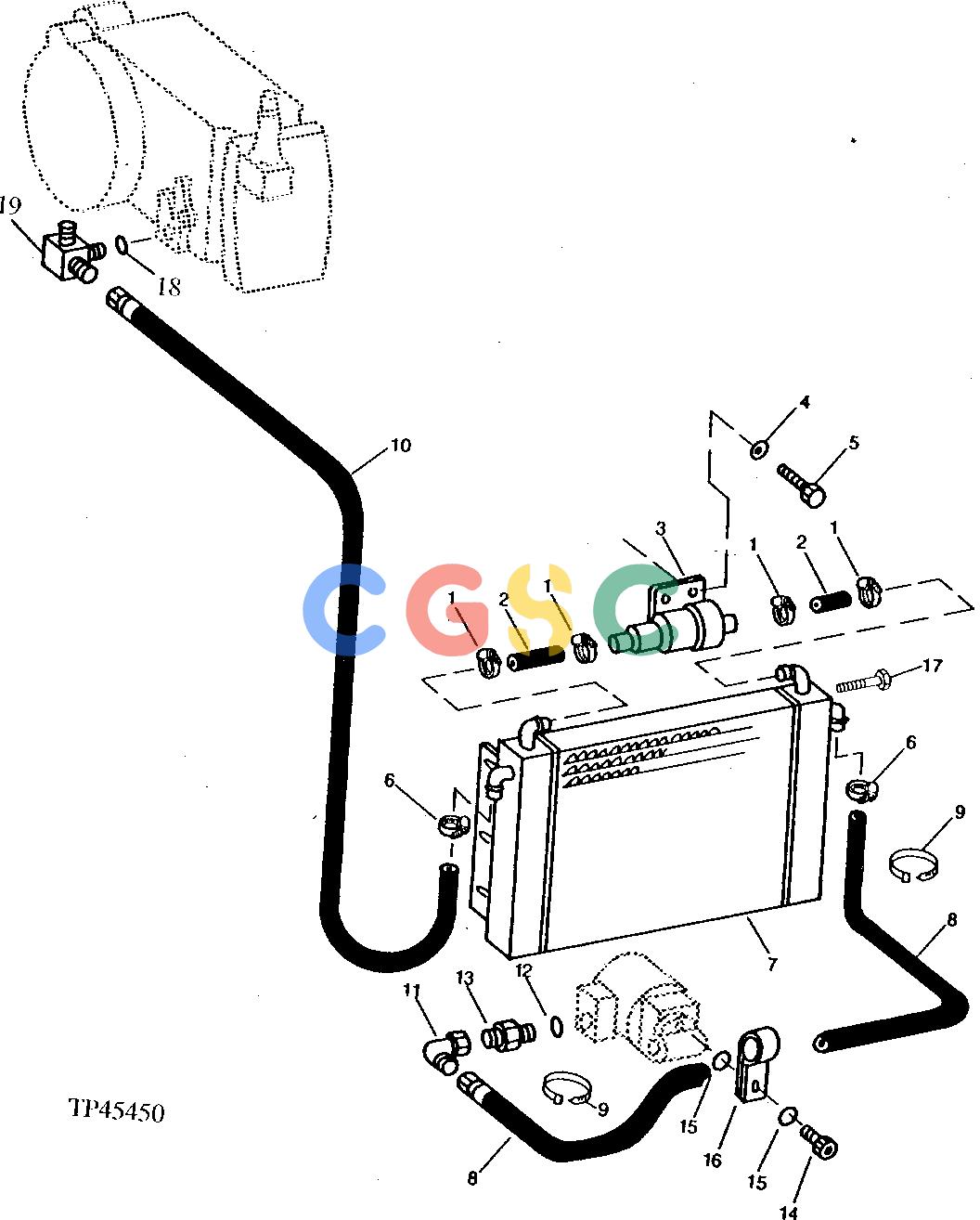

约翰迪尔零件查询410B - BACKHOE, LOADER TRANSMISSION OIL COOLER TO HYDRAULIC PUMP AND TRANSMISSION OIL LINES [02I03]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AR21839
|
[4] |
Clamp
|
|
| 2. |
........
|
[2] |
Hose
|
|
| 3. |
AR31547
|
[1] |
Valve
|
|
| 4. |
24H1685
|
[2] |
Washer
|
|
| 5. |
19M7881
|
[2] |
Screw
|
|
| 6. |
TY22464
|
[2] |
Clamp
|
|
| 7. |
AT100980
|
[1] |
Oil Cooler
|
|
| 7. |
T105890
|
[2] |
Bracket
|
|
| 7. |
AT78602
|
[1] |
Oil Cooler
|
|
| 8. |
AT69016
|
[1] |
Hydraulic Hose
|
|
| 9. |
H77698
|
[3] |
Tie Band
|
|
| 10. |
AT69017
|
[1] |
Hydraulic Hose
|
|
| 11. |
AH75164
|
[1] |
Elbow Fitting
|
|
| 12. |
R29936
|
[1] |
O-Ring
|
|
| 13. |
T48176
|
[1] |
Adapter Fitting
|
|
| 14. |
19H2550
|
[1] |
Cap Screw
|
|
| 15. |
T21242
|
[2] |
Washer
|
|
| 16. |
T28949
|
[1] |
Clamp
|
|
| 17. |
19M7557
|
[4] |
Cap Screw
|
|
| 18. |
R26448
|
[1] |
O-Ring
|
|
| 19. |
AT74103
|
[1] |
Tee Fitting
|
|
