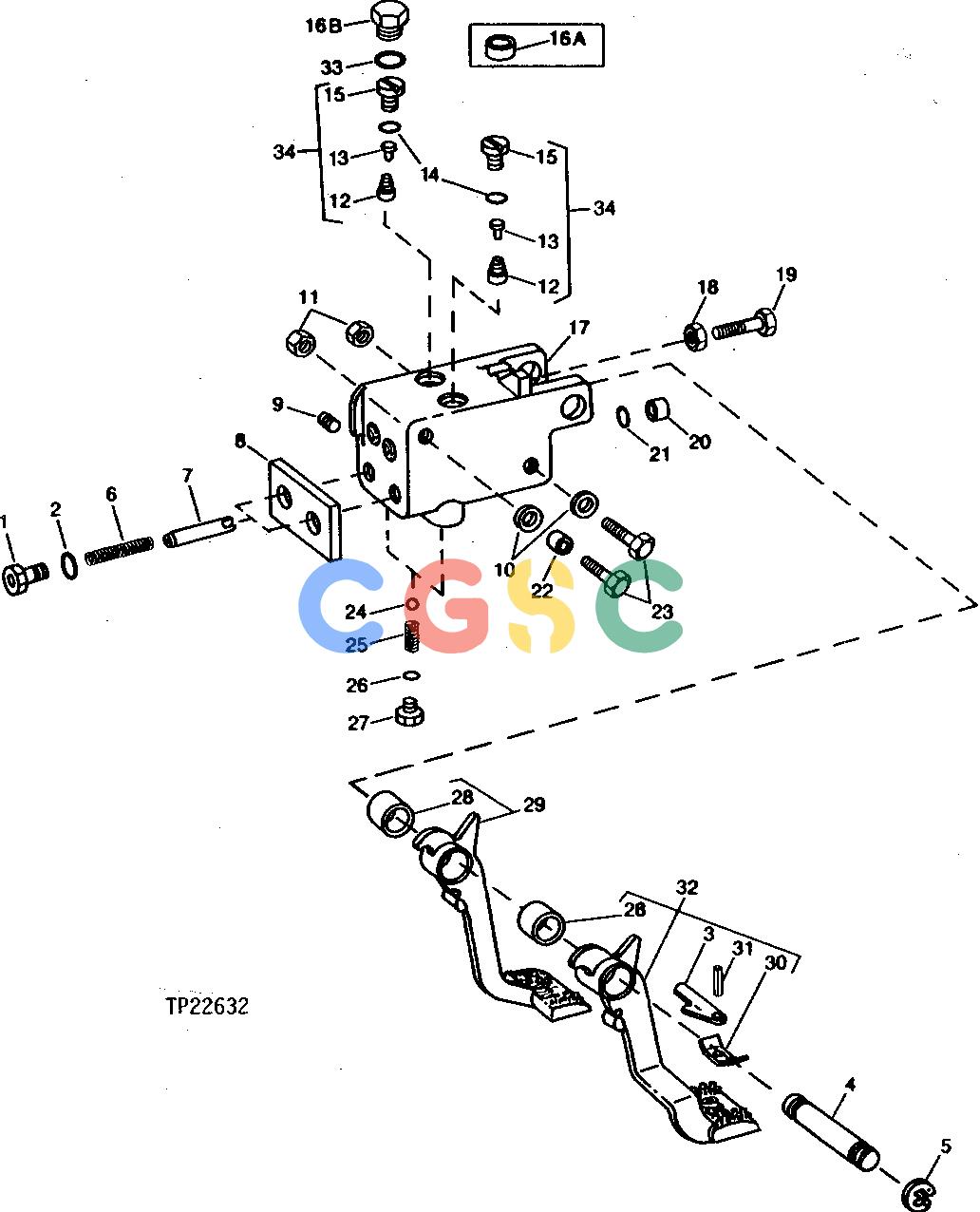

约翰迪尔零件查询410C - BACKHOE, LOADER BRAKE VALVE AND PEDALS [02H08]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 830 次

Pos.	Part No	Qty	Parts name	Comments
1.	R50110	[2]	Fitting
2.	U12547	[2]	O-Ring
3.	R50879	[1]	Arm
4.	T49189	[1]	Pin Fastener
5.	F2863R	[2]	Snap Ring
6.	T124602	[2]	Spring	(SUB FOR T71637)
7.	........	[2]	Piston	(A) T127125 NO LONGER AVAILABLE, (SUB FOR T79713) (SUB AT184432)
8.	T69427	[1]	Strap
9.	15H560	[1]	Pipe Plug	1/16"
10.	24M7047	[2]	Washer	13 X 24 X 2.500 MM
11.	N162646	[2]	Nut
12.	........	[2]	Spring	(A)
13.	........	[2]	Valve	(A)
14.	R26906	[2]	O-Ring	(A)
15.	........	[2]	Seat	(A)
16A.	R35286	[1]	Plug
16B.	R36636	[1]	Fitting Plug	(SUB FOR T21806, THIS APPLICATION)
17.	T68552	[1]	Housing	(SUB AT129218, R29936 AND R36636)
17.	T113131	[1]	Housing	(SUB AT129218)
17.	AT129218	[1]	Housing	(WITH ORIFICE) (MARKED T113131)
17.	T122169	[AR]	Orifice	(NOT ILLUSTRATED) (USE AFTER AT129218 HAS BEEN INSTALLED)
18.	14H342	[2]	Nut	3/8"
19.	19H3483	[2]	Cap Screw	3/8" X 1-1/8", (SUB FOR L32504, THIS APPLICATION)
20.	T22101	[2]	Seal	(A)
21.	T163092	[2]	Seal	(A) (SUB FOR R495R, THIS APPLICATION)
22.	28H1597	[1]	Washer	35/64" X 3/8"
23.	19H3599	[2]	Cap Screw	1/2" X 5-1/4"
24.	D2361R	[2]	Ball
25.	T21816	[2]	Compression Spring
26.	R26375	[2]	O-Ring
27.	R39112	[2]	Fitting
28.	B177R	[2]	Bushing
29.	AT65608	[1]	Pedal	(MARKED T68553)
30.	R50034	[1]	Leaf Spring
31.	34H312	[1]	Spring Pin	1/4" X 1"
32.	AT65609	[1]	Pedal	(MARKED T68554)
33.	R29936	[1]	O-Ring
34.	........	[2]	Check Valve	(A) AT135655 NO LONGER AVAILABLE, (SUB FOR AT129106) (SUB AT184432)
