约翰迪尔零件查询410C - BACKHOE, LOADER BRAKE VALVE AND PEDALS [02H10]EPC John Deere online_约翰迪尔John Deere_工程机械

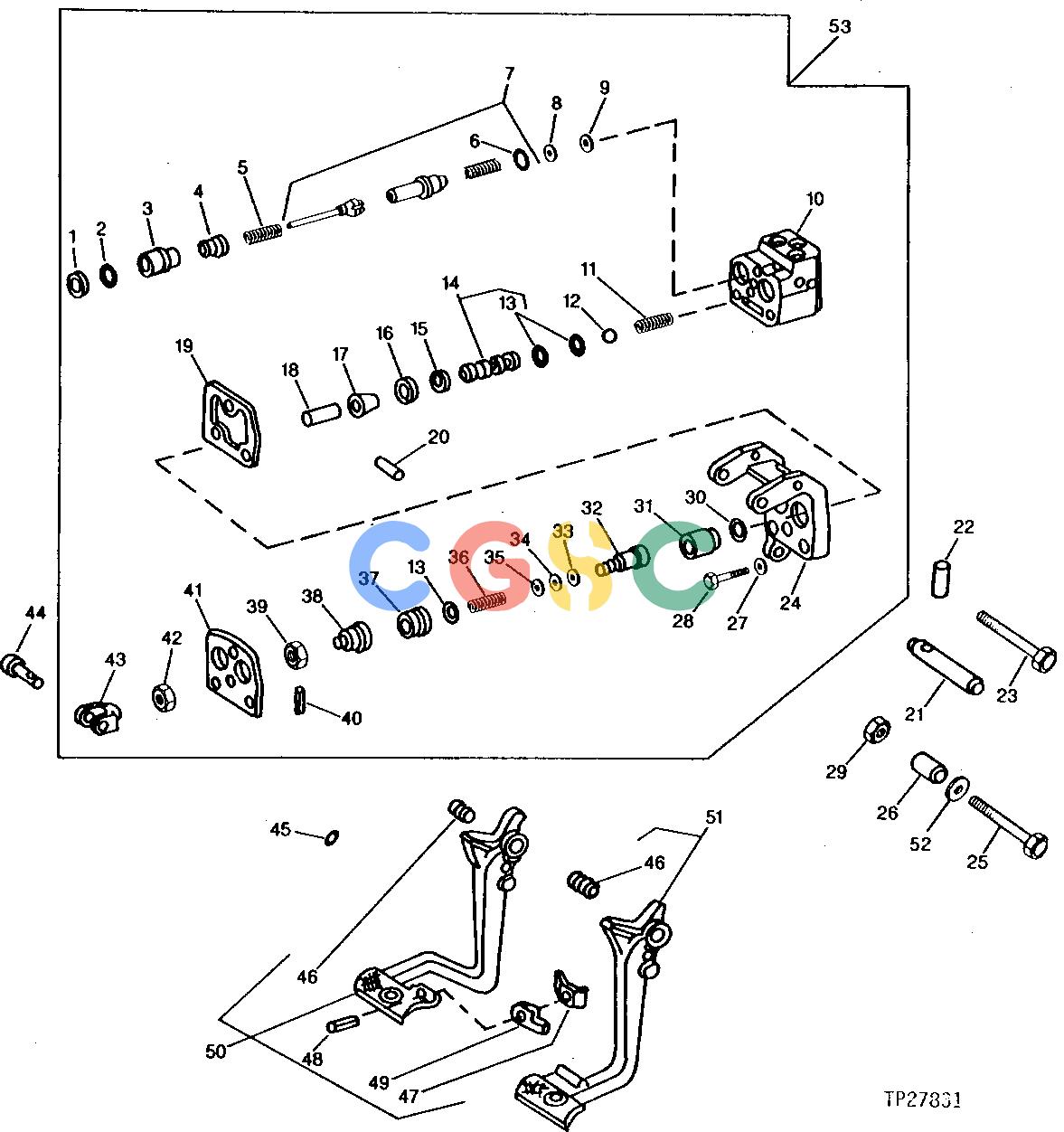

约翰迪尔零件查询410C - BACKHOE, LOADER BRAKE VALVE AND PEDALS [02H10]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 342 次

Pos.	Part No	Qty	Parts name	Comments
1.	R32092	[2]	Washer	(USE WITH R32091)
1.	R26370	[2]	Washer	(USE WITH R31461)
2.	R459R	[2]	O-Ring	(USE WITH R32091)
2.	F3353R	[2]	O-Ring	(USE WITH R31461)
3.	R32091	[2]	Piston
3.	R31461	[2]	Piston
4.	R32090	[2]	Plunger	(0.560" 14.22MM DIAMETER) (USE WITH R32091)
4.	R41201	[2]	Plunger	(0.373" 9.47MM DIAMETER) (USE WITH R31461)
5.	R26369	[2]	Spring	(SUB FOR H75536)
6.	R26286	[2]	O-Ring	(BRAKE INLET WITH NIPPLE)
7.	AR52498	[2]	Valve
8.	R27137	[2]	Back-Up Ring
9.	R27149	[2]	O-Ring
10.	........	[1]	Housing	(MARKED R71335) (INCLUDES H871 AND (3) 15H560) ( AR93838 NO LONGER AVAILABLE)
11.	R11066	[2]	Spring	(SUB FOR A4816R, THIS APPLICATION)
12.	R69281	[2]	Ball	(SUB FOR 400R, THIS APPLICATION)
13.	R30903	[6]	O-Ring
14.	AR31016	[2]	Guide
15.	R31468	[2]	O-Ring
16.	R31469	[2]	Shim
17.	R31465	[2]	Sleeve
18.	R31467	[2]	Pin
19.	R31455	[1]	Gasket
20.	R31464	[2]	Pin
21.	R45929	[1]	Groove Pin
22.	34H81	[1]	Spring Pin	3/16" X 1-1/2"
23.	19M7403	[1]	Cap Screw	M12 X 35
24.	R76086	[1]	Bracket
25.	19H3599	[1]	Cap Screw	1/2" X 5-1/4"
26.	T100813	[1]	Bushing	(SUB FOR R35614, THIS APPLICATION)
27.	12H304	[3]	Lock Washer	3/8"
28.	19H3031	[3]	Cap Screw	3/8" X 2-1/2"
29.	N162646	[1]	Nut
30.	A3606R	[2]	O-Ring
31.	R52169	[2]	Guide
32.	R39980	[2]	Screw
33.	R52168	[2]	Stop
34.	24H1652	[2]	Washer	13/32" X 11/16" X 7/64"
35.	24M7096	[2]	Washer
36.	R31271	[2]	Compression Spring
37.	R31459	[2]	Retainer
38.	R54059	[2]	Boot
39.	R39982	[2]	Nut
40.	34H245	[2]	Spring Pin	1/8" X 5/8"
41.	R26384	[1]	Retainer
42.	14H342	[2]	Nut	3/8"
43.	R31273	[2]	Yoke
44.	R26385	[2]	Pin Fastener
45.	R72653	[2]	Snap Ring	(SUB FOR M2396T)
46.	B177R	[2]	Bushing
47.	R50034	[1]	Leaf Spring
48.	34H101	[1]	Spring Pin	1/4" X 1"
49.	R50879	[1]	Arm
50.	AT65609	[1]	Pedal	L.H. (MARKED T68554)
51.	AT65608	[1]	Pedal	R.H. (MARKED T68553)
52.	24M7047	[1]	Washer	13 X 24 X 2.500 MM
53.	RE39907	[1]	Valve	(SUB FOR AR102894) (MARKED R71335)
