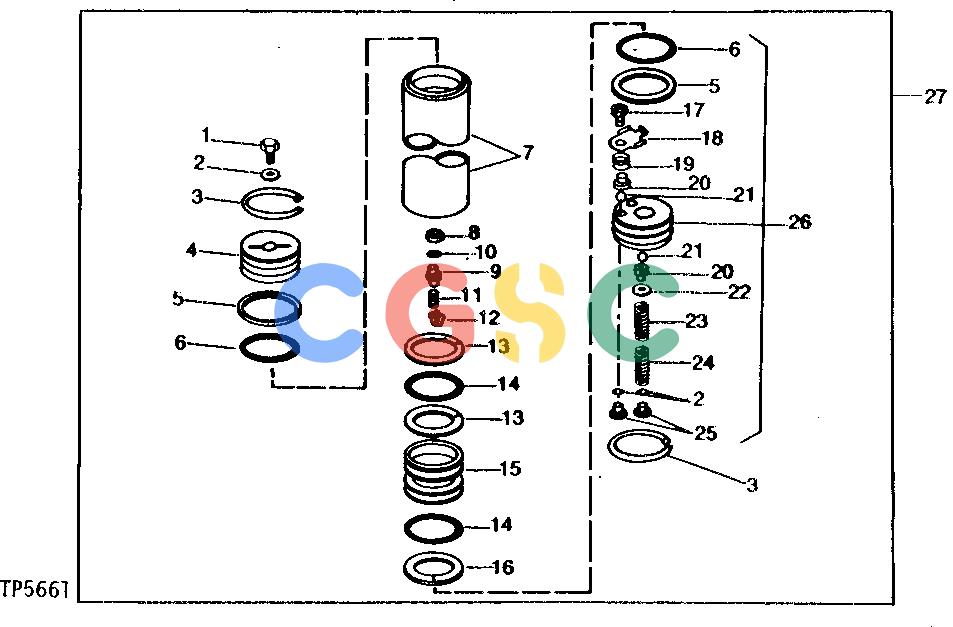

约翰迪尔零件查询410C - BACKHOE, LOADER BRAKE ACCUMULATOR (SERIAL NO. -735064) [02H12]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R27094
|
[1] |
Drain Plug
|
|
| 2. |
R26286
|
[3] |
O-Ring
|
|
| 3. |
R78101
|
[2] |
Snap Ring
|
|
| 4. |
R48957
|
[1] |
End
|
|
| 5. |
R78823
|
[2] |
Back-Up Ring
|
|
| 6. |
R86192
|
[2] |
O-Ring
|
|
| 7. |
R77866
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 8. |
R60038
|
[1] |
Packing
|
|
| 9. |
R47085
|
[1] |
Valve
|
|
| 10. |
R47087
|
[1] |
Washer
|
|
| 11. |
R47086
|
[1] |
Spring
|
|
| 12. |
R41877
|
[1] |
Guide
|
|
| 13. |
L29015
|
[2] |
Back-Up Ring
|
|
| 14. |
A4728R
|
[2] |
O-Ring
|
|
| 15. |
R57103
|
[1] |
Piston
|
|
| 16. |
R27649
|
[1] |
Back-Up Ring
|
|
| 17. |
R74022
|
[1] |
Retainer
|
|
| 18. |
R75866
|
[1] |
Lock Plate
|
|
| 19. |
R44256
|
[1] |
Spring
|
|
| 20. |
R44254
|
[2] |
Guide
|
|
| 21. |
400R
|
[2] |
Ball
|
|
| 22. |
R31632
|
[2] |
Shim
|
|
| 23. |
R47606
|
[1] |
Spring
|
|
| 24. |
R47605
|
[1] |
Spring
|
|
| 25. |
R47607
|
[2] |
Pipe Plug
|
|
| 26. |
AR93259
|
[1] |
Cap
|
|
| 27. |
RE11970
|
[1] |
Accumulator
|
|
