约翰迪尔零件查询410C - BACKHOE, LOADER PARKING BRAKE LEVER AND LINKAGE [02H22]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 724 次

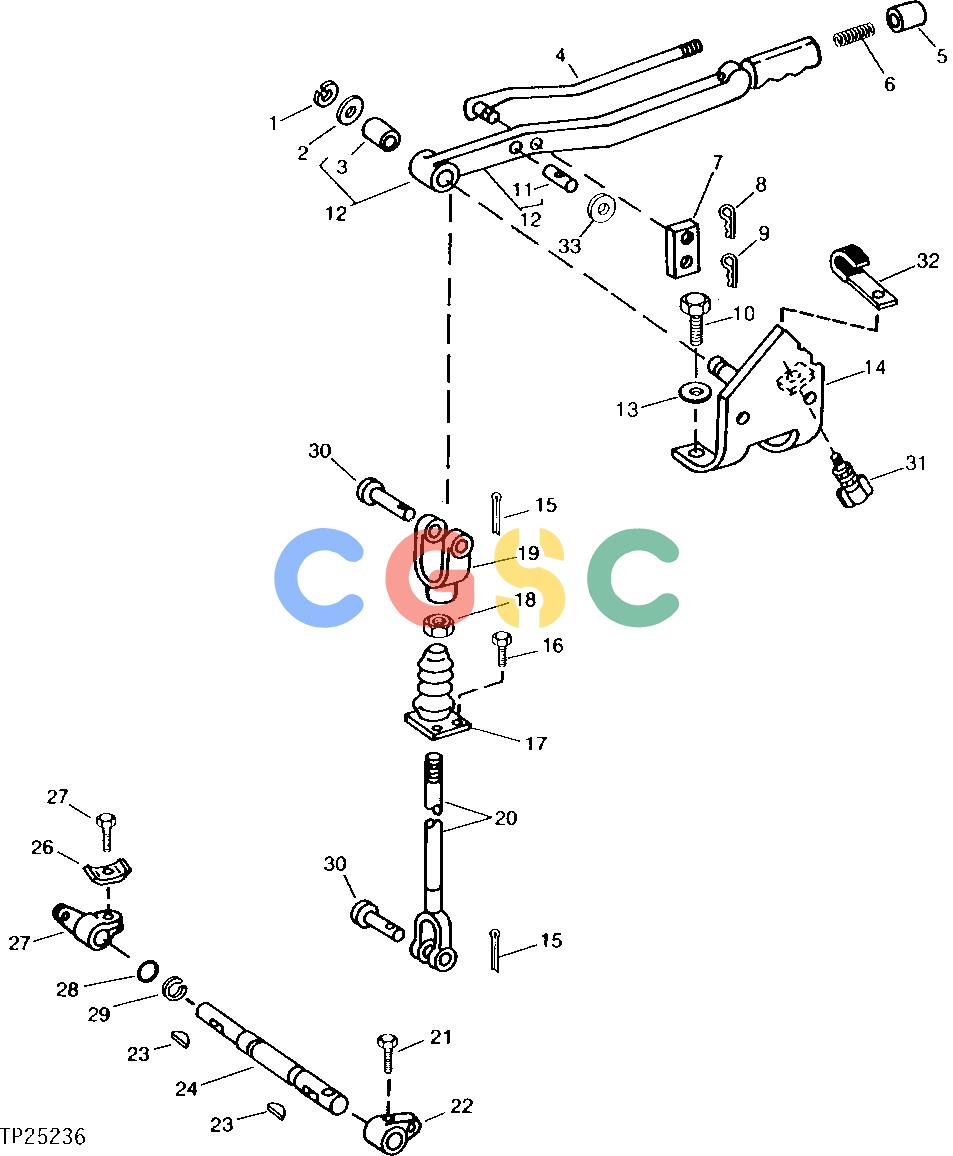

Pos.	Part No	Qty	Parts name	Comments
1.	A602R	[1]	Snap Ring
2.	24H1451	[AR]	Washer	1-1/32" X 1-3/4" X 0.060"
3.	T21998	[1]	Bushing
4.	T68288	[1]	Rod
5.	L62606	[1]	Knob	(SUB FOR T21595)
6.	T21576	[1]	Spring
7.	T21587	[1]	Pawl
8.	11M7077	[1]	Cotter Pin	1.600 X 25 MM
9.	11M7059	[1]	Cotter Pin	3.200 X 20 MM
10.	19M7790	[2]	Screw	M12 X 35
11.	T21593	[1]	Pin	(PRESSED IN)
12.	AT65264	[1]	Lever	(MARKED T68287)
13.	24M7047	[2]	Washer	13 X 24 X 2.500 MM
14.	AT73838	[1]	Support
15.	11M7081	[2]	Cotter Pin	2.500 X 20 MM
16.	19M7560	[2]	Cap Screw	M6 X 16
16.	24M7088	[2]	Washer
17.	AT66911	[1]	Boot
18.	14H846	[1]	Nut	3/8"
19.	M80373	[1]	Yoke
20.	AT124287	[1]	Yoke	(SUB FOR AT73837) (ALSO ORDER M80373 AND 14H846)
21.	19M7407	[1]	Cap Screw	M8 X 25
22.	T67041	[1]	Lever
23.	26H77	[2]	Shaft Key	3/16" X 3/4"
24.	T106086	[1]	Shaft	(SUB FOR T67040, THIS APPLICATION)
25.	L32144	[1]	Lever
26.	R1888R	[1]	Strap
27.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
28.	T122075	[1]	O-Ring	(SUB FOR U45860)
29.	M2353T	[1]	Snap Ring
30.	C1067R	[2]	Pin Fastener
31.	AH78765	[3]	Switch	PARK BRAKE AND BRAKE, (SUB FOR AT42011)
32.	T13744	[1]	Clamp
33.	24H1305	[1]	Washer	13/32" X 13/16" X 0.065"
