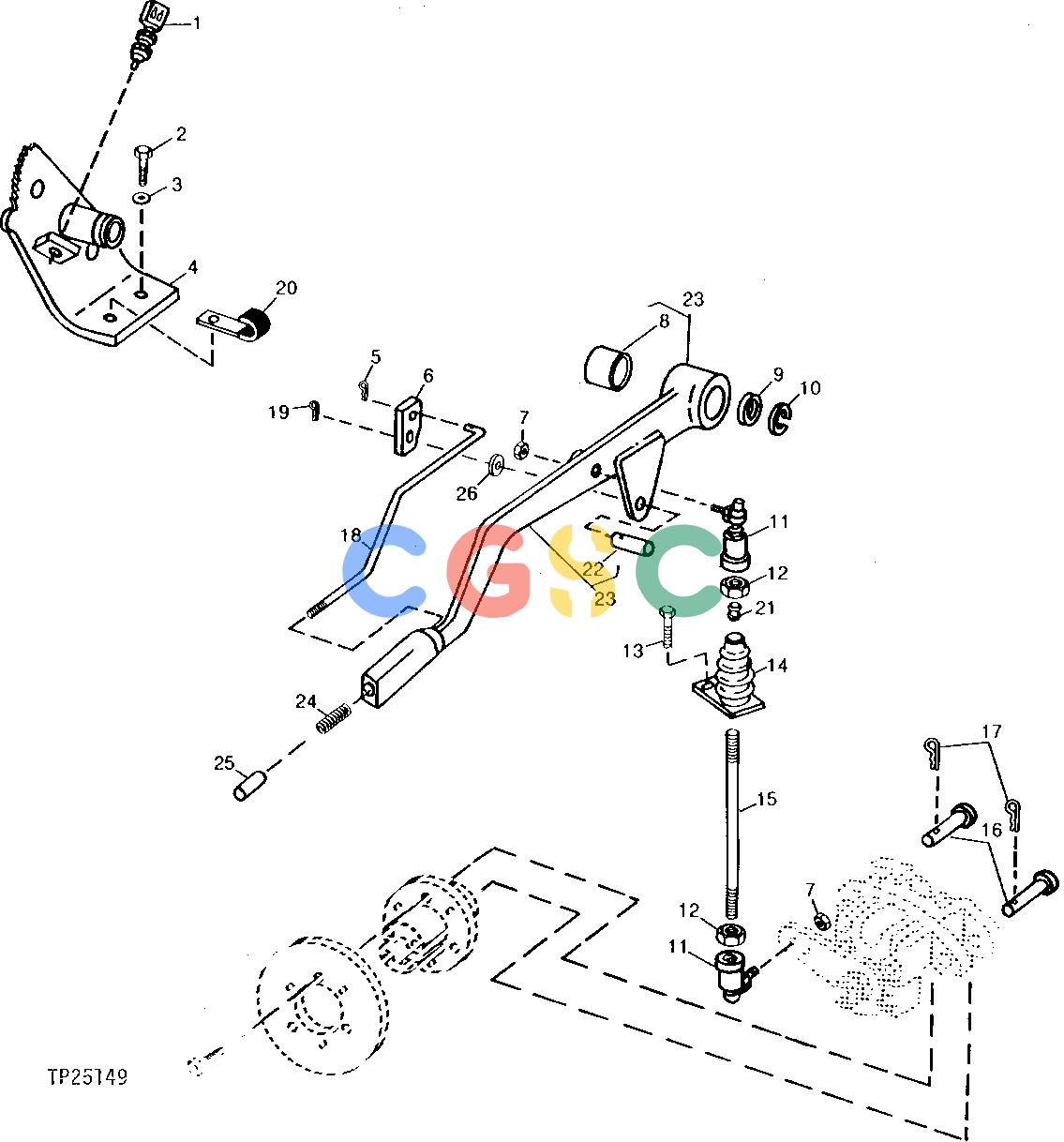

约翰迪尔零件查询410C - BACKHOE, LOADER PARKING BRAKE LEVER AND LINKAGE [02H24]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH78765
|
[1] |
Switch
|
|
| 2. |
19M7790
|
[2] |
Screw
|
|
| 3. |
24M7047
|
[2] |
Washer
|
|
| 4. |
AT73920
|
[1] |
Support
|
|
| 5. |
11M7059
|
[2] |
Cotter Pin
|
|
| 6. |
T21587
|
[1] |
Pawl
|
|
| 7. |
14H846
|
[2] |
Nut
|
|
| 8. |
T21998
|
[1] |
Bushing
|
|
| 9. |
24H1451
|
[1] |
Washer
|
|
| 10. |
A602R
|
[1] |
Snap Ring
|
|
| 11. |
AT169087
|
[2] |
Ball Joint
|
|
| 12. |
14H774
|
[2] |
Nut
|
|
| 13. |
T46879
|
[1] |
Plug
|
|
| 13. |
19M7775
|
[2] |
Screw
|
|
| 14. |
AT66911
|
[1] |
Boot
|
|
| 15. |
T77319
|
[1] |
Lever
|
|
| 16. |
T18536
|
[2] |
Pin Fastener
|
|
| 17. |
11M7087
|
[2] |
Cotter Pin
|
|
| 18. |
T68533
|
[1] |
Rod
|
|
| 19. |
11M7077
|
[1] |
Cotter Pin
|
|
| 20. |
T13744
|
[1] |
Clamp
|
|
| 21. |
T70083
|
[1] |
Grommet
|
|
| 22. |
T21593
|
[1] |
Pin
|
|
| 23. |
AT65513
|
[1] |
Handbrake Lever
|
|
| 24. |
T21576
|
[1] |
Spring
|
|
| 25. |
L62606
|
[1] |
Knob
|
|
| 26. |
24H1305
|
[1] |
Washer
|
|
