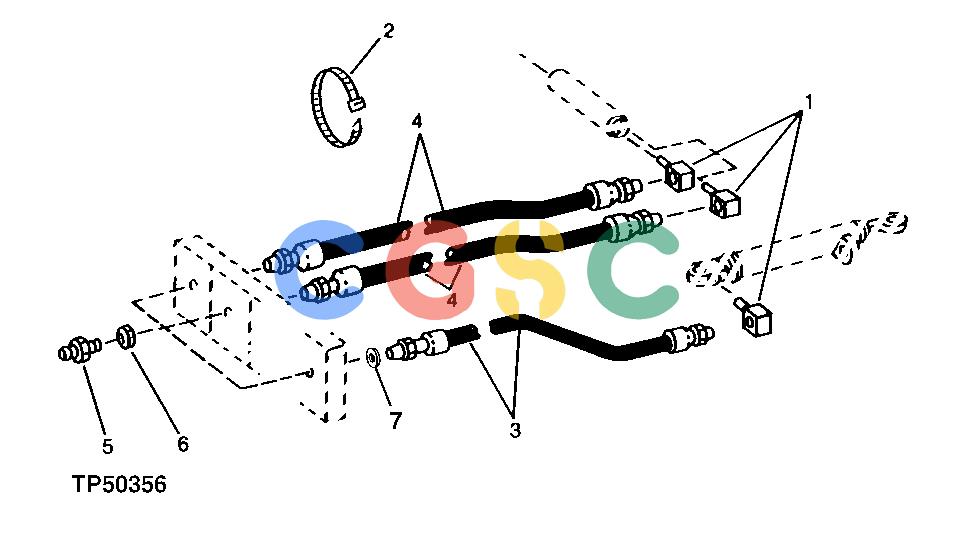

约翰迪尔零件查询410C - BACKHOE, LOADER FRONT AXLE AND STEERING CYLINDER LUBRICATION SYSTEM [02I22]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD7838
|
[3] |
Adapter Fitting
|
|
| 1. |
JD7838
|
[2] |
Adapter Fitting
|
|
| 2. |
R44302
|
[AR] |
Tie Band
|
|
| 3. |
AT53933
|
[1] |
Hydraulic Hose
|
|
| 3. |
AT114019
|
[1] |
Hydraulic Hose
|
|
| 4. |
AT101690
|
[2] |
Hydraulic Hose
|
|
| 4. |
AT173254
|
[2] |
Hydraulic Hose
|
|
| 5. |
JD7797
|
[3] |
Lubrication Fitting
|
|
| 5. |
JD7797
|
[2] |
Lubrication Fitting
|
|
| 5. |
T162396
|
[2] |
Lubrication Fitting
|
|
| 6. |
E12379
|
[3] |
Nut
|
|
| 6. |
E12379
|
[2] |
Nut
|
|
| 7. |
24H1302
|
[AR] |
Washer
|
|
