约翰迪尔零件查询410D - BACKHOE, LOADER DIFFERENTIAL LOCK MECHANISMEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 709 次

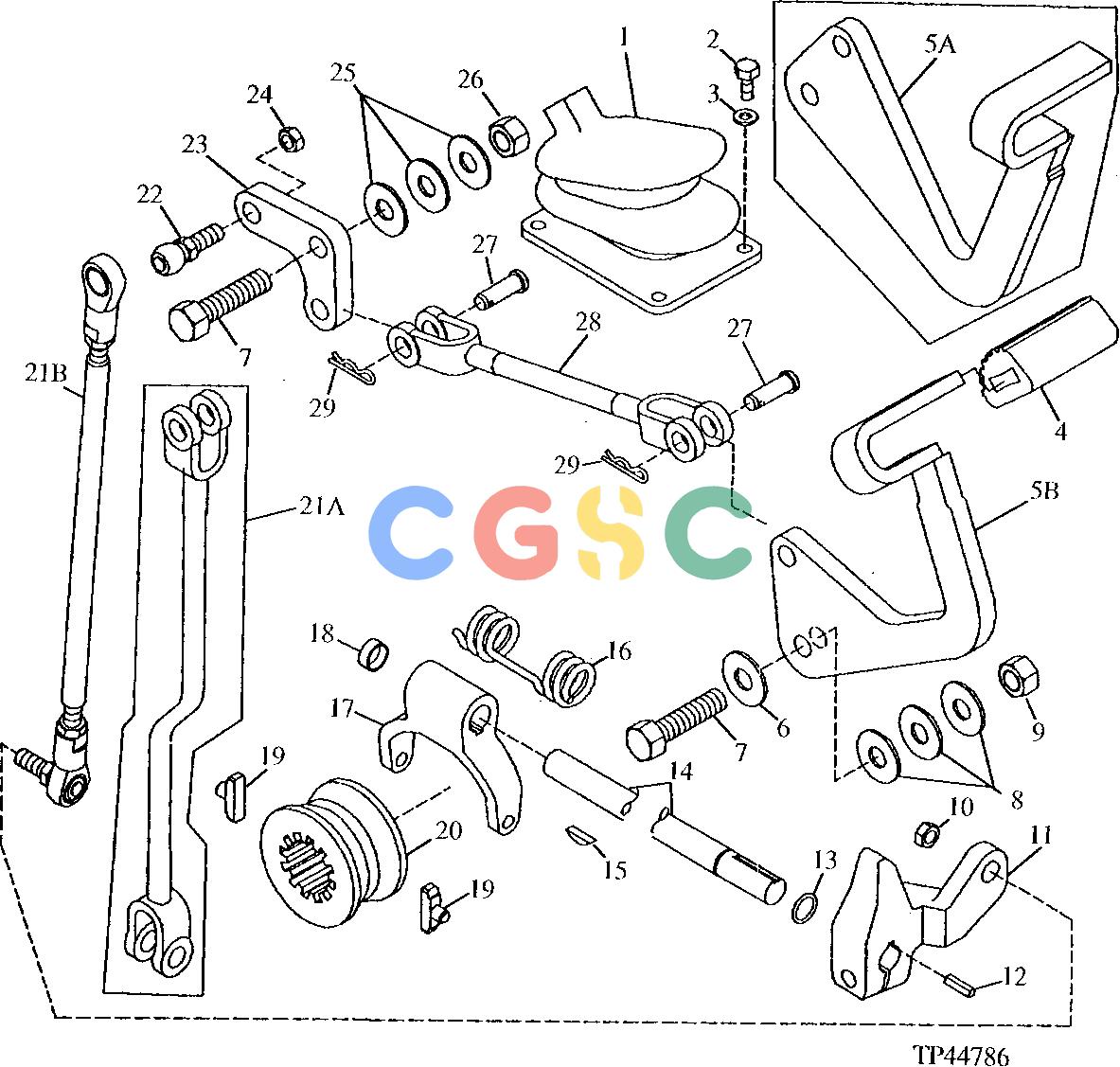

Pos.	Part No	Qty	Parts name	Comments
1.	AT141227	[1]	Boot
2.	T77834	[4]	Self-Locking Screw
3.	24M7293	[4]	Washer	6.500 X 13 X 1.600 MM
4.	T135373	[1]	Pad
5A.	AT148146	[1]	Pedal
5B.	AT171183	[1]	Pedal	(SUB FOR AT165124)
6.	24H1226	[7]	Washer	1/2" X 1-1/4" X 0.083"
7.	19M7361	[2]	Cap Screw	M12 X 50
8.	24H1226	[7]	Washer	1/2" X 1-1/4" X 0.083"
9.	14M7168	[2]	Lock Nut	M12
10.	F3220R	[1]	Lock Nut	(SUB FOR M68954)
11.	T33389	[1]	Arm
11.	T149894	[1]	Arm
12.	H410R	[1]	Shaft Key
13.	R28776	[1]	O-Ring
14.	T21839	[1]	Shaft
15.	26H77	[1]	Shaft Key	3/16" X 3/4"
16.	R63850	[1]	Spring
17.	T21840	[1]	Yoke
18.	T18891	[1]	Plug
19.	T21841	[2]	Shoe
20.	T21819	[1]	Shift Collar
21A.	AT139723	[1]	Link
21B.	AT171109	[1]	Link	(SUB FOR AT165695)
22.	T151914	[1]	Ball Stud
23.	T85308	[1]	Bellcrank
23.	T149893	[1]	Bellcrank
24.	M68954	[1]	Lock Nut
25.	24H1226	[7]	Washer	1/2" X 1-1/4" X 0.083"
26.	14M7168	[2]	Lock Nut	M12
27.	R72855	[2]	Pin Fastener
28.	AT139737	[1]	Link
29.	11H236	[AR]	Cotter Pin	1/8" X 1"
