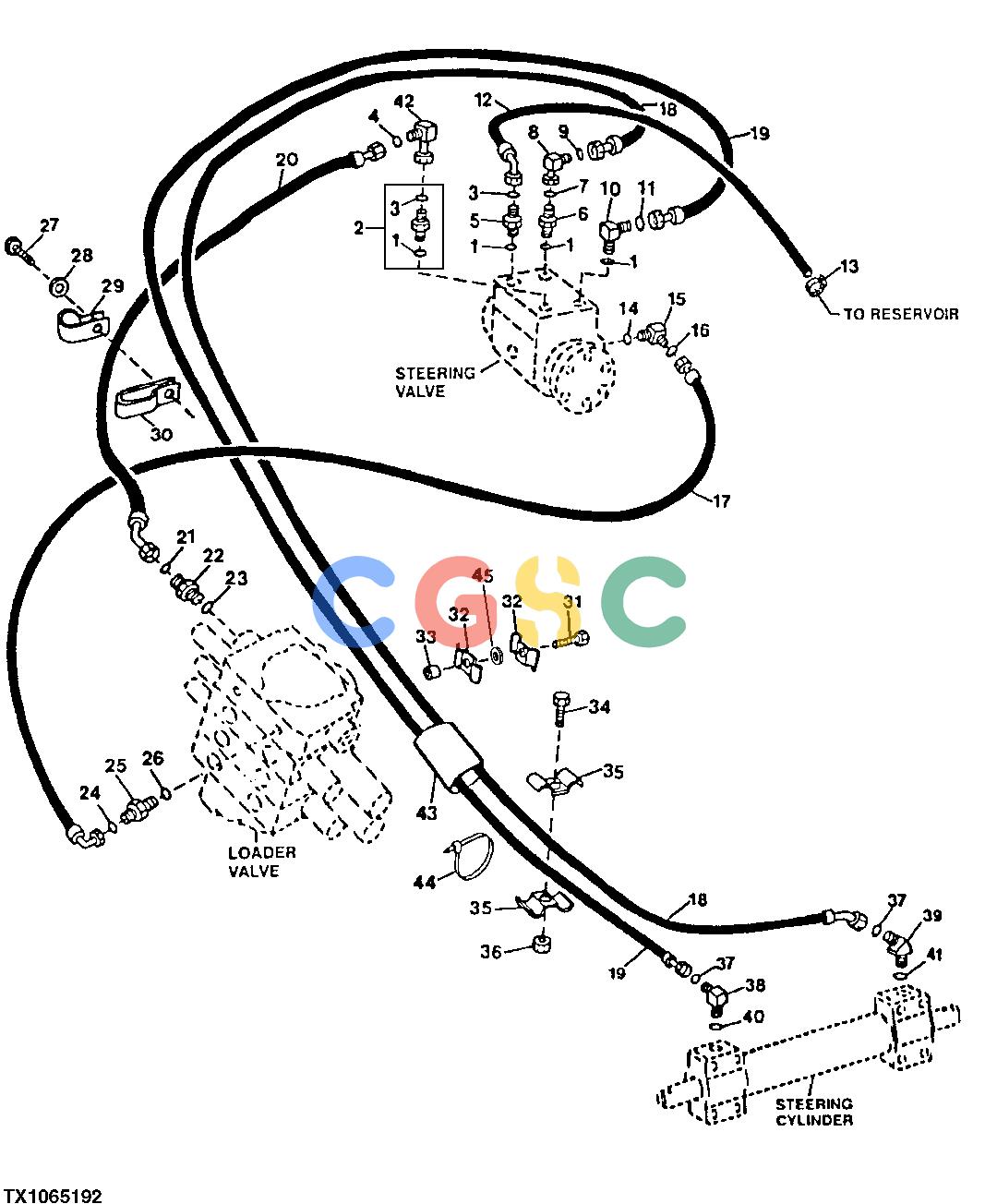

约翰迪尔零件查询410D - BACKHOE, LOADER STEERING VALVE AND STEERING CYLINDER HYDRAULICS (w/ MFWD) (801200 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1019 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[4]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
2.	AT141527	[1]	Check Valve	(INCLUDES R26375 AND T77857)
2.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
2.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
3.	T77857	[2]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
4.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
5.	38H1161	[1]	Adapter Fitting
6.	38H1171	[1]	Adapter Fitting
7.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
8.	38H1094	[1]	Elbow Fitting
9.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070") WITH MFWD
10.	38H1010	[1]	Elbow Fitting
11.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
12.	AT164459	[1]	Hydraulic Hose - Fabricate
13.	TY22462	[1]	Clamp	(SUB FOR AR48236)
14.	R28782	[1]	O-Ring
15.	38H1003	[1]	Elbow Fitting
16.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
17.	AT165138	[1]	Hydraulic Hose - Fabricate	9/16" X 1664 MM (65-1/2") X 9/16"
18.	AT165978	[1]	Hydraulic Hose - Fabricate	17.4752" X 2921 MM (115") X 17.4752" (ALSO ORDER AT171139, 24M7239 AND R44302)(ALSO REQUIRES 10" OF T78606 BULK MATERIAL)
18.	AT165978	[1]	Hydraulic Hose - Fabricate	17.4752" X 2921 MM (115") X 17.4752"
19.	AT170930	[1]	Hydraulic Hose - Fabricate	17.4752" X 2628 MM (103-1/2") X 17.4752" (SUB FOR AT165979, THIS APPLICATION ) (ALSO ORDER AT171139, 24M7239 AND R44302)(ALSO REQUIRES 10 " OF T78606 BULK MATERIAL)
19.	AT170930	[1]	Hydraulic Hose - Fabricate	17.4752" X 2628 MM (103-1/2") X 17.4752" (SUB FOR AT165979, THIS APPLICATION)
20.	AT165137	[1]	Hydraulic Hose - Fabricate	13/16" X 1422 MM (56") X 13/16"
21.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
22.	38H1161	[1]	Adapter Fitting
23.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
24.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
25.	38H1168	[1]	Adapter Fitting
26.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
27.	19M7407	[1]	Cap Screw	M8 X 25
28.	24M7238	[1]	Washer	8.700 X 17 X 2 MM
29.	T24959	[1]	Clamp
30.	T152608	[1]	Clamp
31.	19M8853	[2]	Screw	M10 X 50 (SUB FOR M117904)
32.	R27491	[4]	Clamp
33.	28H1521	[2]	Spacer	0.493" X 0.675" X 9/16"
34.	19M7881	[1]	Screw	M8 X 20
34.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
35.	R27491	[2]	Clamp
36.	14M7273	[1]	Nut	M8
37.	T77613	[2]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
38.	38H1004	[1]	Elbow Fitting
39.	38H1045	[1]	Elbow Fitting
40.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
41.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
42.	38H1095	[1]	Elbow Fitting
43.	........	[1]	Isolator	(MAKE FROM T78606 BULK MATERIAL, CUT TO LENGTH)
44.	R44302	[1]	Tie Band
45.	24H1304	[2]	Washer	13/32" X 23/32" X 0.120"
