约翰迪尔零件查询410D - BACKHOE, LOADER STEERING WHEEL, STEERING VALVE AND STEERING COLUMNEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410D - BACKHOE, LOADER STEERING WHEEL, STEERING VALVE AND STEERING COLUMNEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 790 次

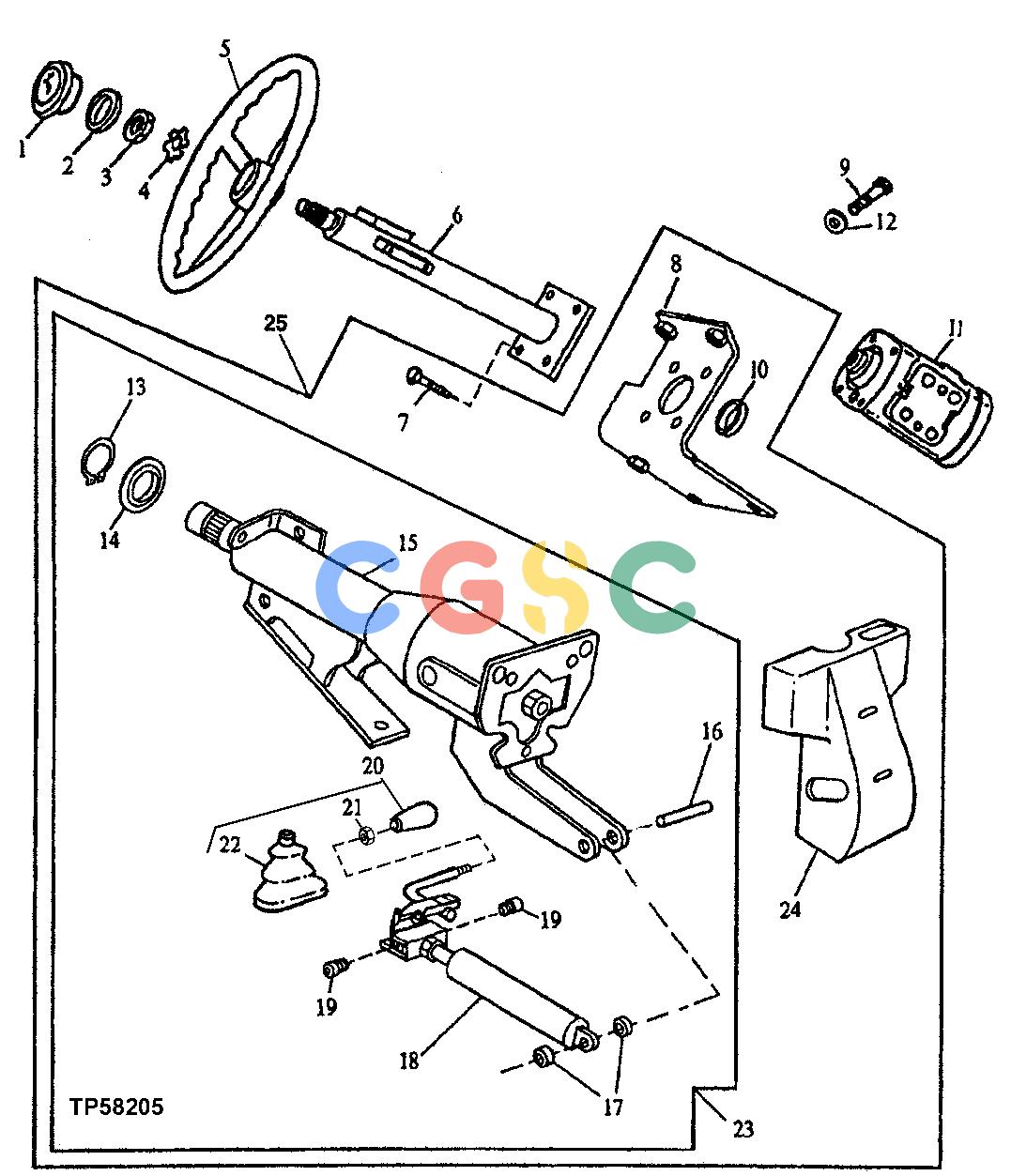

Pos.	Part No	Qty	Parts name	Comments
1.	AL155227	[1]	Cover	SUB FOR AL118173 OR R47998
2.	P50631	[1]	O-Ring
3.	T13630	[1]	Nut
4.	T17148	[1]	Lock Washer
5.	AT139694	[1]	Steering Wheel
6.	AT166242	[1]	Steering Column	SUB FOR AT139699 AND AT160572
7.	19H2676	[4]	Cap Screw	3/8" X 1" WITHOUT TILT STEERING
7.	19H2272	[4]	Screw	3/8" X 1" WITH TILT STEERING
8.	AT146291	[1]	Bracket
8.	AT159104	[1]	Bracket
9.	19M7402	[4]	Cap Screw	M10 X 25
10.	T134635	[1]	Washer	WITHOUT TILT STEERING
10.	T142887	[1]	Washer	WITH TILT STEERING
11.	AT318271	[1]	Manual Hydraulic Valve	SUB FOR AT107576 AND AT173411
12.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
13.	........	[1]	Snap Ring	(RE56109 KIT, TILT STEERING COLUMN OVERHAUL (SUB FOR RE50306))
14.	........	[1]	Seal	(RE56109 KIT, TILT STEERING COLUMN OVERHAUL (SUB FOR RE50306))
15.	........	[1]	Steering Column	AT160661 NLA, SUB AT140971
16.	........	[1]	Dowel Pin	(RE56109 KIT, TILT STEERING COLUMN OVERHAUL (SUB FOR RE50306))
17.	........	[1]	Bushing	NLA
18.	AT160662	[1]	Kit
18.	AT220224	[1]	Lever Kit
19.	........	[1]	Pin	(RE56109 KIT, TILT STEERING COLUMN OVERHAUL (SUB FOR RE50306))
20.	AT191487	[1]	Boot Kit	KNOB
21.	........	[1]	Nut	ORDER AT191487
22.	........	[1]	Boot	ORDER AT191487
23.	AT140971	[1]	Steering Column	TILT
24.	T132995	[1]	Cover	LOWER COLUMN TILT STEERING
25.	AT161014	[1]	Kit	TILT STEERING
