约翰迪尔零件查询410D - BACKHOE, LOADER Brake Valve and PedalsEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 779 次

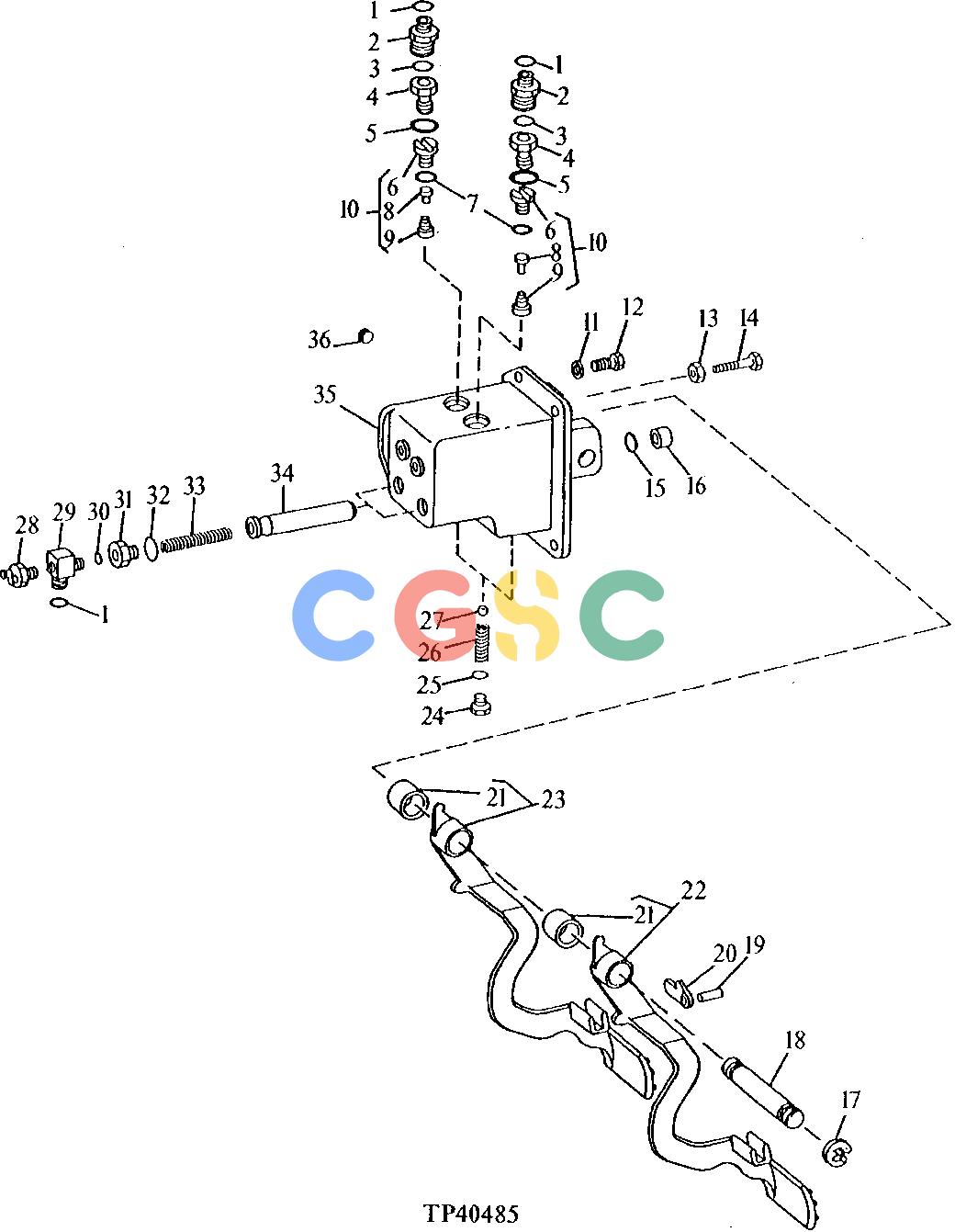

Pos.	Part No	Qty	Parts name	Comments
1.	T77814	[4]	O-Ring
2.	R46856	[2]	Fitting
2.	38H1176	[2]	Adapter Fitting
3.	R26448	[2]	O-Ring
3.	T77857	[2]	O-Ring
4.	L32705	[2]	Threaded Nipple
5.	R29936	[2]	O-Ring
6.	........	[2]	Seat	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE))
7.	R26906	[2]	O-Ring	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE))
8.	........	[2]	Valve	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE))
9.	........	[2]	Spring	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE))
10.	........	[2]	Check Valve	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE)) AT135655 NO LONGER AVAILABLE (SUB AT184432)
11.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
12.	19M7550	[4]	Cap Screw	M10 X 35
13.	14H732	[2]	Nut	3/8"
14.	L32504	[2]	Cap Screw
15.	T163092	[2]	Seal	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE)) (SUB FOR R495R, THIS APPLICATION)
16.	T22101	[2]	Seal	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE))
17.	F2863R	[2]	Snap Ring
18.	T133078	[1]	Pin Fastener
19.	34H101	[1]	Spring Pin	1/4" X 1"
20.	R50879	[1]	Arm
21.	B177R	[2]	Bushing
22.	AT151431	[1]	Pedal	LEFT
23.	AT151432	[1]	Pedal	RIGHT
24.	R39112	[2]	Fitting
25.	R26375	[2]	O-Ring
26.	T21816	[2]	Compression Spring
27.	D2361R	[2]	Ball
28.	R32548	[2]	Pressure Switch	(STOP LIGHT SWITCH)
29.	T130279	[2]	Elbow Fitting
30.	R26287	[2]	O-Ring
31.	R50110	[2]	Fitting
32.	U12547	[2]	O-Ring
33.	T124602	[2]	Spring
34.	........	[2]	Piston	(KIT AT184432 BRAKE VALVE OVERHAUL (REQUIRES 2 KITS FOR 1 VALVE)) T127125 NO LONGER AVAILABLE (SUB AT184432)
35.	T133398	[1]	Housing
36.	15H560	[1]	Pipe Plug	1/16" 1/16"
