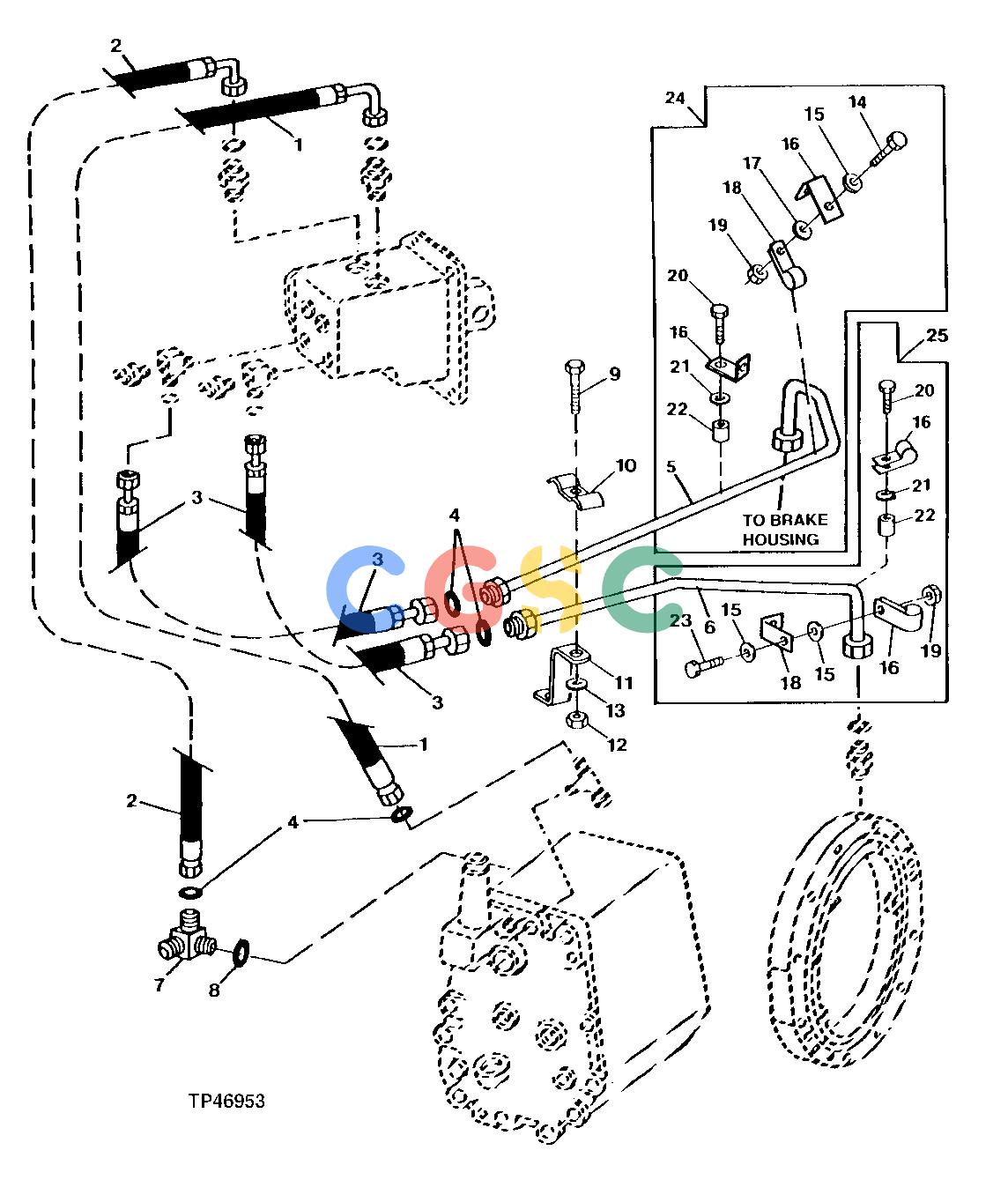

约翰迪尔零件查询410D - BACKHOE, LOADER Service Brake Hydraulics ( - 796854)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 243 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT149778	[1]	Hydraulic Hose - Fabricate	1/2" X 1320 MM (52") X 1/2"
2.	AT151012	[1]	Hydraulic Hose - Fabricate
3.	AT168206	[2]	Hydraulic Hose - Fabricate	(SUB FOR AT150290)
4.	T77814	[4]	O-Ring
5.	........	[1]	Oil Line	( AT150479 NO LONGER AVAILABLE) (SUB AT172102)
6.	........	[1]	Oil Line	( AT149701 NO LONGER AVAILABLE) (SUB AT172103)
7.	AT74103	[1]	Tee Fitting
8.	R26448	[1]	O-Ring
9.	19M7932	[1]	Cap Screw	M8 X 16
10.	R27491	[1]	Clamp
11.	T128064	[1]	Bracket
12.	14M7273	[1]	Nut	M8
13.	24M7238	[1]	Washer	8.700 X 17 X 2 MM
14.	19H3239	[AR]	Cap Screw	3/8" X 1-1/4"
15.	24M7239	[AR]	Washer	10.700 X 21 X 2.500 MM
16.	T29969	[2]	Clamp
17.	24H1781	[AR]	Washer	13/32" X 7/8" X 1/4"
18.	T47700	[1]	Angle
19.	14H1076	[1]	Nut	3/8"
20.	19H3217	[1]	Cap Screw	3/8" X 1-3/4"
21.	28H1495	[1]	Spacer	0.493" X 0.675" X 1"
22.	28H3381	[AR]	Spacer	0.493" X 0.675" X 5/8"
23.	19H2284	[1]	Cap Screw	3/8" X 7/8"
24.	........	[1]	Kit	( AT172102 NLA)
25.	........	[1]	Kit	( AT172103 NLA)
