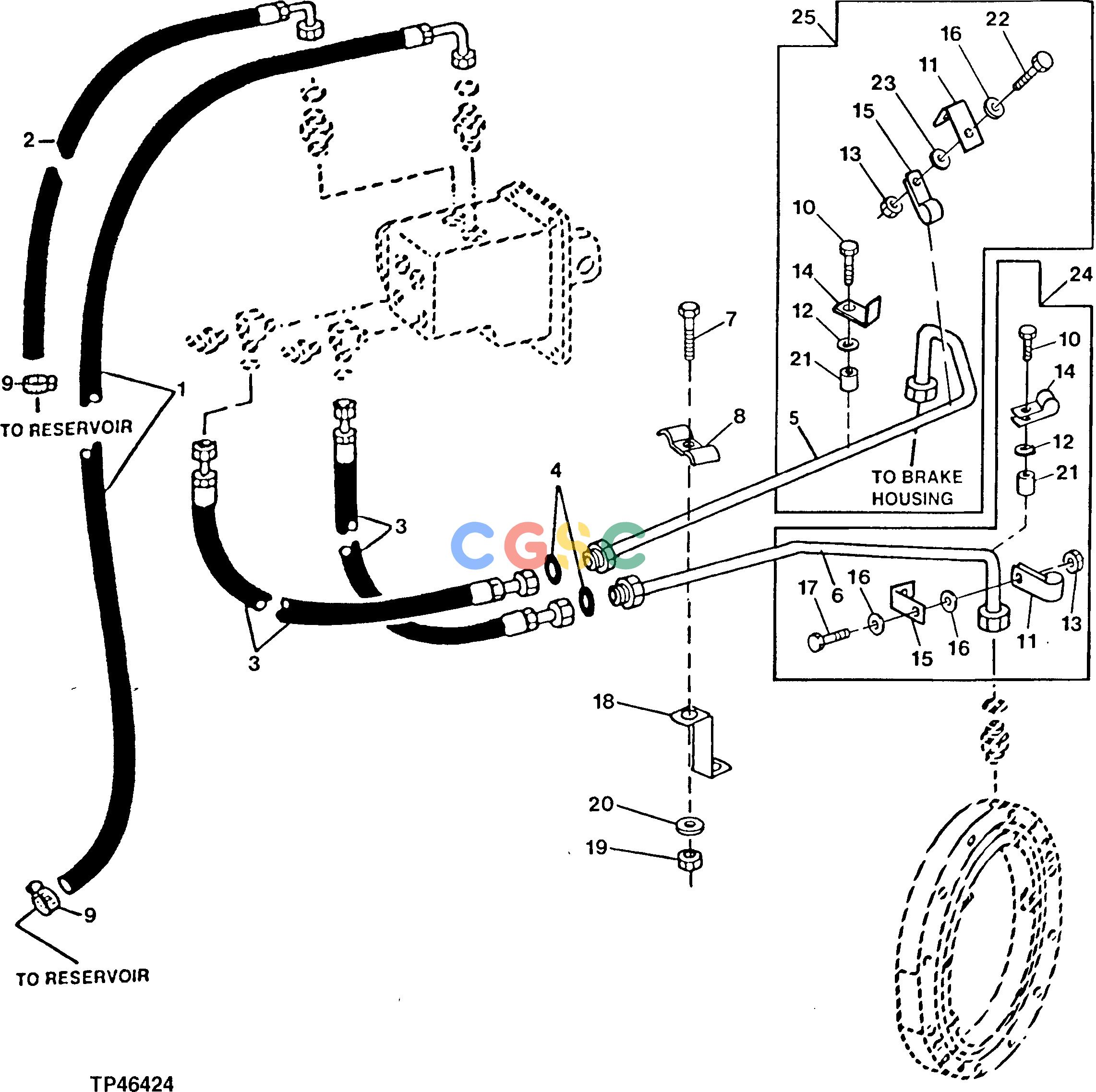

约翰迪尔零件查询410D - BACKHOE, LOADER Service Brake Hydraulics (796855 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 168 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT164462	[1]	Hydraulic Hose - Fabricate
1.	AT145272	[1]	Hydraulic Hose - Fabricate
2.	AT164461	[1]	Hydraulic Hose - Fabricate
2.	AT167890	[1]	Hydraulic Hose - Fabricate
3.	AT168206	[2]	Hydraulic Hose - Fabricate	(SUB FOR AT150290)
4.	T77814	[4]	O-Ring
5.	........	[1]	Oil Line	( AT150479 NO LONGER AVAILABLE) (SUB AT172102)
6.	........	[1]	Oil Line	( AT149701 NO LONGER AVAILABLE) (SUB AT172103)
7.	19M7932	[1]	Cap Screw	M8 X 16
8.	R27491	[1]	Clamp
9.	TY22462	[2]	Clamp	(SUB FOR AR48236)
10.	19H3217	[1]	Cap Screw	3/8" X 1-3/4"
11.	T29969	[2]	Clamp
12.	28H1495	[1]	Spacer	0.493" X 0.675" X 1"
13.	14H1076	[1]	Nut	3/8"
14.	T29969	[1]	Clamp
15.	T47700	[1]	Angle
16.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
17.	19H2284	[1]	Cap Screw	3/8" X 7/8"
18.	T152236	[1]	Support
19.	14M7273	[1]	Nut	M8
20.	24M7238	[1]	Washer	8.700 X 17 X 2 MM
21.	28H3381	[AR]	Spacer	0.493" X 0.675" X 5/8"
22.	19H3239	[AR]	Cap Screw	3/8" X 1-1/4"
23.	24H1781	[AR]	Washer	13/32" X 7/8" X 1/4"
24.	........	[1]	Kit	( AT172103 NLA)
25.	........	[1]	Kit	( AT172102 NLA)
