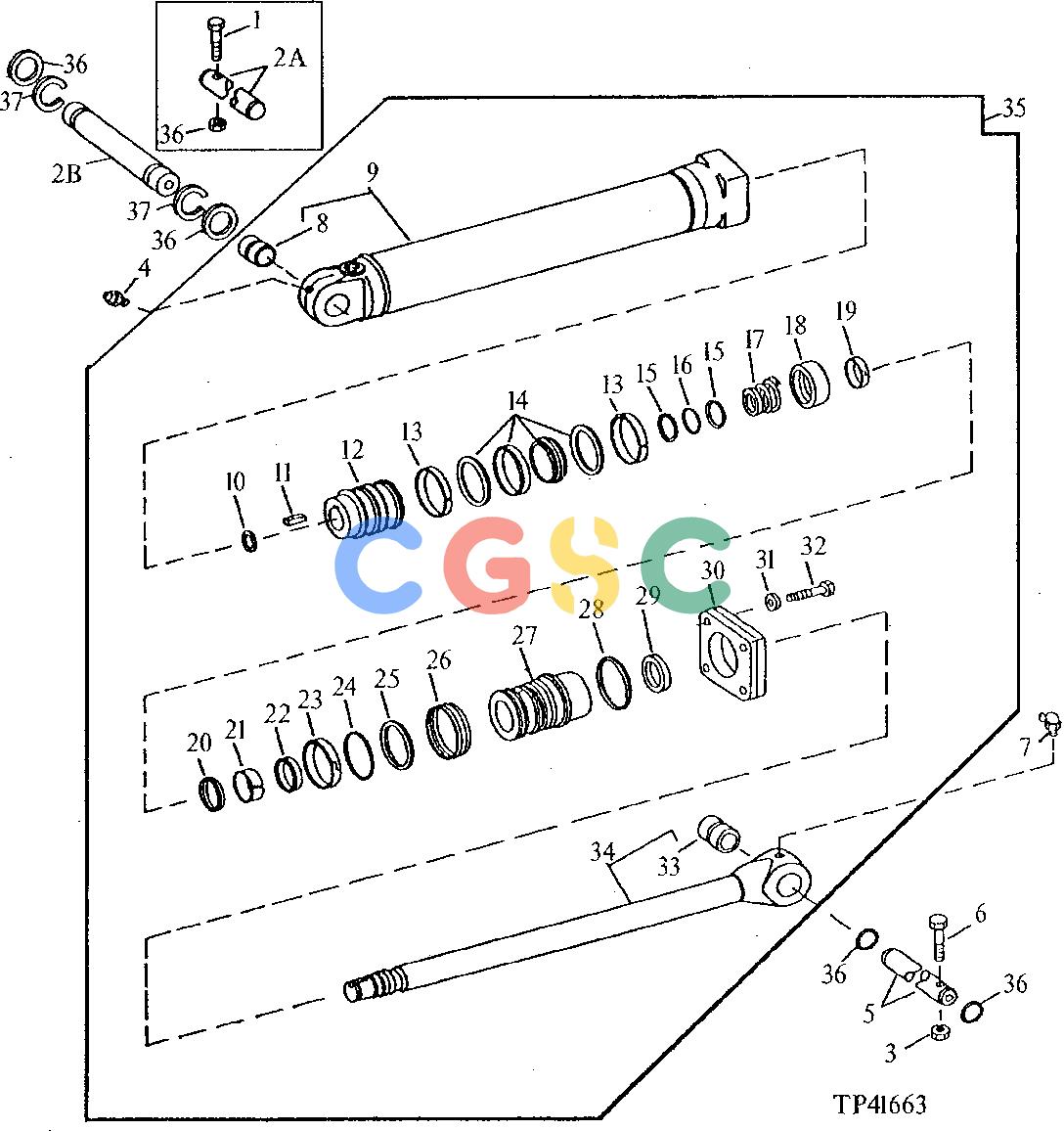

约翰迪尔零件查询410D - BACKHOE, LOADER Crowd Cylinder (410D Heavy Lift, 510D Standard) ( - 798466)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 626 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7914	[1]	Cap Screw	M12 X 120
2A.	T125945	[1]	Pin Fastener
2B.	T142485	[1]	Pin
3.	14M7319	[1]	Lock Nut	M12
4.	T162396	[1]	Lubrication Fitting	(SUB FOR JD7798)
5.	T125936	[1]	Pin Fastener	USE WITH 1.9M AND 2.1M DIPPERSTICK
5.	T147002	[1]	Pin	(WITH 1.2M AND 1.5M EXTENDIBLE DIPPERSTICK)
6.	19M7949	[1]	Cap Screw	M12 X 100
7.	JD7799	[1]	Lubrication Fitting
8.	R82075	[1]	Bushing
9.	........	[1]	Hydraulic Cylinder Barrel	( AH135268 NO LONGER AVAILABLE) (SUB AH143715)
10.	R83216	[1]	Snap Ring
11.	R83215	[1]	Shaft Key
12.	H141559	[1]	Piston
13.	R82095	[2]	Wear Ring	(BK)
14.	RE20809	[1]	Seal	(BK)
15.	R86290	[2]	Back-Up Ring	(RK)
16.	R26282	[1]	O-Ring	(RK)
17.	H140819	[1]	Spring
18.	H140817	[1]	Cushion
19.	H140822	[1]	Back-Up Ring
20.	RE22776	[1]	Seal	(RK)
21.	R83213	[1]	Wear Ring	(RK)
22.	RE30121	[1]	Seal	(RK)
23.	H140821	[1]	Back-Up Ring
24.	P46765	[1]	O-Ring
25.	R79001	[1]	Back-Up Ring	(BK) (DISASSEMBLY AID TOOL)
26.	H141511	[1]	Spacer
27.	H140812	[1]	Hydr. Cylinder Rod Guide
28.	H141980	[1]	Sealing Washer	(BK)
29.	RE22777	[1]	Seal	(RK)
30.	H140827	[1]	Hydr. Cylinder Rod Guide
31.	H140825	[4]	Washer
32.	19M7892	[4]	Cap Screw	M20 X 80
33.	R83221	[1]	Bushing
34.	AH135272	[1]	Hydraulic Cylinder Rod
35.	........	[1]	Hydraulic Cylinder	( AH135266 NO LONGER AVAILABLE) (SUB AH142934)
36.	14M7319	[1]	Lock Nut	M12
36.	24H1679	[AR]	Washer	2-17/64" X 3-1/4" X 0.060"
37.	40M7066	[2]	Snap Ring
