约翰迪尔零件查询410D - BACKHOE, LOADER Crowd Cylinder (410D Heavy Lift, 510D Standard) (798467 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 433 次

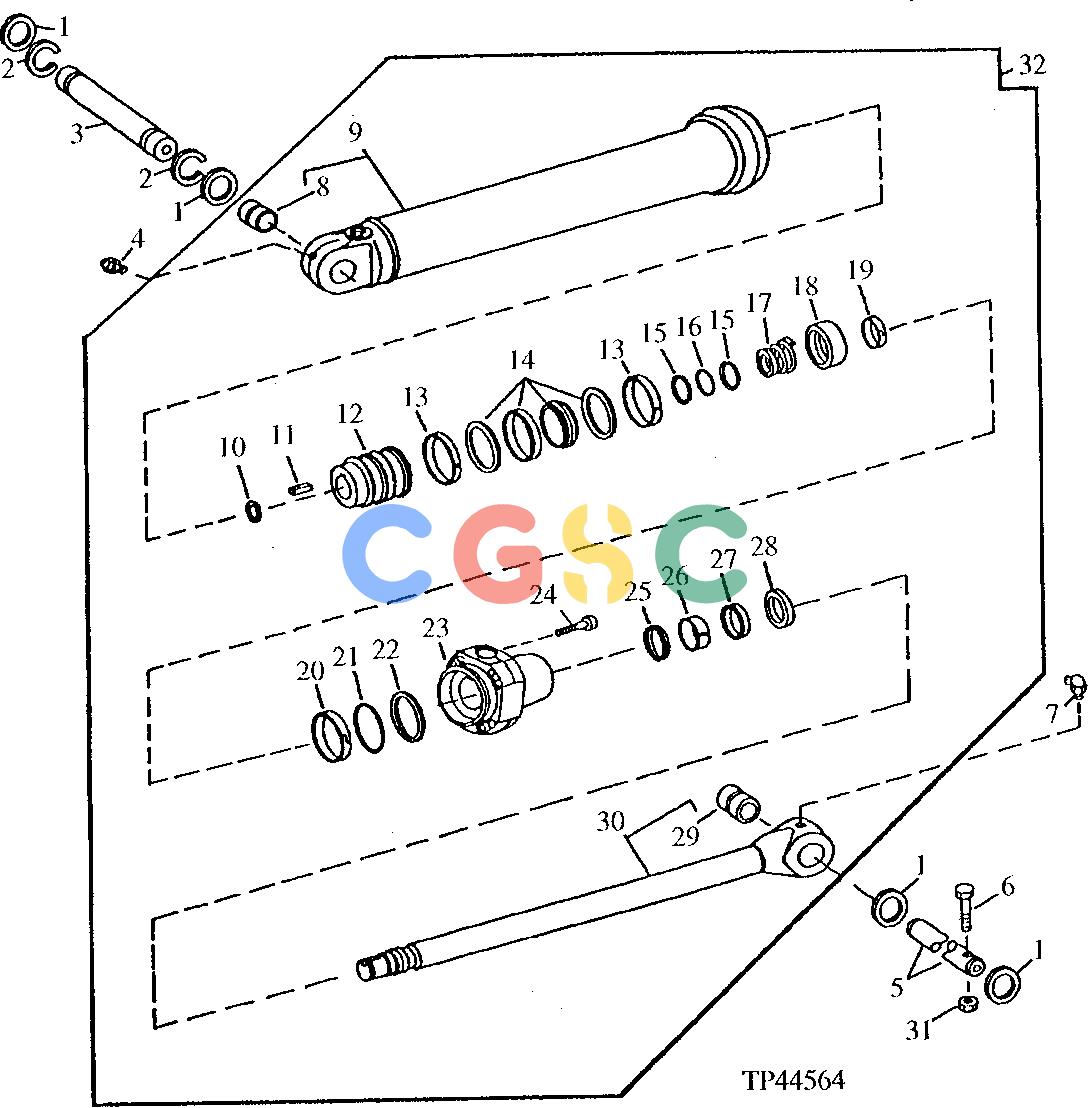

Pos.	Part No	Qty	Parts name	Comments
1.	24H1679	[AR]	Washer	2-17/64" X 3-1/4" X 0.060"
2.	40M7066	[2]	Snap Ring
3.	T142485	[1]	Pin	55 X 222 MM (2.165" X 8.740")
4.	T162396	[1]	Lubrication Fitting	(SUB FOR JD7798)
5.	T125936	[1]	Pin Fastener	USE WITH 1.9M AND 2.1M DIPPERSTICK
5.	T147002	[1]	Pin	(WITH 1.2M AND 1.5M EXTENDIBLE DIPPERSTICK)
6.	19M7949	[1]	Cap Screw	M12 X 100
7.	JD7799	[1]	Lubrication Fitting
8.	R82075	[1]	Bushing
9.	AH142949	[1]	Hydraulic Cylinder Barrel	(BK1)
10.	R83216	[1]	Snap Ring
11.	R83215	[1]	Shaft Key
12.	H141559	[1]	Piston
13.	R82095	[2]	Wear Ring	(BK)
14.	RE20809	[1]	Seal	(BK)
15.	R86290	[2]	Back-Up Ring	(RK)
16.	R26282	[1]	O-Ring	(RK)
17.	H140819	[1]	Spring
18.	H140817	[1]	Cushion
19.	H140822	[1]	Back-Up Ring
20.	RE22776	[1]	Seal	(RK)
21.	P46765	[1]	O-Ring	(RK)
22.	R79001	[1]	Back-Up Ring	(BK)
23.	H149342	[1]	Hydr. Cylinder Rod Guide	(BK1)
24.	19M6619	[8]	Screw	M14 X 70 (BK1)
25.	RE22776	[1]	Seal	(RK) (DISASSEMBLY AID TOOL)
26.	H150617	[1]	Wear Ring	(RK)
27.	RE30121	[1]	Seal	(RK)
28.	RE24537	[1]	Seal	(RK)
29.	R83221	[1]	Bushing
30.	AH135272	[1]	Hydraulic Cylinder Rod
31.	14M7319	[1]	Lock Nut	M12
32.	AH142934	[1]	Hydraulic Cylinder
