约翰迪尔零件查询410D - BACKHOE, LOADER EXTENDIBLE DIPPERSTICK CYLINDER (For Use With 1.2M Extendible Dipperstick) ( - 787395)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 266 次

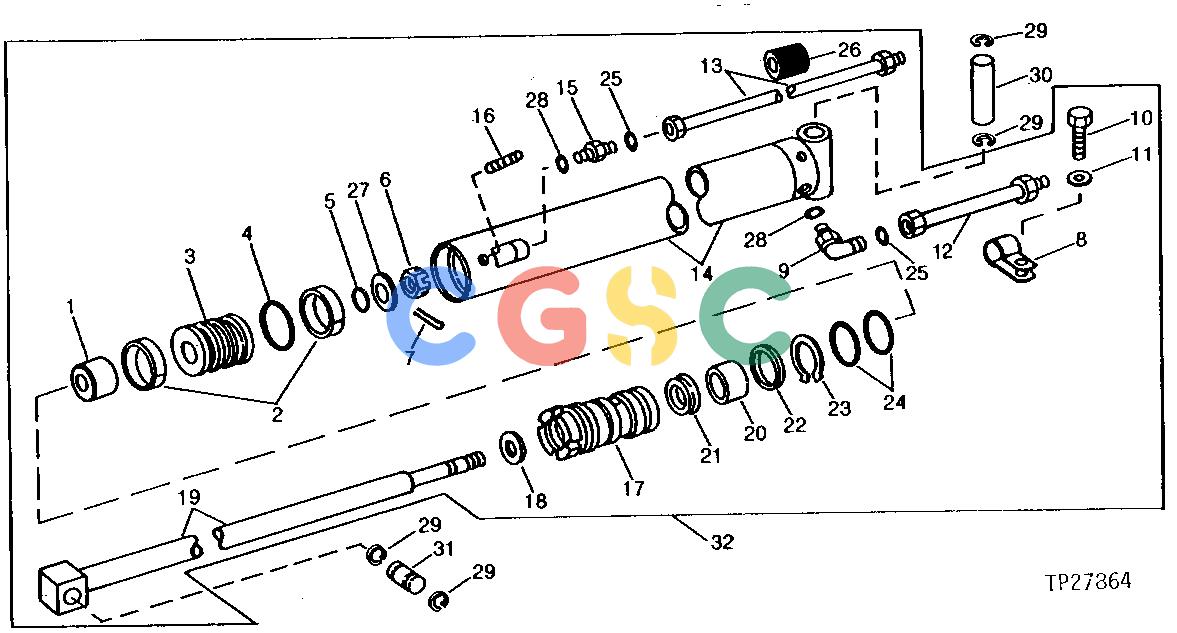

Pos.	Part No	Qty	Parts name	Comments
1.	T79781	[1]	Bushing
2.	........	[2]	Wear Ring	(AT79722 REPAIR KIT)
3.	T79782	[1]	Piston
4.	........	[1]	Seal	(AT79722 REPAIR KIT)
5.	A3190R	[1]	O-Ring	(AT79722 REPAIR KIT)
6.	14H875	[1]	Nut	7/8"
7.	34H284	[1]	Spring Pin	3/16" X 1-1/4"
8.	T14787	[1]	Clamp
9.	38H1405	[1]	Elbow Fitting
10.	19H2038	[1]	Cap Screw	3/8" X 1/2"
10.	28H1884	[1]	Spacer	0.493" X 0.675" X 1/2"
11.	12H304	[1]	Lock Washer	3/8"
11.	24H1308	[1]	Washer	13/32" X 1" X 0.134"
12.	AT84175	[1]	Adapter Fitting
13.	AT101064	[1]	Oil Line
14.	AT80098	[1]	Hydraulic Cylinder Barrel
15.	38H1317	[1]	Fitting
16.	22H897	[1]	Set Screw	1/4" X 1/4"
17.	T79719	[1]	Hydr. Cylinder Rod Guide
18.	........	[1]	Seal	(AT79722 REPAIR KIT)
19.	AT79723	[1]	Hydraulic Cylinder Rod
20.	T79720	[1]	Bushing
21.	........	[1]	Seal	(AT79722 REPAIR KIT)
22.	R35684	[1]	Back-Up Ring	(AT79722 REPAIR KIT)
23.	T41471	[1]	Snap Ring	(AT79722 REPAIR KIT)
24.	U12331	[2]	O-Ring	(AT79722 REPAIR KIT)
25.	T77932	[2]	O-Ring
26.	T100974	[1]	Grommet
27.	T19572	[1]	Washer
28.	R26375	[2]	O-Ring
29.	H35226	[4]	Snap Ring
30.	T113347	[1]	Pin
31.	B28568	[1]	Dowel Pin
32.	........	[1]	Hydraulic Cylinder	( AT101063 NO LONGER AVAILABLE) (SUB AH154784, AT167718, (2) AT164789 AND AT114218)
