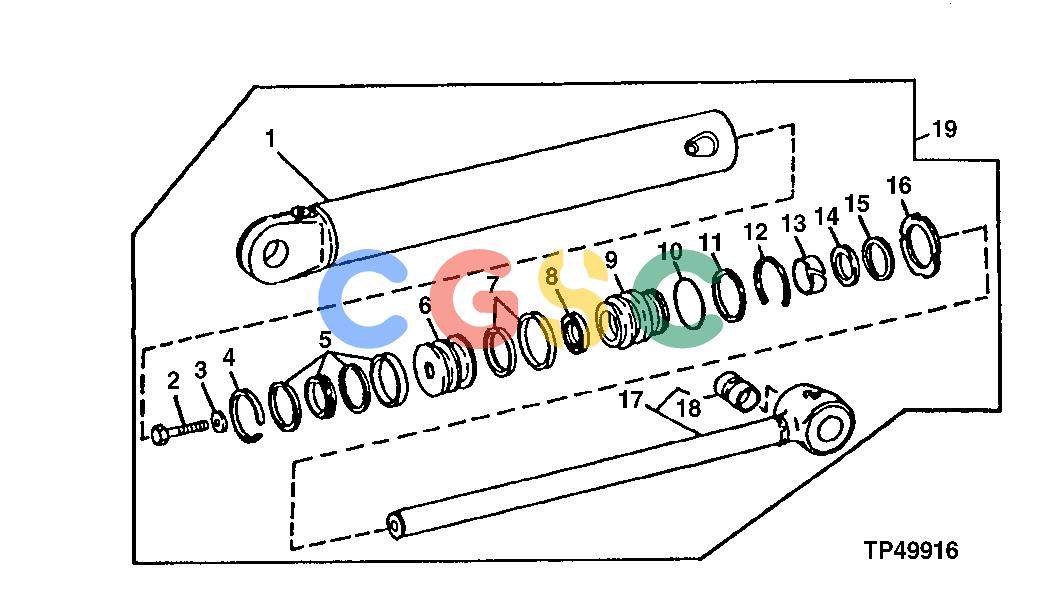

约翰迪尔零件查询410D - BACKHOE, LOADER REPLACEMENT STABILIZER CYLINDER (817459 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
569 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH143533
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 1. |
AH143534
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 2. |
19M8353
|
[1] |
Cap Screw
|
|
| 3. |
H145175
|
[1] |
Washer
|
|
| 4. |
R81775
|
[1] |
Wear Ring
|
|
| 5. |
RE20343
|
[1] |
Seal
|
|
| 6. |
H145456
|
[1] |
Piston
|
|
| 7. |
AH146561
|
[1] |
Seal
|
|
| 8. |
H152203
|
[1] |
Seal
|
|
| 9. |
H157978
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 10. |
F950R
|
[1] |
O-Ring
|
|
| 11. |
R81862
|
[1] |
Back-Up Ring
|
|
| 12. |
R81787
|
[1] |
Ring
|
|
| 13. |
H152794
|
[1] |
Wear Ring
|
|
| 14. |
RE24536
|
[1] |
Seal
|
|
| 15. |
AH146557
|
[1] |
Seal
|
|
| 16. |
R81793
|
[1] |
Nut
|
|
| 17. |
RE26577
|
[1] |
Hydraulic Cylinder Rod
|
|
| 18. |
R81971
|
[1] |
Bushing
|
|
| 19. |
AH147720
|
[1] |
Hydraulic Cylinder
|
|
| 19. |
AH147721
|
[1] |
Hydraulic Cylinder
|
|
