约翰迪尔零件查询410D - BACKHOE, LOADER Stabilizer Cylinder (AH135635, AH135636, AH143513, AH143514 Cylinders) ( - 817458)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 804 次

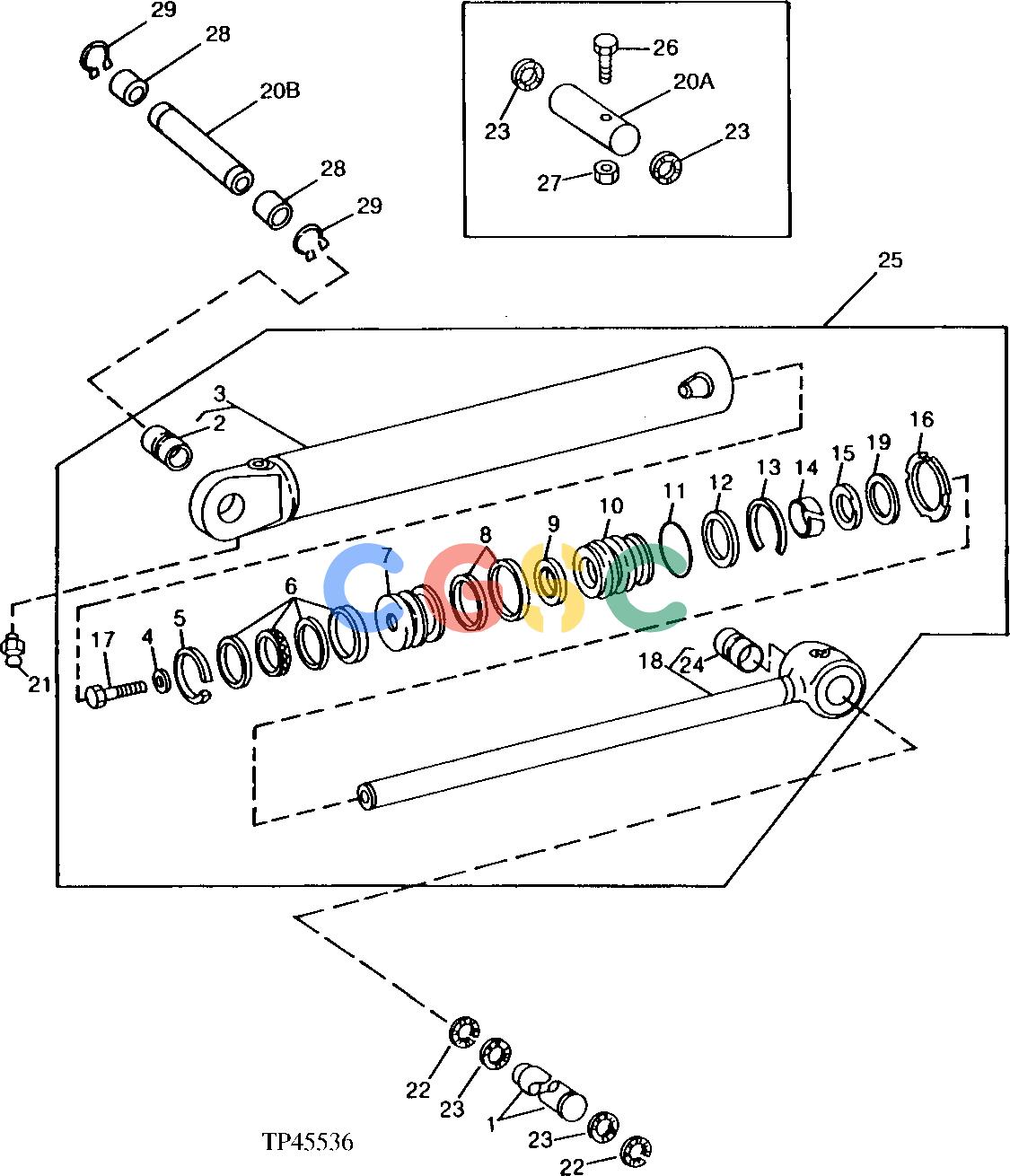

Pos.	Part No	Qty	Parts name	Comments
1.	T127437	[1]	Pin Fastener
2.	R81968	[1]	Bushing
2.	H144296	[1]	Bushing
3.	AH135638	[1]	Hydraulic Cylinder Barrel	LEFT SIDE
3.	AH143533	[1]	Hydraulic Cylinder Barrel	LEFT SIDE
3.	AH135639	[1]	Hydraulic Cylinder Barrel	RIGHT SIDE
3.	AH143534	[1]	Hydraulic Cylinder Barrel	RIGHT SIDE
4.	H145175	[1]	Washer
5.	R81775	[1]	Wear Ring	(BK)
6.	RE20343	[1]	Seal	(BK)
7.	H145456	[1]	Piston
8.	RE20757	[1]	Seal	(RK)
9.	R81973	[1]	Seal	(RK)
10.	........	[1]	Hydr. Cylinder Rod Guide	( R81972 NO LONGER USED) (SUB H157978 ) (ALSO ORDER AH210484)
11.	F950R	[1]	O-Ring
12.	R81862	[1]	Back-Up Ring	(BK)
13.	R81787	[1]	Ring
14.	R81975	[1]	Wear Ring	(RK)
15.	RE24536	[1]	Seal	(RK)
16.	R81793	[1]	Nut
17.	19M8353	[1]	Cap Screw	M30 X 80
18.	RE26577	[1]	Hydraulic Cylinder Rod
19.	R91731	[AR]	Ring	(BK)
20A.	T68296	[1]	Pin Fastener
20B.	T148346	[1]	Pin Fastener
21.	T162396	[2]	Lubrication Fitting	(SUB FOR JD7798)
22.	40M7166	[4]	Snap Ring
23.	24H1595	[AR]	Washer	2-1/16" X 3" X 0.075"
24.	R81971	[1]	Bushing
25.	........	[1]	Hydraulic Cylinder	LEFT SIDE ( AH135635, AH143513 NO LONGER AVAILABLE) (ORDER COMPONENTS)
25.	........	[1]	Hydraulic Cylinder	RIGHT SIDE ( AH135636, AH143514 NO LONGER AVAILABLE) (ORDER COMPONENTS)
26.	19M7949	[1]	Cap Screw	M12 X 100
27.	14M7319	[1]	Lock Nut	M12
28.	T150417	[2]	Spacer
29.	40M7066	[2]	Snap Ring
