约翰迪尔零件查询410D - BACKHOE, LOADER CONTROLLED LOWERING DEVISE, CROWD CYLINDER KITEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 711 次

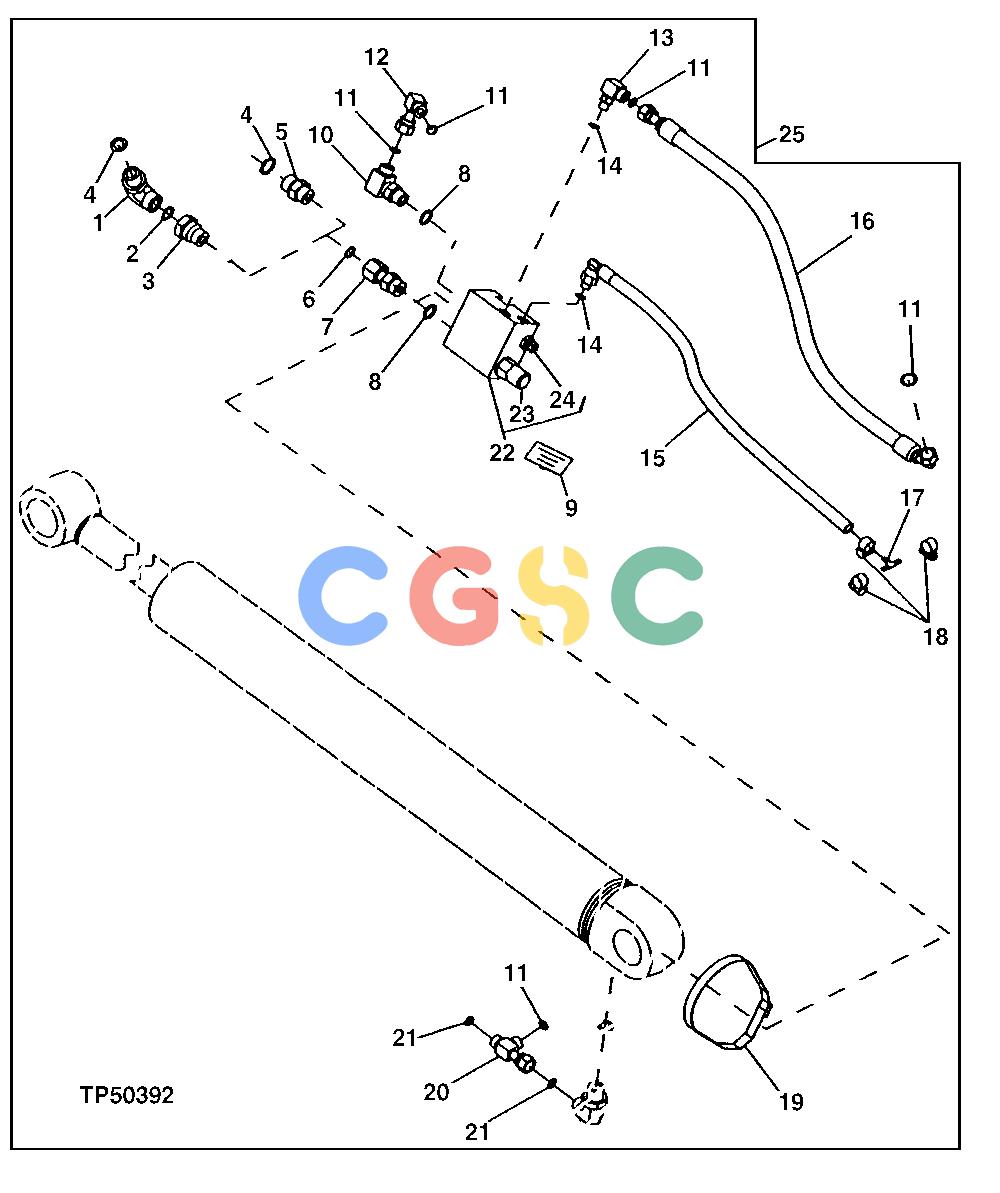

Pos.	Part No	Qty	Parts name	Comments
1.	38H1007	[1]	Elbow Fitting	(HEAVY LIFT)
2.	T77858	[1]	O-Ring
3.	38H1482	[1]	Reducer	(HEAVY LIFT)
4.	U12547	[2]	O-Ring
5.	38H1329	[1]	Adapter Fitting	(STANDARD)
6.	T77932	[1]	O-Ring
7.	38H1069	[1]	Fitting
8.	R26906	[2]	O-Ring
9.	T157549	[1]	Label
10.	38H1012	[1]	Elbow Fitting
11.	T77857	[4]	O-Ring
12.	38H1095	[1]	Elbow Fitting
13.	38H1314	[1]	Elbow Fitting
14.	R26448	[2]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
15.	AT173909	[1]	Hose
16.	AT101236	[1]	Hydraulic Hose - Fabricate	(HEAVY LIFT)
16.	AT159307	[1]	Hydraulic Hose - Fabricate	(STANDARD)
17.	M87795	[1]	Tee Fitting
18.	TY22462	[3]	Clamp	(SUB FOR AR21836, THIS APPLICATION ) (SUB FOR AR48236)
19.	TY22495	[1]	Hose Clamp	(HEAVY LIFT)
19.	TY22494	[1]	Hose Clamp	(STANDARD)
20.	38H1532	[1]	Tee Fitting
21.	T77858	[2]	O-Ring
22.	AT171833	[1]	Hyd Actuated Control Valve	CONTROLLED LOWERING DEVICE
23.	AT173883	[1]	Hyd Actuated Control Valve	(AT173887 KIT, COUNTERBALANCE SEAL) COUNTERBALANCE
24.	AT173884	[1]	Manual Hydraulic Valve	(AT173888 KIT, NEEDLE SEAL) NEEDLE
25.	........	[1]	Kit	( AT170532 NO LONGER AVAILABLE CROWD CONTROLLED LOWERING DEVICE
