约翰迪尔零件查询410E - BACKHOE, LOADER Steering Hydraulics (w/ MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 986 次

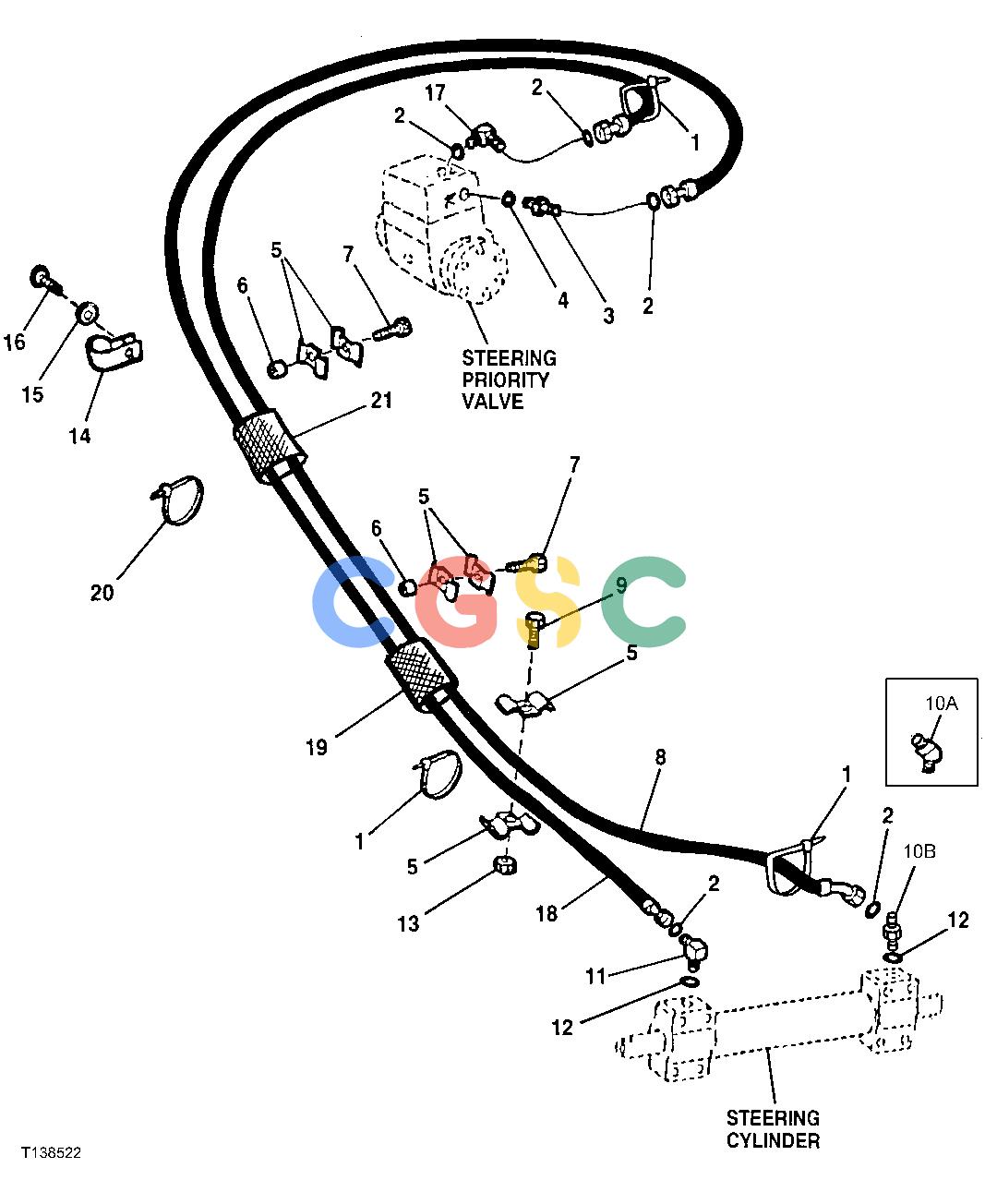

Pos.	Part No	Qty	Parts name	Comments
1.	R44302	[AR]	Tie Band
2.	T77613	[4]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
2.	T77613	[5]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
3.	38H1171	[1]	Adapter Fitting
3.	38H1171	[2]	Adapter Fitting
4.	R26375	[2]	O-Ring
5.	R27491	[6]	Clamp
6.	T126052	[2]	Spacer
7.	19M8853	[2]	Screw	M10 X 50
8.	AT172651	[1]	Hydraulic Hose - Fabricate	17.4752" X 2438 MM (96") X 17.4752"
9.	19M7881	[1]	Screw	M8 X 20
10A.	38H1045	[1]	Elbow Fitting
10B.	38H1160	[1]	Adapter Fitting
11.	38H1004	[1]	Elbow Fitting
12.	R26448	[2]	O-Ring
13.	14M7273	[1]	Nut	M8
14.	N205415	[1]	Clamp	(SUB FOR AH77714, THIS APPLICATION)
15.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
16.	19M7402	[1]	Cap Screw	M10 X 25
17.	38H1010	[1]	Elbow Fitting
17.	38H1094	[1]	Elbow Fitting
18.	AT172652	[1]	Hydraulic Hose - Fabricate	17.4752" X 2219 MM (87-1/2") X 17.4752"
19.	........	[1]	Sleeve	(T78606 BULK FABRIC CTL)
20.	R44302	[2]	Tie Band
21.	........	[1]	Sleeve	(T78606 BULK FABRIC CTL)
