约翰迪尔零件查询410E - BACKHOE, LOADER Steering Cylinder, W/O MFWD (780659 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 812 次

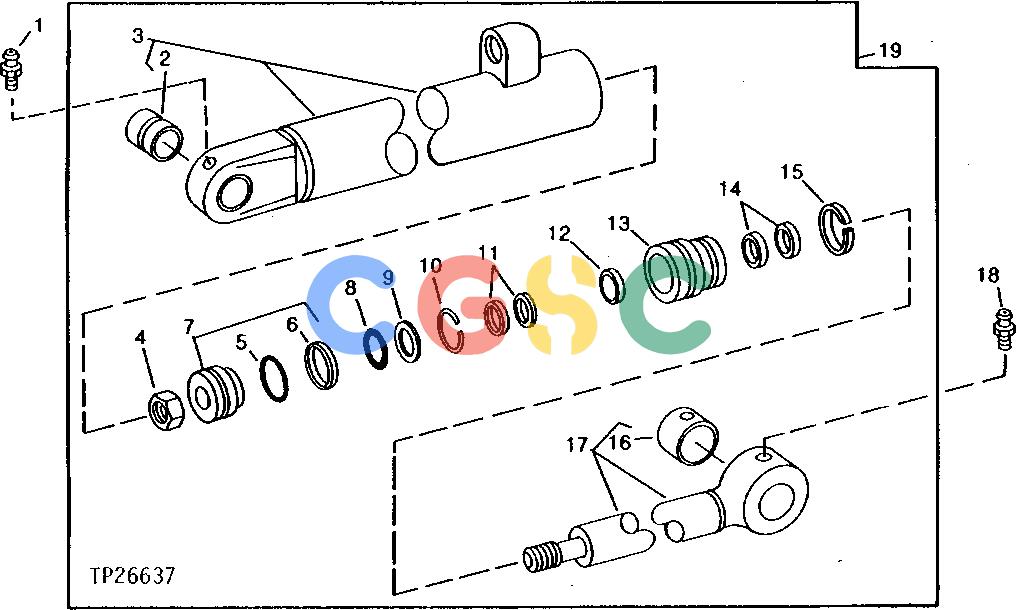

Pos.	Part No	Qty	Parts name	Comments
1.	JD7759	[1]	Lubrication Fitting
2.	R81854	[1]	Bushing
3.	AH134479	[1]	Hydraulic Cylinder Barrel
4.	R82570	[1]	Lock Nut
5.	R30200	[1]	O-Ring	(BK)
6.	R92208	[1]	Packing	(BK)
7.	AH135785	[1]	Piston	INCLUDES WEAR RINGS AND SEALS
7.	........	[2]	Wear Ring
7.	........	[1]	Seal	FACE
7.	........	[1]	Seal	INTERNAL
8.	R90267	[1]	O-Ring	(BK)
9.	R78393	[1]	Back-Up Ring	(BK)
10.	R88114	[1]	Snap Ring
11.	RE21846	[1]	Seal	(RK)
12.	R82566	[1]	Seal	(RK)
13.	........	[1]	Hydr. Cylinder Rod Guide	(H140830 NLA) (SUB H161330) (ALSO ORDER AH149810)
14.	RE24532	[1]	Seal	(RK)
15.	N34349	[1]	Snap Ring
16.	R72700	[1]	Bushing
17.	RE22415	[1]	Hydraulic Cylinder Rod
18.	T162396	[1]	Lubrication Fitting	(SUB FOR JD7798)
19.	........	[1]	Hydraulic Cylinder	( AH134478 NO LONGER AVAILABLE) (SUB AH154774)
...	RE30100	[1]	Hydraulic Cylinder Kit	(INCLUDES ALL (BK) PARTS (BORE))
...	RE21875	[1]	Hydraulic Cylinder Kit	(INCLUDES ALL (RK) PARTS (ROD))
