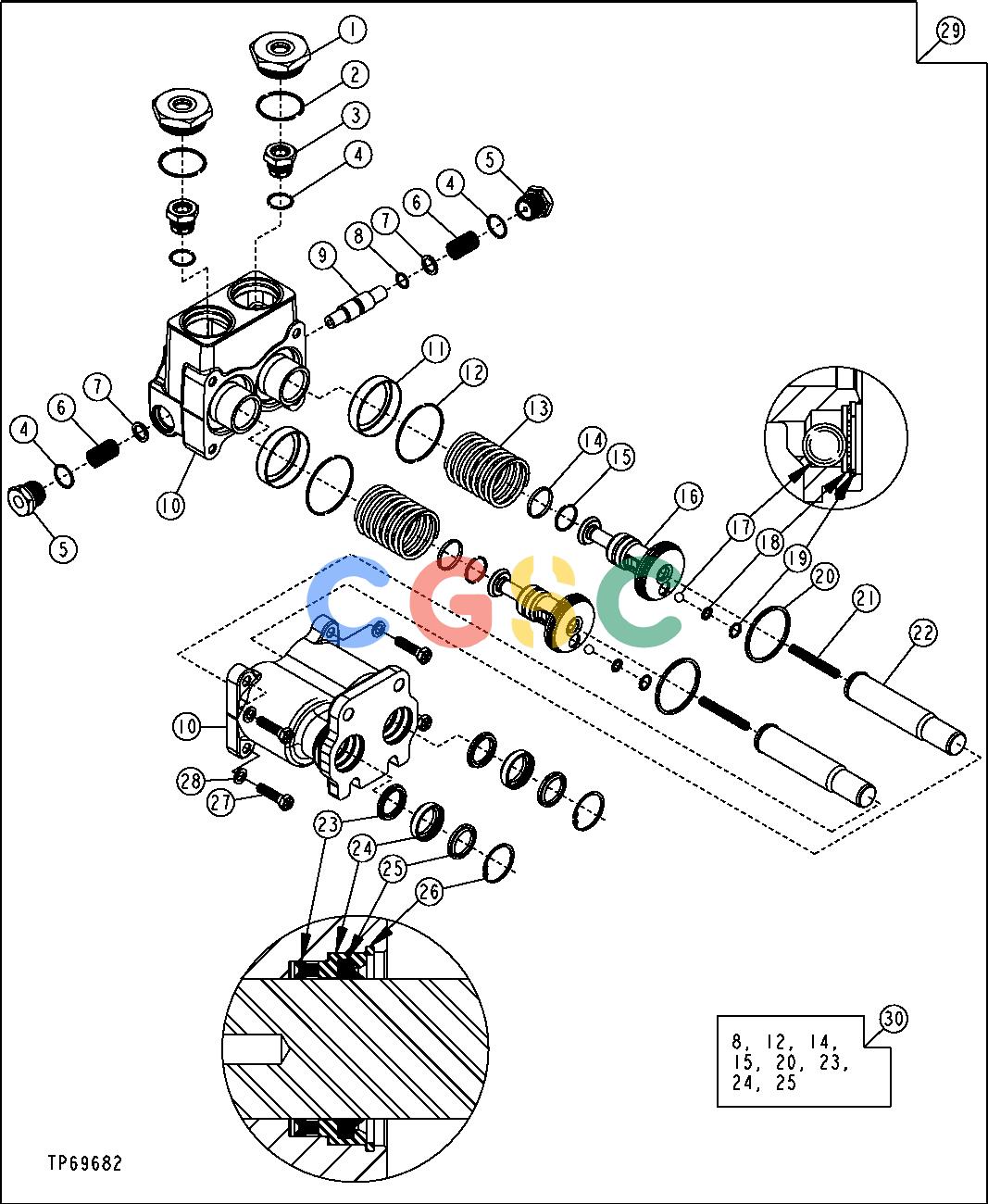

约翰迪尔零件查询410E - BACKHOE, LOADER Brake Valve Assembly (887379 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T183268
|
[2] |
Fitting
|
|
| 2. |
U13639
|
[2] |
O-Ring
|
|
| 3. |
AT188343
|
[2] |
Adapter Fitting
|
|
| 4. |
R26906
|
[4] |
O-Ring
|
|
| 5. |
T183275
|
[2] |
Plug
|
|
| 6. |
T183274
|
[2] |
Spring
|
|
| 7. |
T183273
|
[2] |
Washer
|
|
| 8. |
........
|
[2] |
Ring
|
|
| 9. |
T183272
|
[1] |
Piston
|
|
| 10. |
........
|
[1] |
Housing
|
|
| 11. |
T183271
|
[2] |
Retainer
|
|
| 12. |
........
|
[2] |
O-Ring
|
|
| 13. |
T183270
|
[2] |
Spring
|
|
| 14. |
........
|
[2] |
Seal
|
|
| 15. |
........
|
[2] |
Ring
|
|
| 16. |
T183276
|
[2] |
Piston
|
|
| 17. |
R26552
|
[2] |
Ball
|
|
| 18. |
T185078
|
[2] |
Lock Washer
|
|
| 19. |
R48523
|
[2] |
Snap Ring
|
|
| 20. |
T183362
|
[2] |
Piston Ring
|
|
| 21. |
T183269
|
[2] |
Spring
|
|
| 22. |
AT188344
|
[2] |
Push Rod
|
|
| 23. |
........
|
[2] |
Seal
|
|
| 24. |
T183357
|
[2] |
Retainer
|
|
| 25. |
........
|
[2] |
Seal
|
|
| 26. |
M41029
|
[2] |
Snap Ring
|
|
| 27. |
19H1849
|
[4] |
Cap Screw
|
|
| 28. |
T183310
|
[4] |
Washer
|
|
| 29. |
AT183394
|
[1] |
Manual Hydraulic Valve
|
|
| 30. |
AT192419
|
[1] |
Seal Kit
|
|
