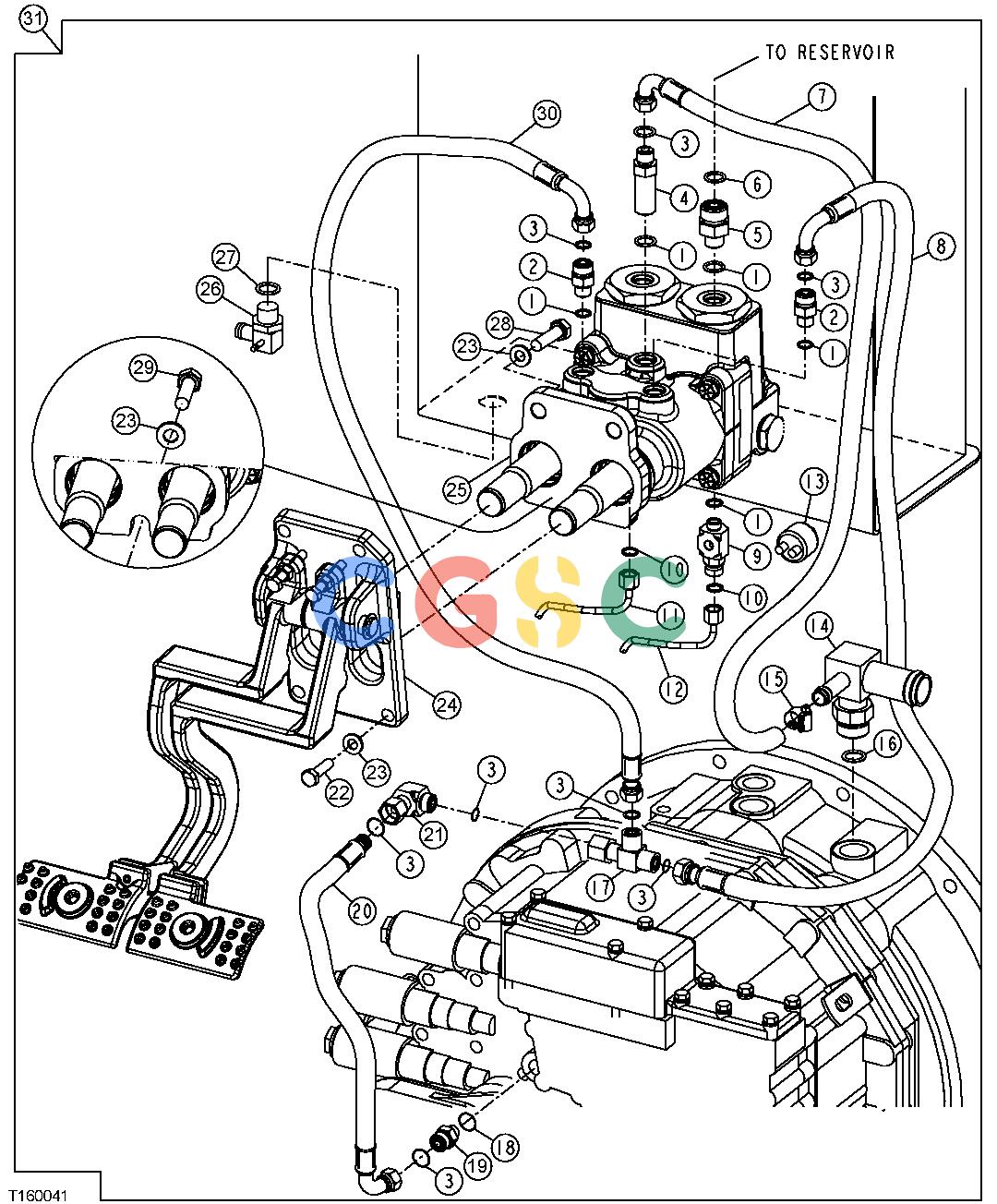

约翰迪尔零件查询410E - BACKHOE, LOADER Service Brake Hydraulics (887379 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 144 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26448	[7]	O-Ring
2.	38H1160	[2]	Adapter Fitting
3.	T77613	[8]	O-Ring
4.	38H1212	[1]	Adapter Fitting
5.	38H1173	[2]	Adapter Fitting
6.	T77857	[2]	O-Ring
7.	AT185097	[1]	Hydraulic Hose - Fabricate
8.	AT189086	[2]	Hydraulic Hose - Fabricate
9.	AT188238	[2]	Tee Fitting
10.	T77814	[2]	O-Ring
11.	AT185088	[1]	Brake Line	(LH)
12.	AT185089	[1]	Brake Line	(RH)
13.	R32548	[2]	Pressure Switch	BRAKE LIGHT PRESSURE SWITCH (NOT INCLUDED IN KIT)
14.	AT186236	[1]	Elbow Fitting	(SYNCHRO-SHUTTLE)
14.	AT186237	[1]	Tee Fitting	POWER SHIFT
15.	RE65978	[1]	Clamp	(SUB FOR AR21836, THIS APPLICATION)
16.	R26375	[1]	O-Ring	(SYNCHRO-SHUTTLE)
16.	R26906	[1]	O-Ring	POWER SHIFT
17.	AT189017	[1]	Tee Fitting
18.	R26286	[1]	O-Ring
19.	38H1575	[1]	Adapter Fitting
20.	AT189016	[1]	Hydraulic Hose - Fabricate	17.4752" X 285 MM (11-1/4") X 17.4752"
21.	38H1094	[1]	Elbow Fitting
22.	19M7550	[4]	Cap Screw	M10 X 35
23.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
24.	........	[1]	Pedal
25.	AT183394	[1]	Manual Hydraulic Valve
26.	AT187779	[1]	Tee Fitting
27.	U12547	[1]	O-Ring
28.	19M7662	[2]	Cap Screw	M10 X 30
29.	19M7550	[1]	Cap Screw	M10 X 35
30.	AT189086	[1]	Hydraulic Hose - Fabricate
31.	AT191085	[1]	Kit
