约翰迪尔零件查询410E - BACKHOE, LOADER Service Brake HydraulicsEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 939 次

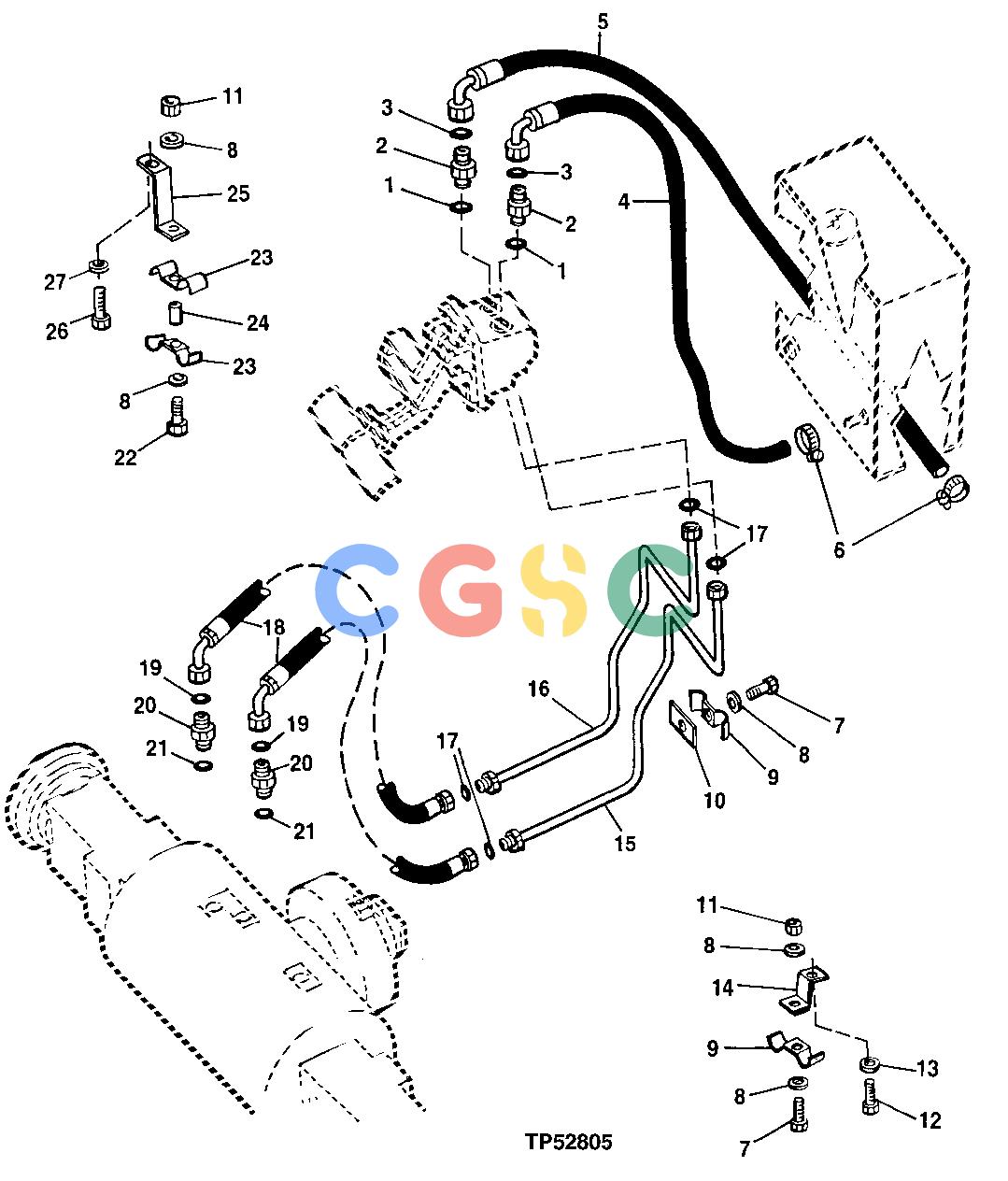

Pos.	Part No	Qty	Parts name	Comments
1.	R29936	[2]	O-Ring
2.	38H1176	[2]	Adapter Fitting
3.	T77857	[2]	O-Ring
4.	AT175372	[1]	Hydraulic Hose - Fabricate
5.	AT175373	[1]	Hydraulic Hose - Fabricate	13/16" X 1109 MM (43-3/4") X 13/16"
6.	TY22462	[2]	Clamp	(SUB FOR AR48236)
7.	19M7881	[2]	Screw	M8 X 20
8.	24M7238	[5]	Washer	8.700 X 17 X 2 MM
9.	R27491	[2]	Clamp
10.	T50390	[1]	Strap
11.	14M7273	[2]	Nut	M8
12.	19M8425	[1]	Cap Screw	M6 X 16
13.	24M7100	[1]	Washer	6.600 X 22 X 2 MM
14.	T159020	[1]	Strap
15.	AT173743	[1]	Brake Line
15.	AT185089	[1]	Brake Line
16.	AT173742	[1]	Brake Line
16.	AT185088	[1]	Brake Line
17.	T77814	[4]	O-Ring
18.	AT174746	[2]	Hydraulic Hose - Fabricate	9/16" X 514 MM (20-1/4") X 17.4752"
19.	T77613	[2]	O-Ring
20.	38H1160	[2]	Adapter Fitting
21.	R26448	[2]	O-Ring
22.	19M7922	[1]	Cap Screw	M8 X 40
23.	R46919	[2]	Half Clamp
24.	28H3392	[1]	Washer	0.364" X 0.540" X 5/16"
25.	T158245	[1]	Strap
26.	19M7938	[1]	Cap Screw	M10 X 20
27.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
