约翰迪尔零件查询410E - BACKHOE, LOADER Main Hydraulic System ReservoirEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 930 次

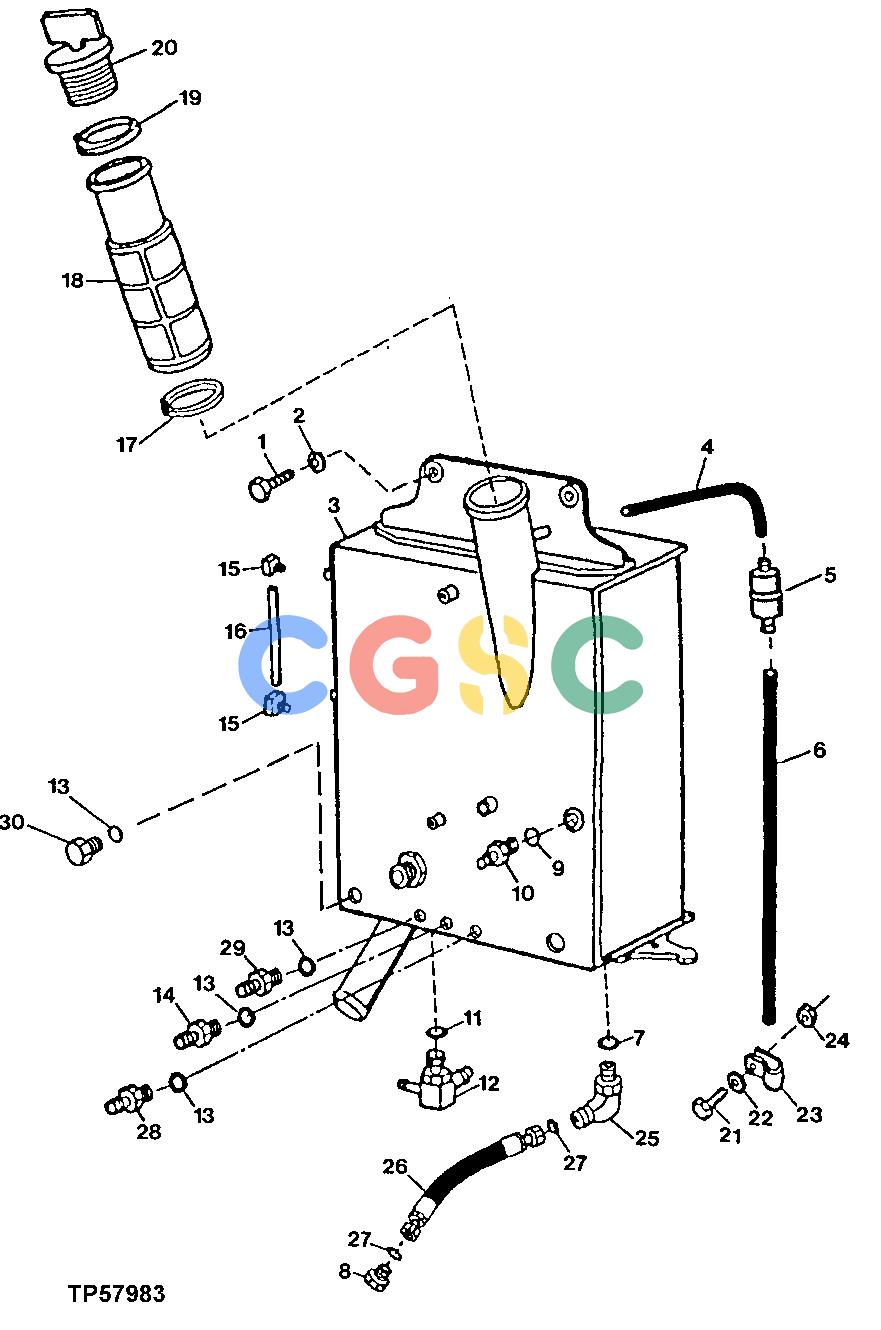

Pos.	Part No	Qty	Parts name	Comments
1.	19M7572	[3]	Cap Screw	M10 X 45
2.	24M7296	[3]	Washer	10.500 X 30 X 2.500 MM
3.	AT185100	[1]	Reservoir	(SUB FOR AT172646 AND AT183381) (ALSO ORDER AT184137, AT184288, 38H1049, T76938 AND R29936)
3.	AT185100	[1]	Reservoir	(SUB FOR AT184227)
4.	........	[AR]	Hose	51MM (MAKE FROM M87571 BULK MATERIAL, CTL)
5.	AT101565	[1]	Air Filter	INSTALL WITH FLOW ARROW POINTING TOWARD RESERVOIR BREATHER
6.	........	[AR]	Hose	1753MM (MAKE FROM M87571 BULK MATERIAL, CTL
7.	U12547	[1]	O-Ring
8.	38H1148	[1]	Fitting Plug
9.	R28782	[1]	O-Ring
10.	AT107633	[1]	Hose Fitting
11.	U12547	[1]	O-Ring
12.	AT187779	[1]	Tee Fitting	(SUB FOR AT174659)
13.	R26375	[2]	O-Ring
14.	T38282	[1]	Hose Fitting
15.	N115724	[2]	Elbow Fitting
16.	........	[AR]	Oil Tube	160MM (MAKE FROM T107253 BULK MATERIAL, CTL)
17.	M596T	[1]	Snap Ring
18.	AT161638	[1]	Strainer
19.	T39155	[1]	Snap Ring
20.	AT174743	[1]	Filler Cap
21.	19M7662	[1]	Cap Screw	M10 X 30
22.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
23.	T102934	[1]	Clamp
24.	14M7274	[1]	Nut	M10
25.	38H1404	[1]	Elbow Fitting
26.	AT179137	[1]	Hydraulic Hose - Fabricate
27.	T77932	[2]	O-Ring
28.	R68664	[1]	Fitting
29.	AT176308	[1]	Switch	HYDRAULIC OIL TEMPERATURE
30.	R39112	[1]	Plug
