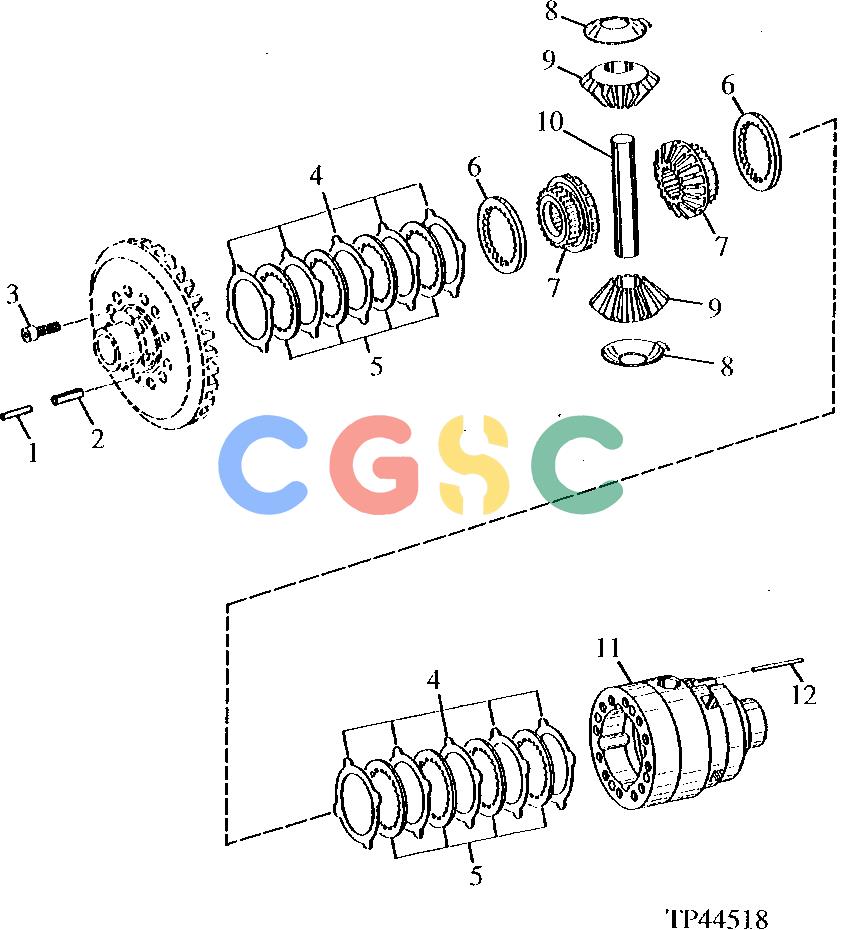

约翰迪尔零件查询410G - BACKHOE, LOADER Limited Slip Differential (w/ MFWD)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
34M7224
|
[4] |
Spring Pin
|
|
| 2. |
L100158
|
[4] |
Spring Pin
|
|
| 3. |
19M8533
|
[12] |
Screw
|
|
| 4. |
L100150
|
[AR] |
Disk With Outer Spline
|
|
| 4. |
L100151
|
[AR] |
Disk With Outer Spline
|
|
| 4. |
L100152
|
[AR] |
Disk With Outer Spline
|
|
| 5. |
L100153
|
[8] |
Disk With Inner Spline
|
|
| 6. |
L100154
|
[2] |
Thrust Washer
|
|
| 7. |
T151075
|
[2] |
Bevel Gear Drive
|
|
| 8. |
L60103
|
[2] |
Thrust Washer
|
|
| 9. |
T116851
|
[2] |
Bevel Gear
|
|
| 10. |
L60104
|
[1] |
Pin Fastener
|
|
| 11. |
L112197
|
[1] |
Housing
|
|
| 12. |
34M5723
|
[1] |
Spring Pin
|
|
