约翰迪尔零件查询410G - BACKHOE, LOADER Transmission Control Valve Group (Power Shift)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 355 次

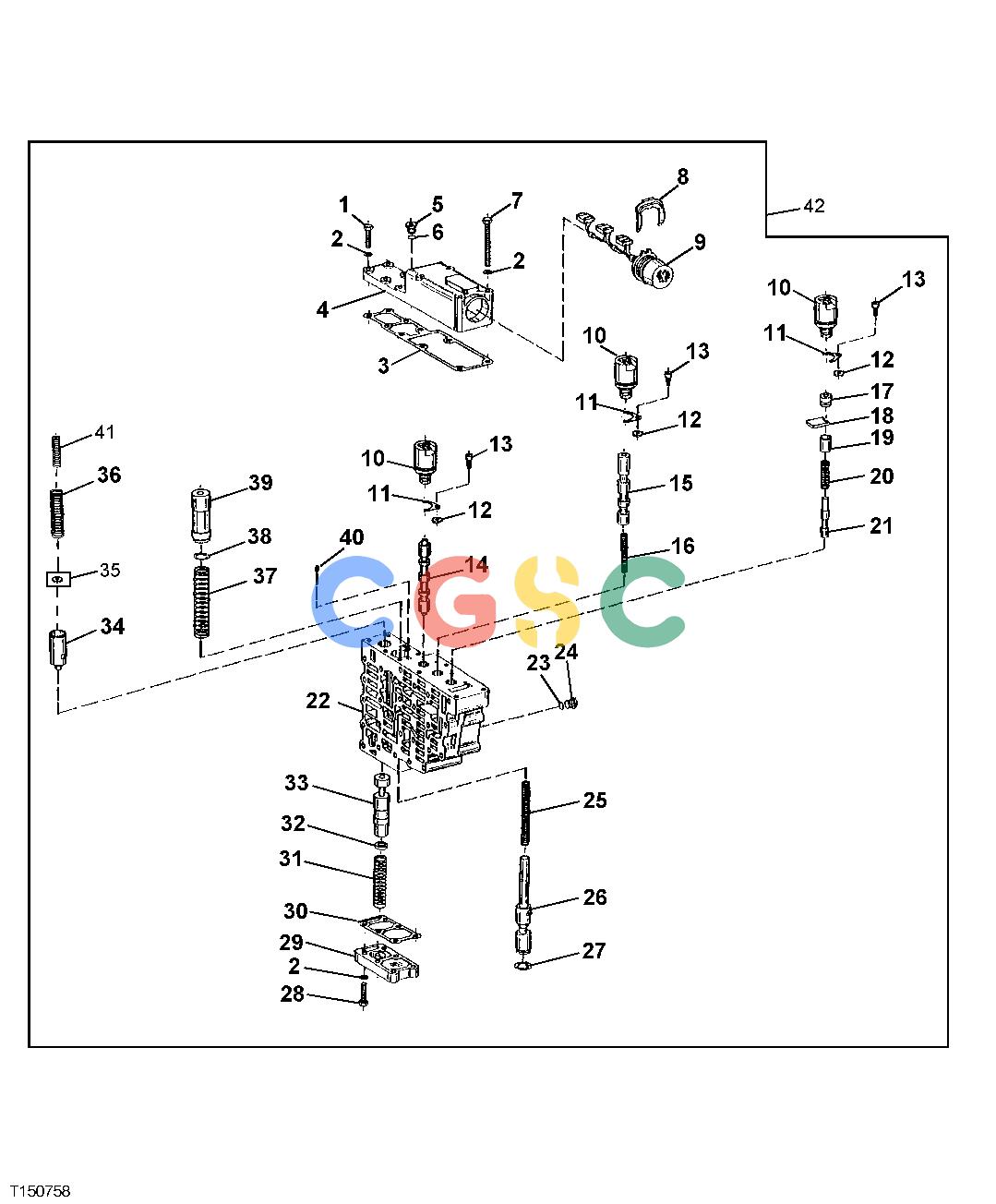

Pos.	Part No	Qty	Parts name	Comments
1.	T159593	[6]	Cap Screw
2.	T161204	[16]	Washer
3.	T159604	[1]	Gasket
4.	T185606	[1]	Cover
5.	T161194	[3]	Plug
6.	L11698	[3]	O-Ring
7.	T159607	[4]	Cap Screw
8.	T161207	[1]	Clamp
9.	AT179492	[1]	Wiring Harness
10.	AT179491	[3]	Solenoid Valve	FORWARD, NEUTRAL AND REVERSE
11.	T144486	[3]	Plate
12.	T144487	[3]	Washer
13.	T164693	[3]	Screw
14.	AT182947	[1]	Piston
15.	T164578	[1]	Piston
16.	T159596	[1]	Spring
17.	T159599	[1]	Plug
18.	T159600	[1]	Plate
19.	T164585	[1]	Spacer
20.	T159598	[1]	Spring
21.	T159597	[1]	Piston
22.	T159582	[1]	Housing
23.	L11698	[5]	O-Ring
24.	T161194	[5]	Plug
25.	T159589	[1]	Spring
26.	T159587	[1]	Piston
27.	T159588	[1]	Lock Washer
28.	T159593	[6]	Cap Screw
29.	T159592	[1]	Cover
30.	T159591	[1]	Gasket
31.	T159586	[1]	Spring
32.	T161200	[1]	Spacer	2.4 MM
32.	T161199	[1]	Spacer	2.8 MM
32.	T161198	[1]	Spacer	3.2 MM
32.	T161197	[1]	Spacer	3.6 MM
33.	T164579	[1]	Piston
34.	........	[1]	Piston	(SUB T188172 AND T188173 AND T159583 NLA)
34.	T188172	[1]	Piston
35.	........	[1]	Spacer	(SUB T188172 AND T188173 AND T161196 NLA)
36.	T159584	[1]	Spring
37.	T161202	[1]	Spring
38.	T164584	[1]	Spacer	.2 MM
38.	T164583	[1]	Spacer	.3 MM
38.	T164582	[1]	Spacer	.5 MM
38.	T161203	[1]	Shim	1 MM
38.	T164581	[1]	Spacer	2 MM
39.	T162947	[1]	Piston
40.	T164577	[1]	Orifice
41.	T188173	[1]	Spring
42.	AT195753	[1]	Hyd Actuated Control Valve	(SUB FOR AT183972)
