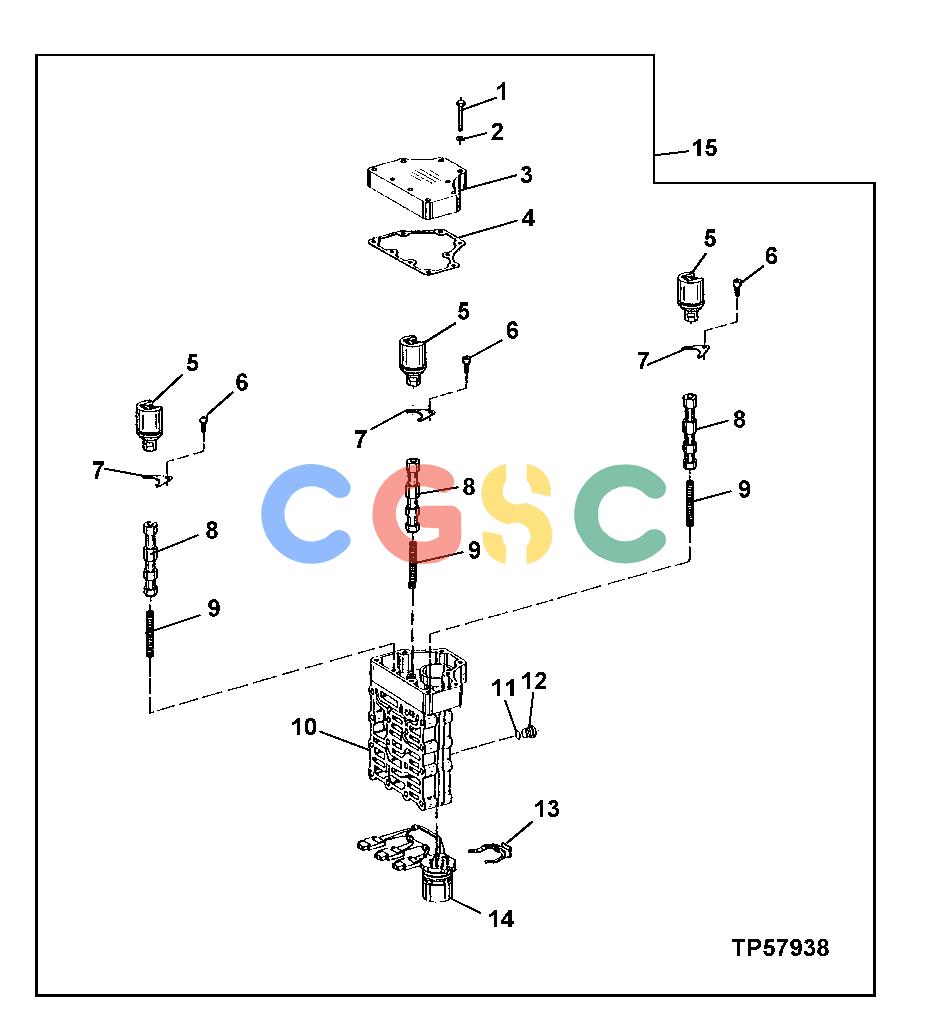

约翰迪尔零件查询410G - BACKHOE, LOADER Range Shift Valve GroupEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T166066
|
[9] |
Cap Screw
|
|
| 2. |
T164702
|
[9] |
Washer
|
|
| 3. |
T164611
|
[1] |
Cover
|
|
| 4. |
T164612
|
[1] |
Gasket
|
|
| 5. |
AT179491
|
[3] |
Solenoid Valve
|
|
| 6. |
T164693
|
[3] |
Screw
|
|
| 7. |
T144486
|
[3] |
Plate
|
|
| 8. |
T164610
|
[3] |
Piston
|
|
| 9. |
T159596
|
[3] |
Spring
|
|
| 10. |
T222405
|
[1] |
Housing
|
|
| 11. |
L11698
|
[4] |
Ring
|
|
| 12. |
T161194
|
[4] |
Plug
|
|
| 13. |
T161207
|
[1] |
Clamp
|
|
| 14. |
AT184007
|
[1] |
Wiring Harness
|
|
| 15. |
AT336903
|
[1] |
Hyd Actuated Control Valve
|
|
