约翰迪尔零件查询410G - BACKHOE, LOADER Parking Brake ( - 217496)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 994 次

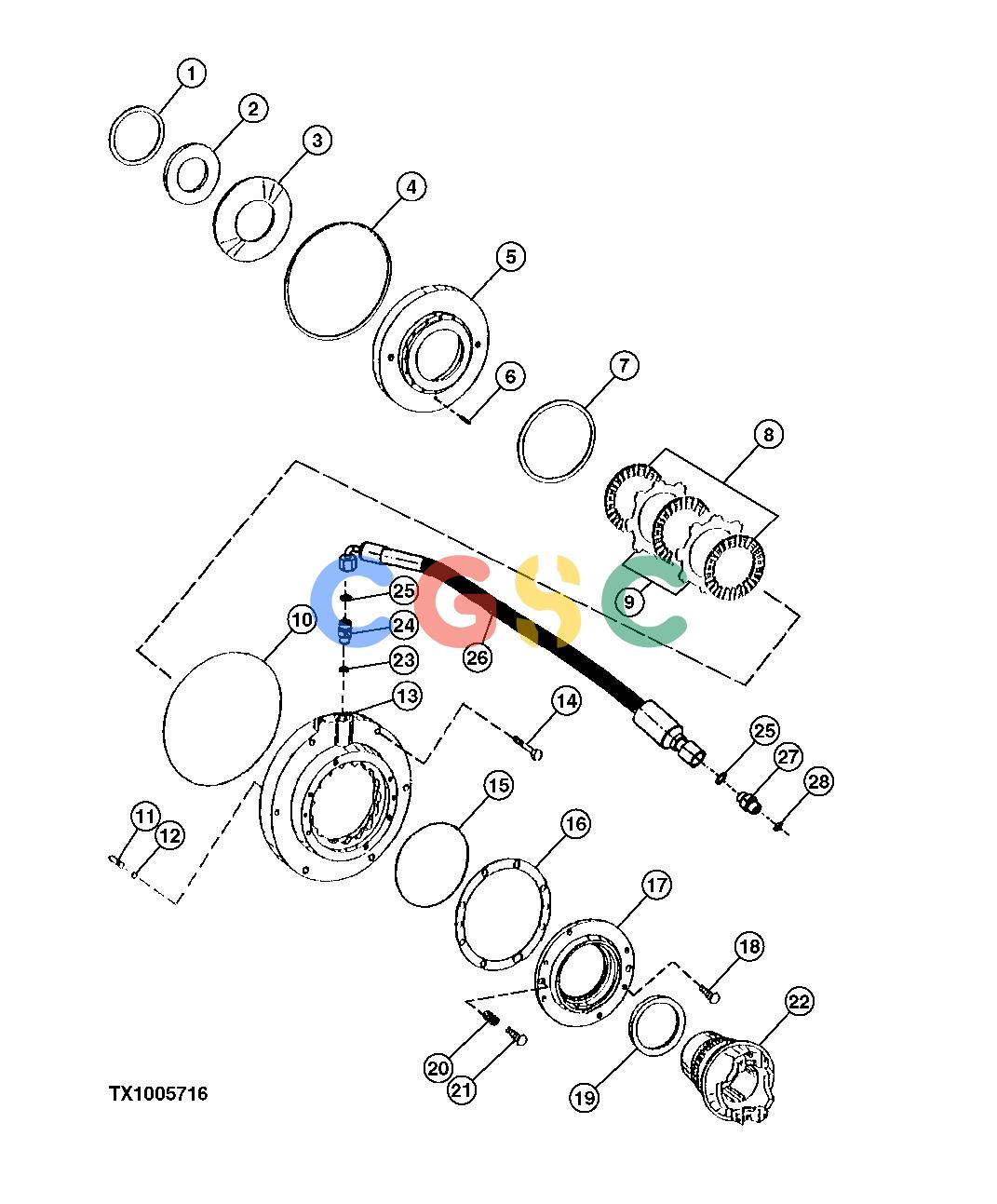

Pos.	Part No	Qty	Parts name	Comments
1.	T159479	[1]	Shim	0.6 MM (.024 IN.)
1.	T159480	[1]	Shim	0.7 MM (.026 IN.)
1.	T159481	[1]	Shim	0.8 MM (.031 IN.)
1.	T159482	[1]	Shim	0.9 MM (.035 IN.)
1.	T159483	[1]	Shim	2.0 MM (.079 IN.)
2.	T159484	[1]	Support
3.	T159485	[1]	Disk Spring
4.	T159478	[1]	Seal
5.	T159476	[1]	Piston
6.	T159473	[1]	Spring Pin
7.	T159477	[1]	Seal
8.	T159475	[3]	Clutch Disk
9.	T159474	[2]	Plate
10.	T159472	[1]	O-Ring
11.	T159486	[2]	Pin
12.	T159487	[2]	O-Ring
13.	T159471	[1]	Housing
14.	19M7935	[6]	Cap Screw	M10 X 55
15.	T174398	[1]	O-Ring	(SUB FOR T159491)
16.	T159492	[1]	Shim	1.0 MM (.039 IN.
16.	T159493	[1]	Shim	0.5 MM (.020 IN.)
16.	T159494	[1]	Shim	0.3 MM (.012 IN.)
16.	T159495	[1]	Shim	0.1 MM (.004 IN.)
16.	T159496	[1]	Shim	0.15 MM (.006 IN.)
16.	T159497	[1]	Shim	0.2 MM (.008 IN.)
17.	T159490	[1]	Cover
18.	19M8761	[6]	Screw	M10 X 22
19.	AT179537	[1]	Seal
20.	T159502	[2]	Lock Nut	MANUAL RELEASE - PARK BRAKE
21.	T159499	[2]	Cap Screw	MANUAL RELEASE - PARK BRAKE
22.	T158438	[1]	Universal Joint Yoke
23.	R26906	[1]	O-Ring
24.	38H1162	[1]	Adapter Fitting
24.	38H1047	[1]	Elbow Fitting	45°
25.	T77932	[2]	O-Ring
26.	AT179899	[1]	Hydraulic Hose - Fabricate	1" X 655 MM (25-3/4") X 1"
27.	38H1317	[1]	Fitting
28.	R26375	[1]	O-Ring
