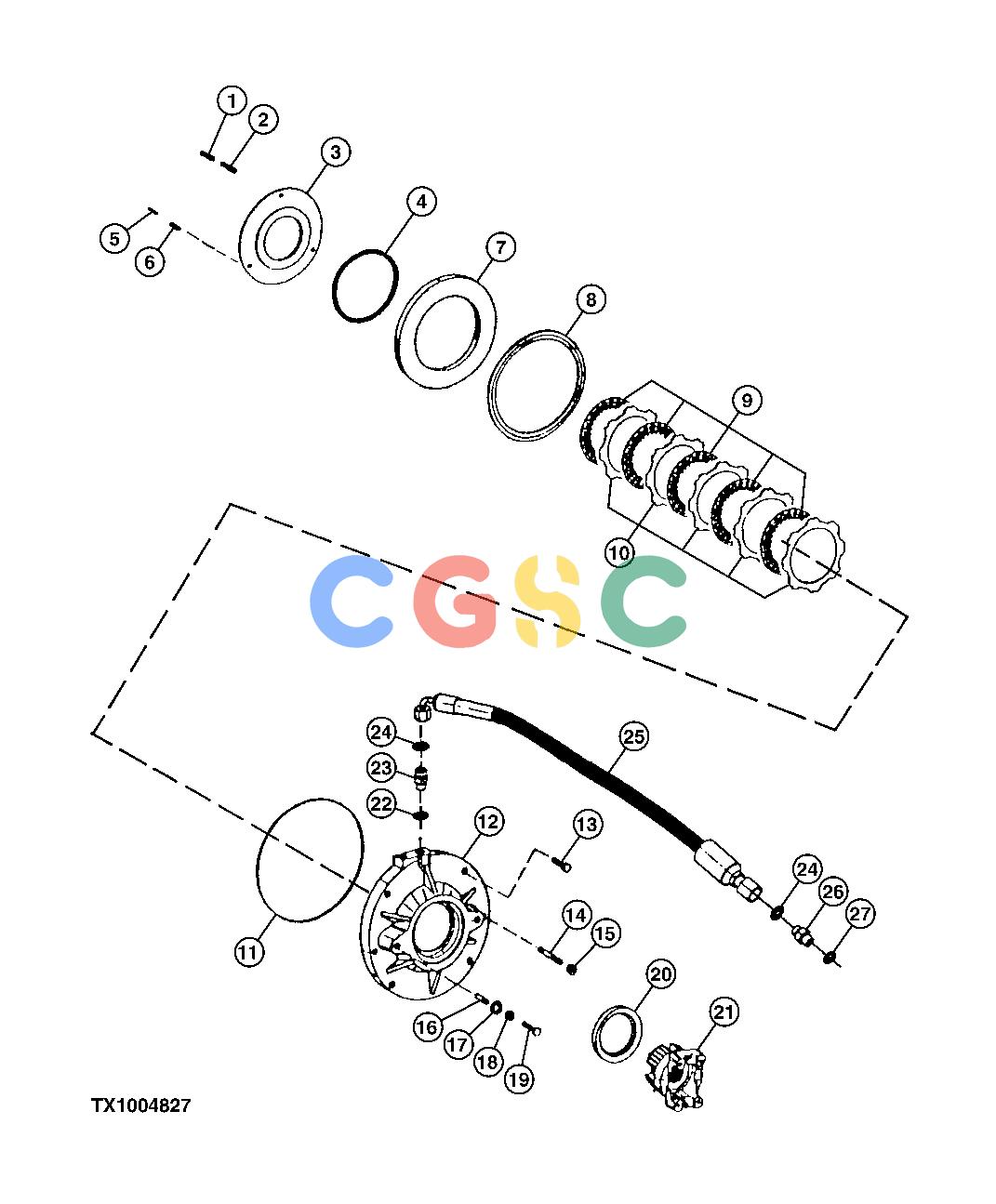

约翰迪尔零件查询410G - BACKHOE, LOADER Parking Brake (217497 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T164917
|
[14] |
Compression Spring
|
|
| 2. |
T164916
|
[14] |
Compression Spring
|
|
| 3. |
T164915
|
[2] |
Plate
|
|
| 4. |
T159477
|
[1] |
Seal
|
|
| 5. |
T164911
|
[1] |
Pin
|
|
| 6. |
T159359
|
[2] |
Spring Pin
|
|
| 7. |
T164914
|
[1] |
Piston
|
|
| 8. |
T159478
|
[1] |
Seal
|
|
| 9. |
T159475
|
[3] |
Clutch Disk
|
|
| 10. |
T159474
|
[3] |
Plate
|
|
| 11. |
T164909
|
[1] |
O-Ring
|
|
| 12. |
T188234
|
[1] |
Housing
|
|
| 13. |
19M7179
|
[4] |
Cap Screw
|
|
| 14. |
T164912
|
[2] |
Stud
|
|
| 15. |
14M7274
|
[2] |
Nut
|
|
| 16. |
T228996
|
[2] |
Pin
|
|
| 17. |
T159487
|
[2] |
O-Ring
|
|
| 18. |
T159502
|
[2] |
Lock Nut
|
|
| 19. |
T164922
|
[2] |
Screw
|
|
| 20. |
AT179537
|
[1] |
Seal
|
|
| 21. |
T188240
|
[1] |
Universal Joint Yoke
|
|
| 22. |
R26906
|
[1] |
O-Ring
|
|
| 23. |
38H1162
|
[1] |
Adapter Fitting
|
|
| 24. |
T77932
|
[2] |
O-Ring
|
|
| 25. |
AT179899
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 26. |
38H1317
|
[1] |
Fitting
|
|
| 27. |
R26375
|
[1] |
O-Ring
|
|
