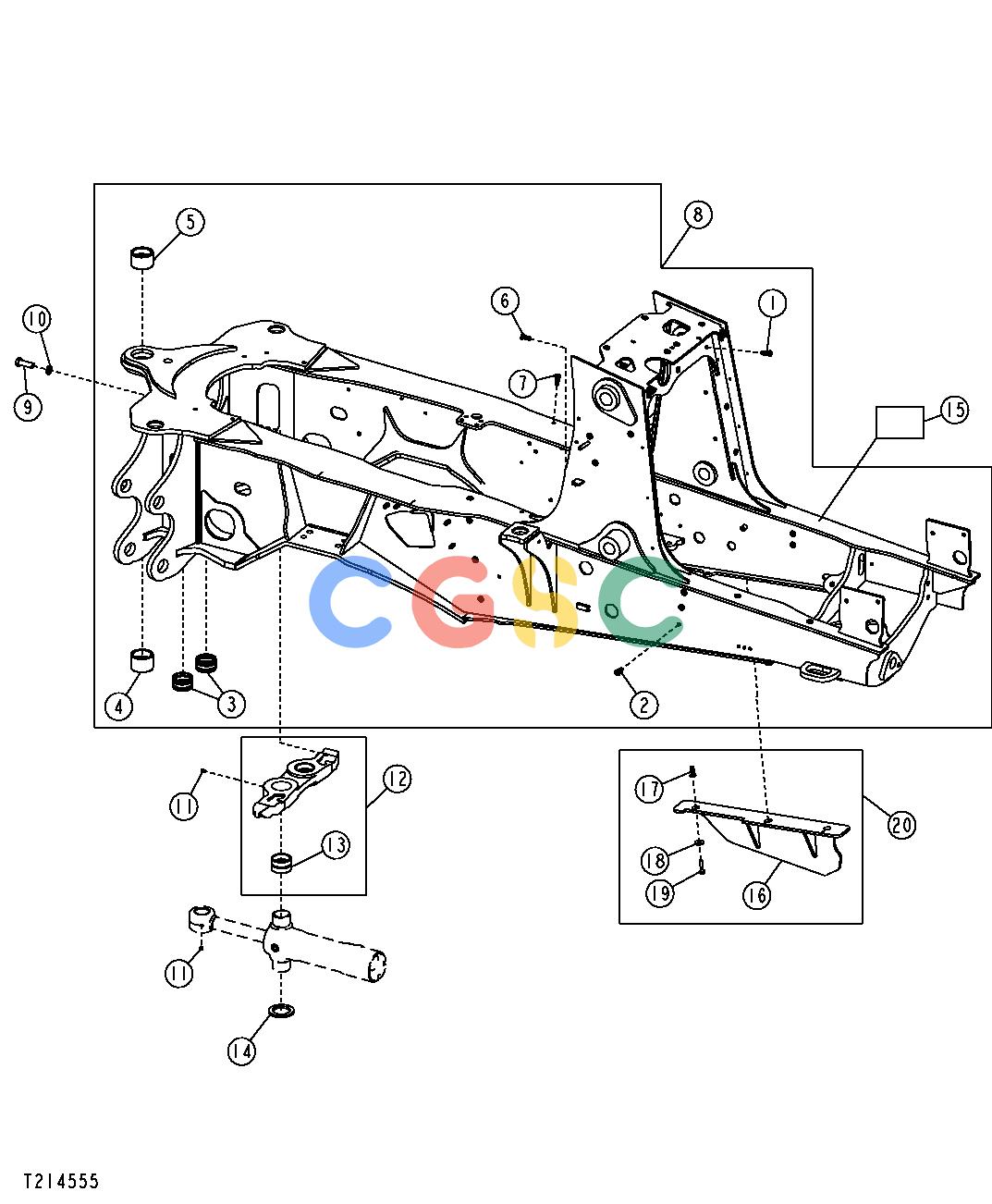

约翰迪尔零件查询410G - BACKHOE, LOADER Main FrameEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T148411
|
[AR] |
Nut
|
|
| 2. |
T148409
|
[23] |
Nut
|
|
| 3. |
T147070
|
[2] |
Bushing
|
|
| 4. |
T154643
|
[1] |
Bushing
|
|
| 5. |
T154621
|
[1] |
Bushing
|
|
| 6. |
T148410
|
[1] |
Nut
|
|
| 7. |
T150768
|
[AR] |
Nut
|
|
| 8. |
AT197261
|
[1] |
Main Frame
|
|
| 9. |
19M8224
|
[4] |
Cap Screw
|
|
| 10. |
T83426
|
[4] |
Washer
|
|
| 11. |
T162396
|
[6] |
Lubrication Fitting
|
|
| 12. |
AT169804
|
[1] |
Trunnion
|
|
| 13. |
T153303
|
[2] |
Bushing
|
|
| 14. |
T148387
|
[2] |
Washer
|
|
| 15. |
T146102
|
[1] |
Label
|
|
| 16. |
AT315263
|
[1] |
Guard
|
|
| 17. |
T148410
|
[3] |
Nut
|
|
| 18. |
24M7226
|
[3] |
Washer
|
|
| 19. |
19M7806
|
[3] |
Screw
|
|
| 20. |
AT323348
|
[1] |
Kit
|
|
