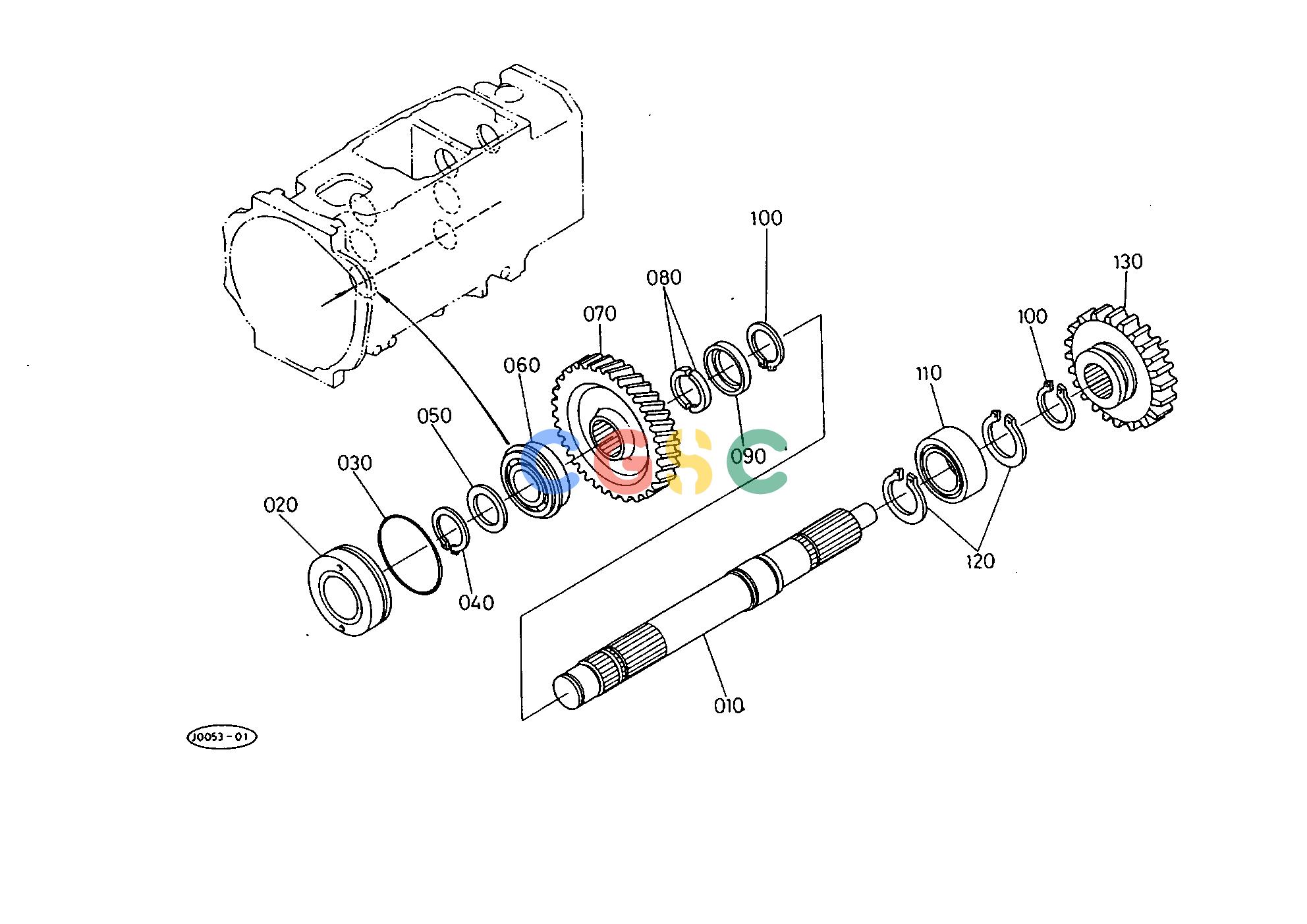

久保田零件查询T05500 PTO COUNTER SHAFT 1 (DC) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243025110
|
[1] |
SHAFT PTO CONTER
|
3.0580(lbs); 1.390
|
| 020. |
3824021650
|
[1] |
COVER BEARING
|
0.1980(lbs); 0.090
|
| 030. |
0481150550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 040. |
3715021551
|
[1] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 050. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 060. |
0815106205
|
[1] |
BEARING BALL
|
0.2882(lbs); 0.131
|
| 070. |
3243025120
|
[1] |
GEAR
|
1.8700(lbs); 0.850
|
| 080. |
3135125220
|
[2] |
COLLAR
|
0.0110(lbs); 0.005
|
| 090. |
3135125230
|
[1] |
COLLAR
|
0.0264(lbs); 0.012
|
| 100. |
0461200280
|
[2] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 110. |
3534025380
|
[1] |
BEARING ROLLER
|
0.3850(lbs); 0.175
|
| 120. |
3135121930
|
[2] |
CIR-CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 130. |
3135125170
|
[1] |
GEAR
|
1.1440(lbs); 0.520
|
