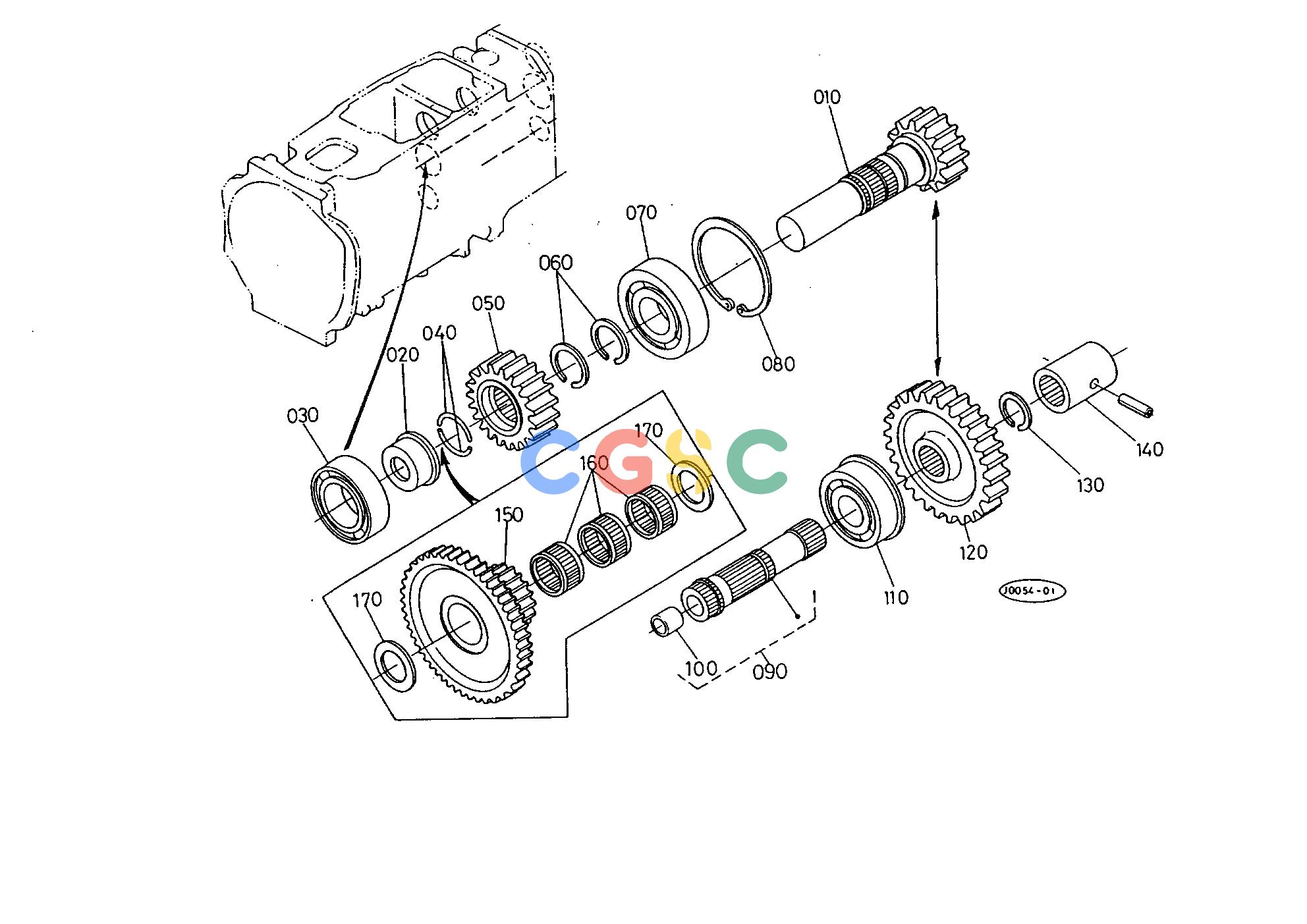

Pos.	Part No	Qty	Parts name	Comments
010.	3135125290	[1]	SHAFT PTO GEAR	13T 1.9580(lbs); 0.890
020.	3135125240	[1]	SPACER BEARING	0.1760(lbs); 0.080
030.	0810106007	[1]	BEARING BALL	0.3520(lbs); 0.160
040.	3135125270	[2]	CLIP	0.0066(lbs); 0.003
050.	3135125260	[1]	GEAR	0.6820(lbs); 0.310
060.	3843025540	[2]	CIR-CLIP EXTERNAL	0.0088(lbs); 0.004
070.	3826022160	[1]	BEARING BALL	; <=56720 0.0000(lbs); 0.000
070.	3243025000	[1]	BEARING BALL	; =>56721 0.7700(lbs); 0.350
080.	0461100720	[1]	CIR-CLIP INTERNAL	0.0396(lbs); 0.018
090.	3242025150	[1]	ASSY COUNTERSHAFT	0.0000(lbs); 0.000
100.	3135121830	[1]	BUSH	0.0110(lbs); 0.005
110.	0815106305	[1]	BEARING BALL	0.5126(lbs); 0.233
120.	3135125190	[1]	GEAR	29T 0.0000(lbs); 0.000
130.	3843021550	[1]	CIR-CLIP EXTERNAL	0.0110(lbs); 0.005
140.	3715021680	[1]	COUPLING	; <=56613 0.0000(lbs); 0.000
140.	3715021682	[1]	COUPLING	; =>56614 0.5280(lbs); 0.240
150.	3135121670	[1]	GEAR	WITH CREEP 17-45T; <=51782 0.0000(lbs); 0.000
150.	3135121673	[1]	GEAR	WITH CREEP 17-45T; =>51783 1.5400(lbs); 0.700
160.	3135121690	[3]	BEARING NEEDLE	WITH CREEP 0.0440(lbs); 0.020
170.	3135121550	[2]	WASHER	WITH CREEP 0.0044(lbs); 0.002
