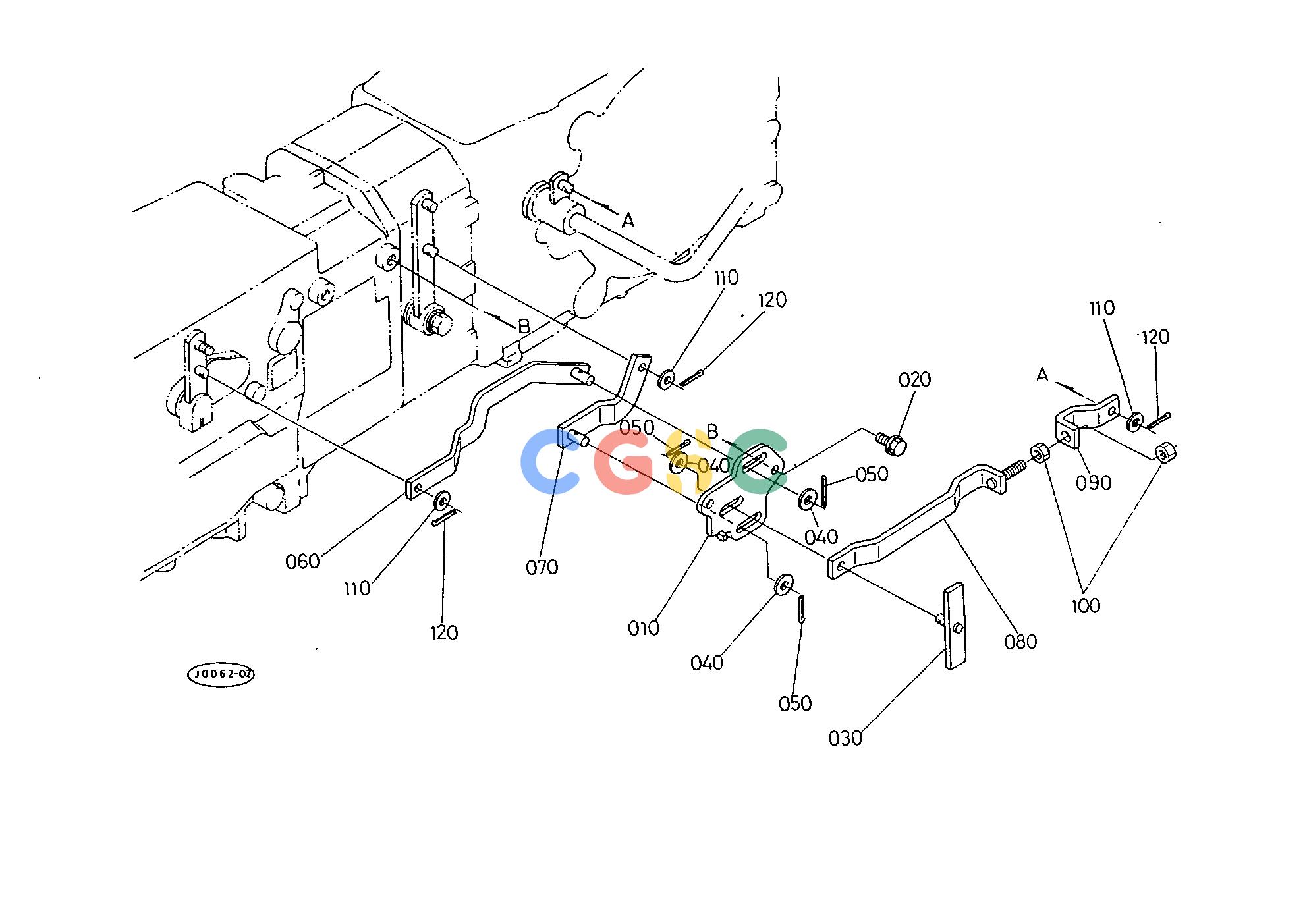

久保田零件查询T06700 SPEED CHANGE INTERLOCK SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243024840
|
[1] |
PLATE INTERLOCKER
|
0.4290(lbs); 0.195
|
| 020. |
0177451018
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 030. |
3243024890
|
[1] |
INTERLOCKER
|
0.1980(lbs); 0.090
|
| 040. |
0401150100
|
[3] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 050. |
0551150318
|
[3] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 060. |
3243024860
|
[1] |
ROD MAIN S-CHANGE
|
0.5720(lbs); 0.260
|
| 070. |
3242024850
|
[1] |
ROD SHUTTLE
|
0.2640(lbs); 0.120
|
| 080. |
3242024870
|
[1] |
ROD AUX.S-CHANGE
|
0.5500(lbs); 0.250
|
| 090. |
3243024880
|
[1] |
ROD AUX.S-CHANGE
|
0.1540(lbs); 0.070
|
| 100. |
0217650100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
0401250080
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 120. |
0551150215
|
[3] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
