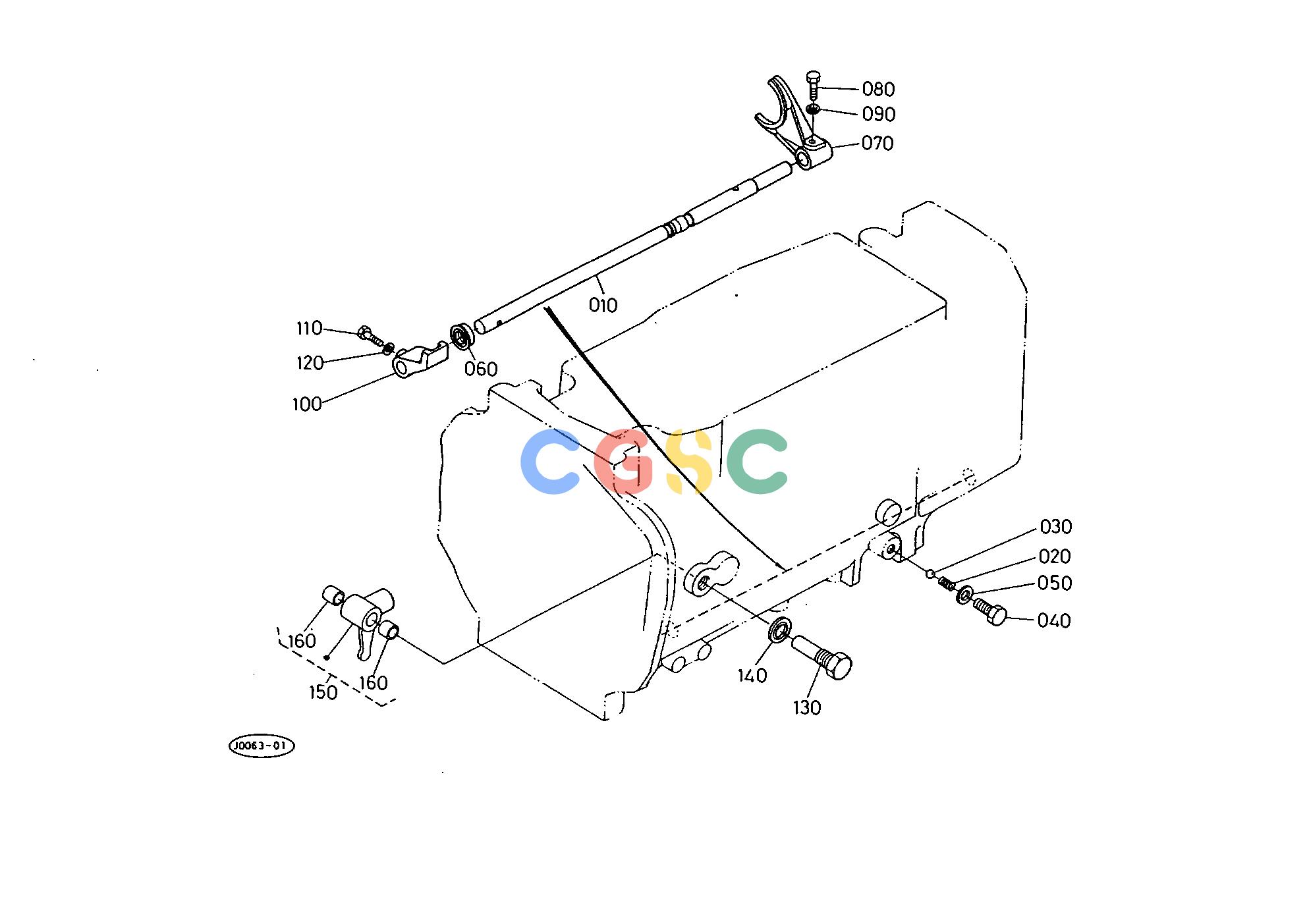

久保田零件查询T06801 PTO GEAR SHIFT FORK (DC) SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135123620
|
[1] |
ROD FORK LOWER
|
1.1000(lbs); 0.500
|
| 020. |
6258118230
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 030. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 040. |
0117351020
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 050. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 060. |
3135123530
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 070. |
3135123660
|
[1] |
FORK SHIFT REAR
|
0.3740(lbs); 0.170
|
| 080. |
3135123570
|
[1] |
BOLT FORK LOCK
|
0.0154(lbs); 0.007
|
| 090. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 100. |
3135123682
|
[1] |
SHIFTER LOWER
|
0.2860(lbs); 0.130
|
| 110. |
3135123570
|
[1] |
BOLT FORK LOCK
|
0.0154(lbs); 0.007
|
| 120. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 130. |
3135123740
|
[1] |
SHAFT FULCRUM
|
0.1980(lbs); 0.090
|
| 140. |
0471701600
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 150. |
3135123760
|
[1] |
COMP.HOLDER FORK ROD
|
0.3410(lbs); 0.155
|
| 160. |
3135117320
|
[2] |
BUSH
|
0.0000(lbs); 0.000
|
| 160. |
0851101412
|
[2] |
BUSH
|
0.0088(lbs); 0.004
|
