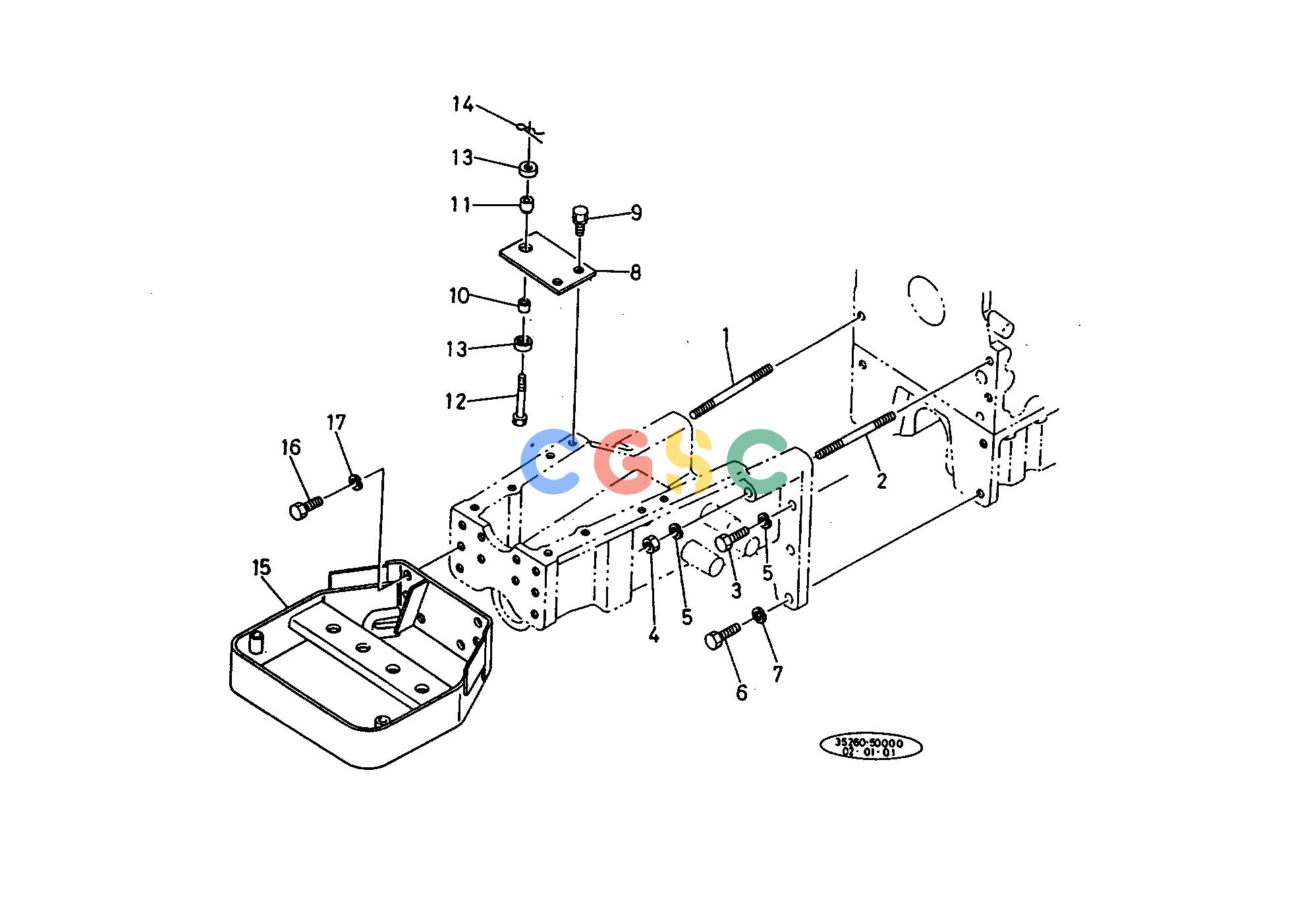

久保田零件查询028000 BUMPER BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526013630
|
[1] |
STUD
|
0.1760(lbs); 0.080
|
| 002. |
3426013640
|
[1] |
STUD
|
0.1628(lbs); 0.074
|
| 003. |
0117351035
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 004. |
3730014190
|
[2] |
NUT
|
0.0198(lbs); 0.009
|
| 005. |
0451250100
|
[3] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 006. |
0117351235
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 007. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
3420013750
|
[2] |
SUPPORT RADIATOR
|
0.5104(lbs); 0.232
|
| 009. |
0113051020
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 010. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 011. |
1511172190
|
[2] |
CUSHION
|
0.0352(lbs); 0.016
|
| 012. |
1510872380
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 013. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 014. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 015. |
3511013810
|
[1] |
BUMPER
|
12.7600(lbs); 5.800
|
| 016. |
0117351230
|
[4] |
BOLT
|
0.0814(lbs); 0.037
|
| 017. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
