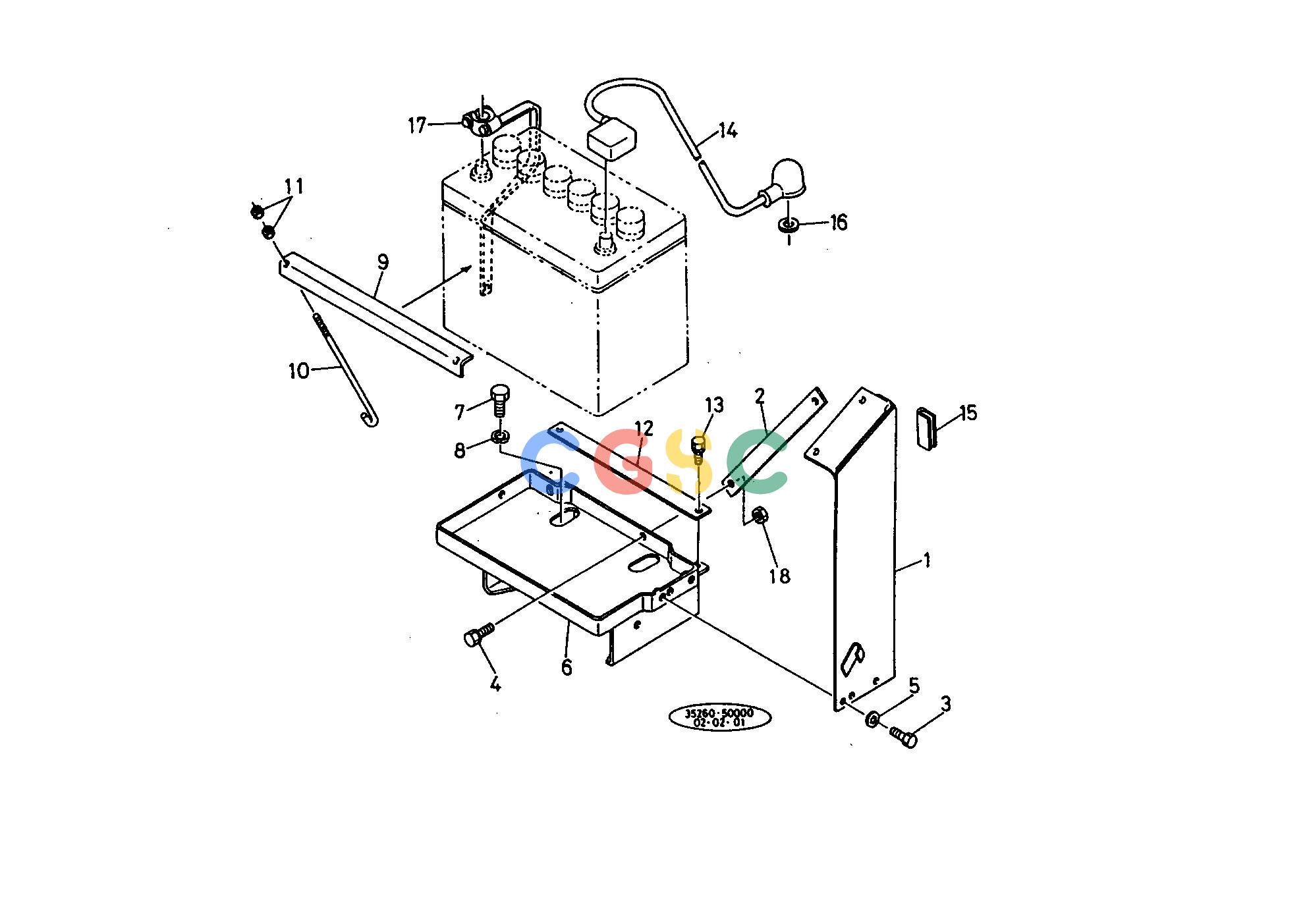

久保田零件查询029000 BATTERY SUPPORT BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3517013910
|
[1] |
SUPPORT AIR CLEANER
|
1.4300(lbs); 0.650
|
| 002. |
3526013920
|
[1] |
STAY AIR CLEANER SUP
|
0.1540(lbs); 0.070
|
| 003. |
0115050812
|
[2] |
BOLT
|
0.0198(lbs); 0.009
|
| 004. |
0112050816
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 005. |
0441150080
|
[2] |
WASHER LOCK TOOTHED
|
0.0022(lbs); 0.001
|
| 006. |
3526033210
|
[1] |
SUPPORT BATTERY
|
7.0400(lbs); 3.200
|
| 007. |
0117051018
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 008. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 009. |
3220033270
|
[1] |
RETAINER BATTERY
|
0.4796(lbs); 0.218
|
| 010. |
3415033290
|
[2] |
BOLT HOOK
|
0.1210(lbs); 0.055
|
| 011. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 012. |
3526033280
|
[1] |
PLATE
|
0.0220(lbs); 0.010
|
| 013. |
0102050610
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 014. |
3722033330
|
[1] |
CORD BATTERY
|
0.0000(lbs); 0.000
|
| 015. |
3715013920
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 016. |
3415033350
|
[1] |
WASHER
|
0.0220(lbs); 0.010
|
| 017. |
3722033380
|
[2] |
CORD EARTH
|
0.4620(lbs); 0.210
|
| 018. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
