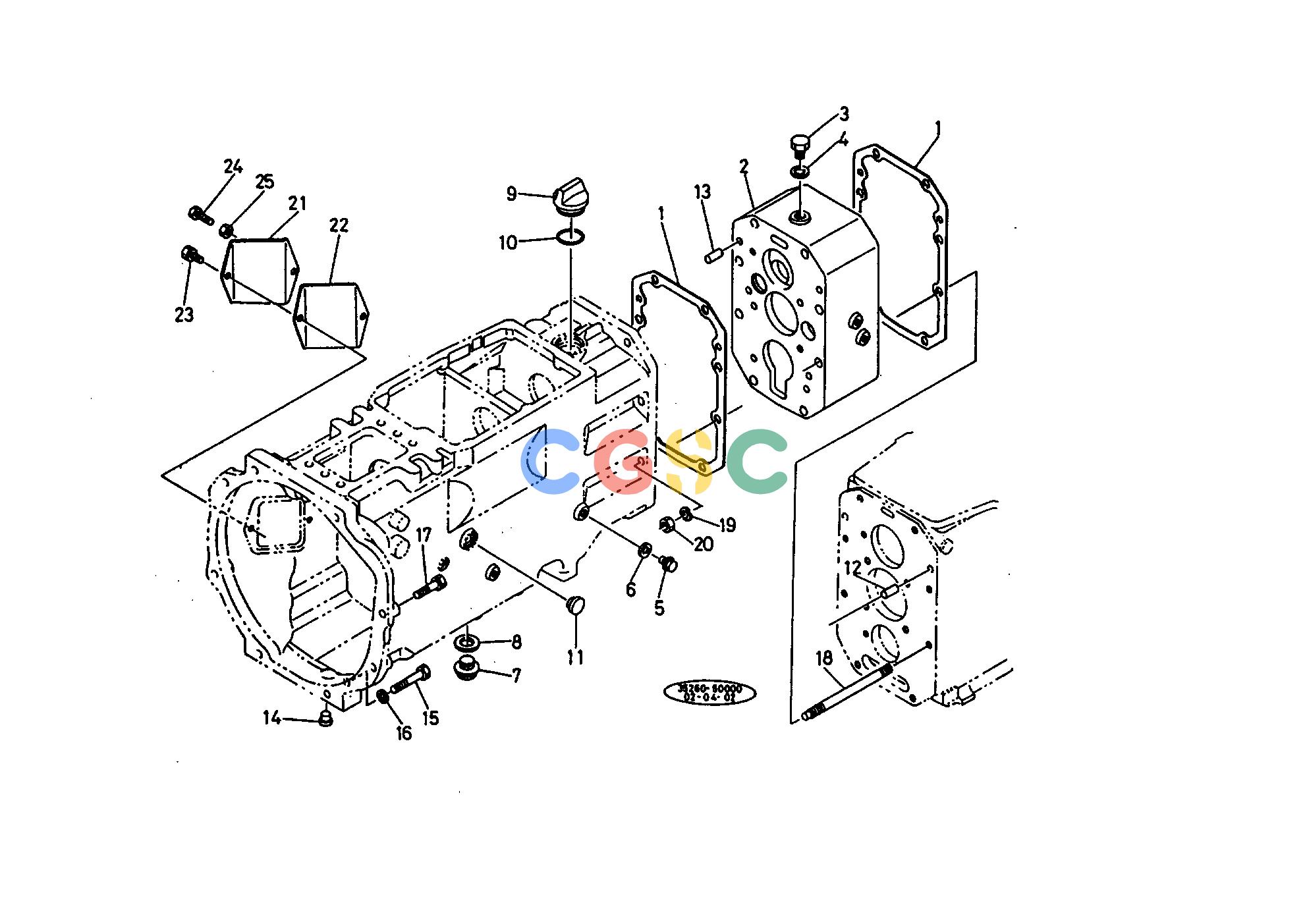

久保田零件查询031000 MID CASE BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
816 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534014140
|
[2] |
GASKET
|
0.0220(lbs); 0.010
|
| 002. |
3526021153
|
[1] |
CASE MID
|
26.9500(lbs); 12.250
|
| 003. |
0631145030
|
[1] |
PLUG
|
0.1320(lbs); 0.060
|
| 004. |
0471701700
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 005. |
0631125010
|
[1] |
PLUG
|
0.0308(lbs); 0.014
|
| 006. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 007. |
3415014260
|
[1] |
PLUG DRAIN
|
0.2200(lbs); 0.100
|
| 008. |
0471702150
|
[1] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 009. |
3843021410
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
| 010. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 011. |
3824014210
|
[1] |
GAUGE OIL
|
0.0220(lbs); 0.010
|
| 012. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 013. |
0501201022
|
[2] |
PIN STRAIGHT
|
0.0308(lbs); 0.014
|
| 014. |
3221027580
|
[6] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 015. |
0117351065
|
[7] |
BOLT
|
0.0880(lbs); 0.040
|
| 016. |
0451250100
|
[7] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 017. |
0113351040
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 018. |
3526014180
|
[3] |
STUD
|
0.3080(lbs); 0.140
|
| 019. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 020. |
3534027360
|
[8] |
NUT
|
0.0330(lbs); 0.015
|
| 021. |
3415014160
|
[1] |
COVER HOUSING
|
0.3300(lbs); 0.150
|
| 022. |
3415014170
|
[1] |
GASKET HOUSING
|
0.0660(lbs); 0.030
|
| 023. |
0112050816
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 024. |
0115050825
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 025. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
