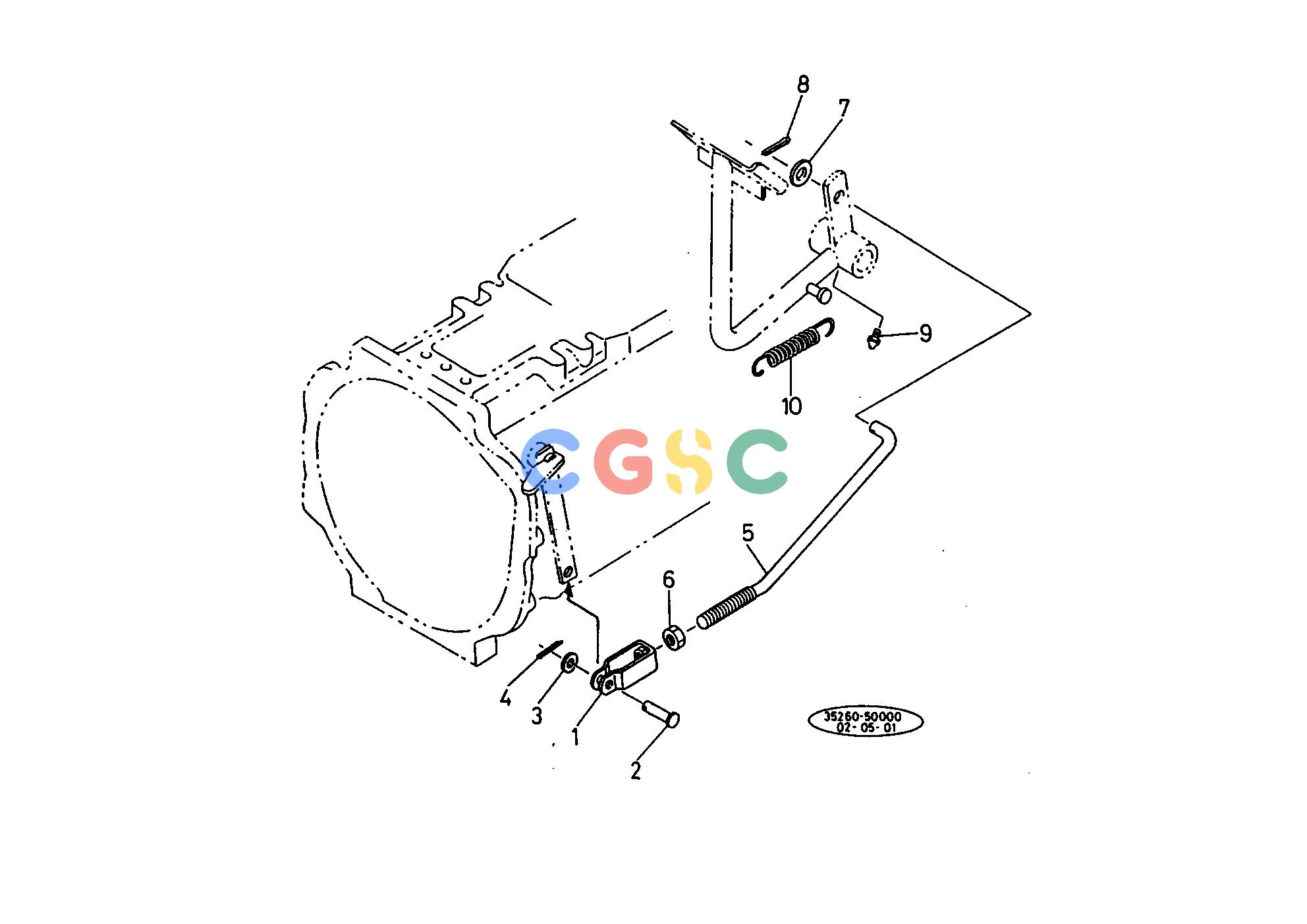

久保田零件查询032000 CLUTCH ROD BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3415015630
|
[1] |
JOINT FORKED
|
0.2090(lbs); 0.095
|
| 002. |
0511250822
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 003. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 004. |
0551150220
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 005. |
3526015640
|
[1] |
ROD CLUTCH
|
0.4510(lbs); 0.205
|
| 006. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 007. |
0401350120
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 008. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 009. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 010. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
