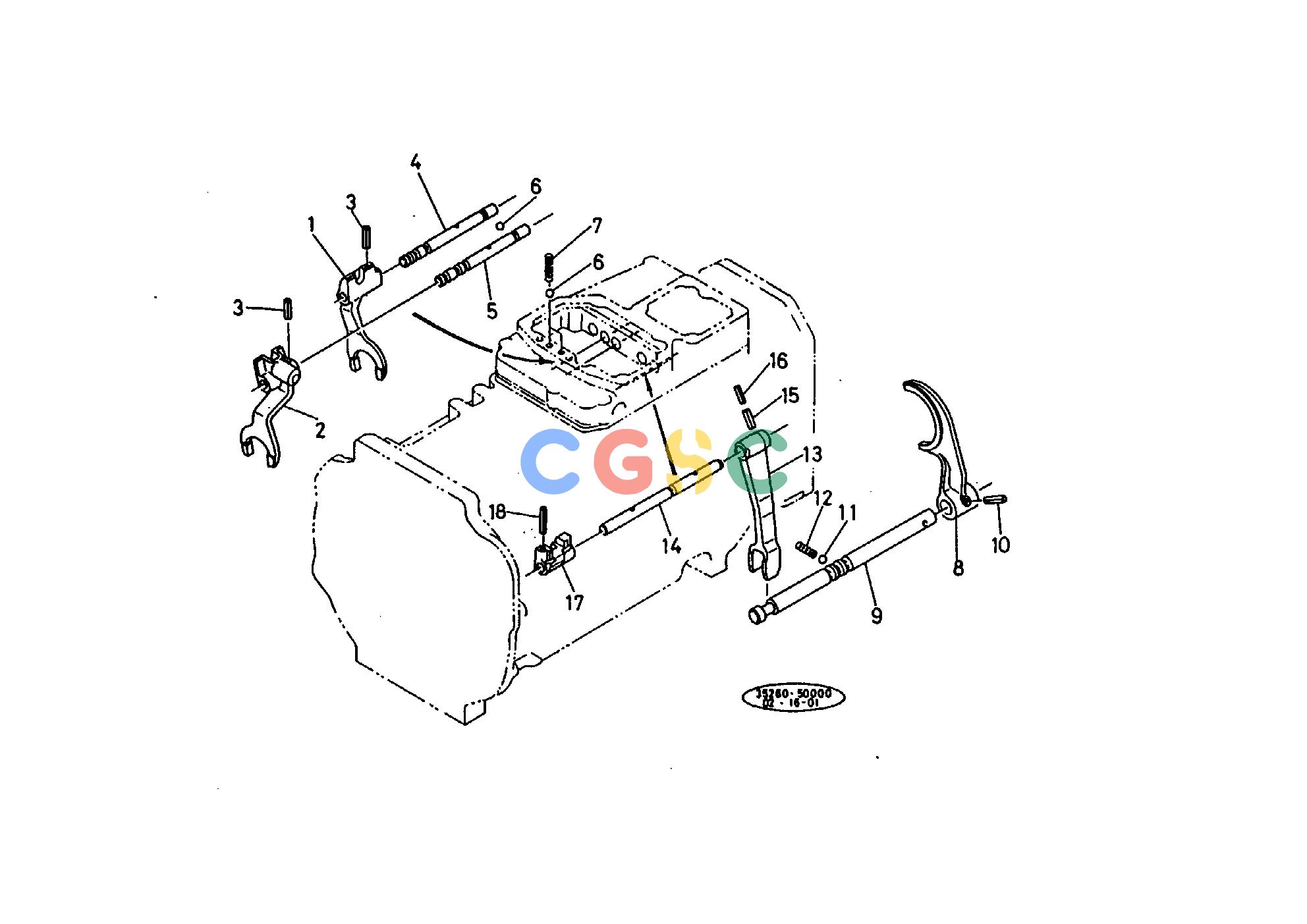

久保田零件查询043000 SPEED CHANGE SYSTEM 1 BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
482 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526023510
|
[1] |
FORK SHIFT
|
0.4620(lbs); 0.210
|
| 002. |
3530523520
|
[1] |
FORK SHIFT
|
0.6160(lbs); 0.280
|
| 003. |
0541100420
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 004. |
3715023540
|
[1] |
ROD FORK
|
0.2640(lbs); 0.120
|
| 005. |
3715023550
|
[1] |
ROD FORK
|
0.2640(lbs); 0.120
|
| 006. |
0771501605
|
[3] |
BALL
|
0.0066(lbs); 0.003
|
| 007. |
6223118530
|
[2] |
SPRING STOPPER
|
0.0440(lbs); 0.020
|
| 008. |
3526023530
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 009. |
3526023570
|
[1] |
ROD FORK
|
0.7700(lbs); 0.350
|
| 010. |
0541100528
|
[1] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 011. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 012. |
6223118530
|
[1] |
SPRING STOPPER
|
0.0440(lbs); 0.020
|
| 013. |
3526023310
|
[1] |
LEVER REVERSE
|
0.6930(lbs); 0.315
|
| 014. |
3843024770
|
[1] |
ROD FORK
|
0.4070(lbs); 0.185
|
| 015. |
0541100420
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 016. |
0541102520
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 017. |
3526023320
|
[1] |
HOLDER FORK ROD
|
0.3630(lbs); 0.165
|
| 018. |
0541100436
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
